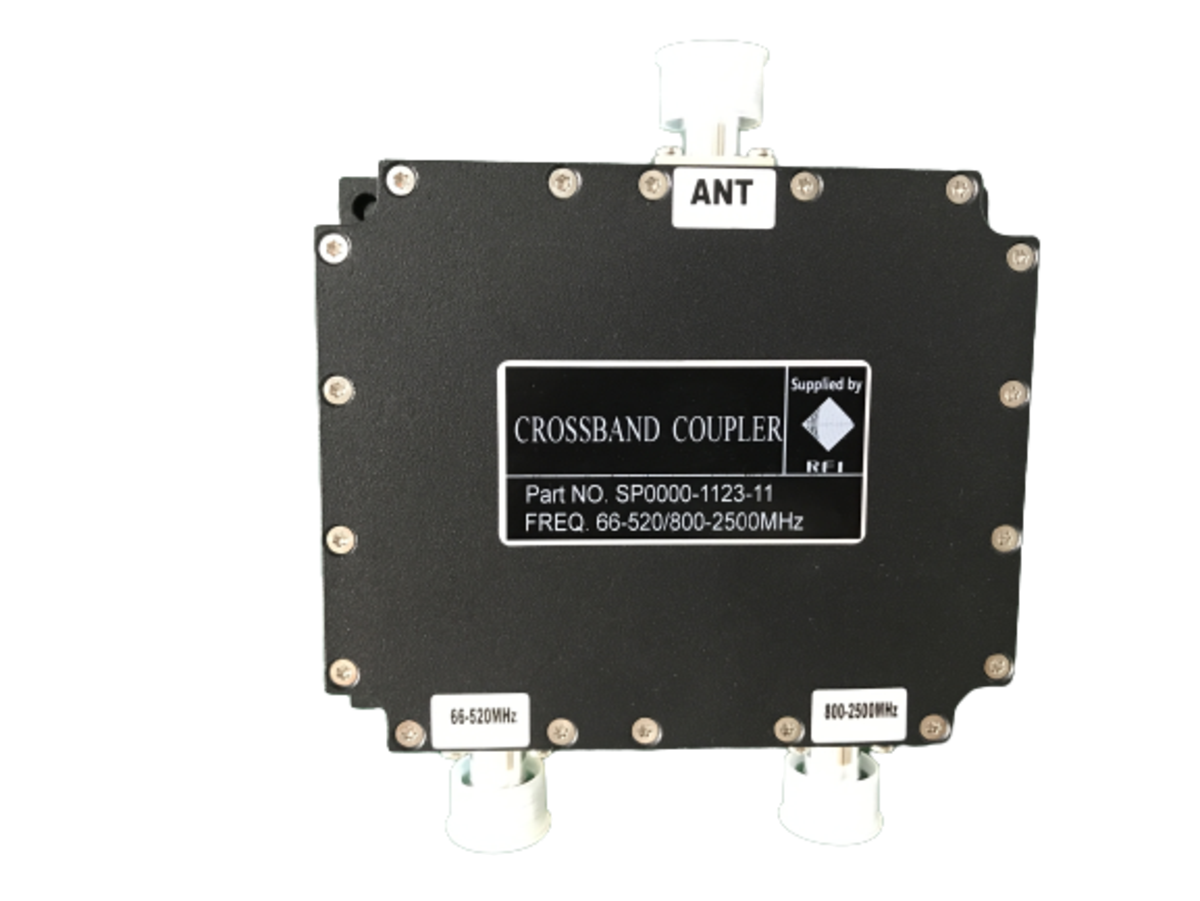

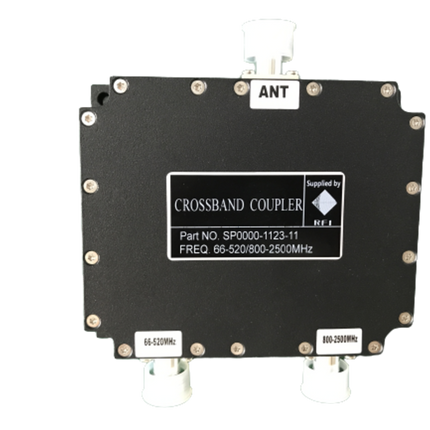

RFI SP0000-1123-11 Crossband Coupler, 66-520 and 800-2500 MHz, 50W, N-Female

    RFI SP0000-1123-11 Crossband Coupler, 66-520 and 800-2500 MHz, 50W, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      168018941
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      SP0000-1123-11
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Crossband Coupler 66-520 and 800-2500 MHz; 50W, N(F), ideal for low and medium power applications requiring VHF, FM Broadcast or UHF signals

      $718.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      RFI Crossband Coupler 66-520 and 800-2500 MHz; 50W N(F)

      Features:

      These models feature small size, low insertion loss, high isolation between bands and excellent temperature stability. Silver-plated connectors are utilised to improve multi-carrier Passive Intermodulation (PIM) performance. Models are available to suit other frequency band combinations, or to provide cascaded combining of multiple frequency bands from 66 MHz to 2500 MHz thereby providing for the combining or separation of VHF, UHF, Cellular and WLAN services.
      • Compact Package Size
      • Ideal for Radiating Cable Systems
      • Suits Mobile Applications
      • Rugged Construction Style

      Documents:

      RFI SP0000-1123-11 Crossband Coupler - Datasheet

      Product Specifications

      MPN SP0000-1123-11
      Brands RFI
      Component type Crossband Coupler
      Connector N(F)
      Construction Milled aluminium, painted black
      Frequency mhz 66-520, 800-2500
      Height 2.4
      Insertion loss db 0.6 (typ)
      Isolation 40dB (min), 50 dB (typ)
      Length 13.1
      Power rating watts 50
      Return loss db 20dB (typ), 18dB (min)
      Temperature range -20 to +65?C / -4 to +149?F
      Width 11.5
