RFI CSM700 Compact 4G+5G M2M/IoT Antenna - 698-3800 MHz

    RFI CSM700 Compact 4G+5G M2M/IoT Antenna - 698-3800 MHz

      Product form
      Brand:
      RFI
      Item ID:
      168014145
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      2m FME(F) (red heat sink): CSM700-2M-F-R
      5m SMA(M): CSM700-5M-SMA
      7m no connector: CSM700-7M-NC
      1.25m FME(F): CSM700-1.25M-FME
      1.25m SMA(M): CSM700-1.25M-SMA
      2m SMA(M): CSM700-2M-SMA
      5m no connector: CSM700-5M-NC
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

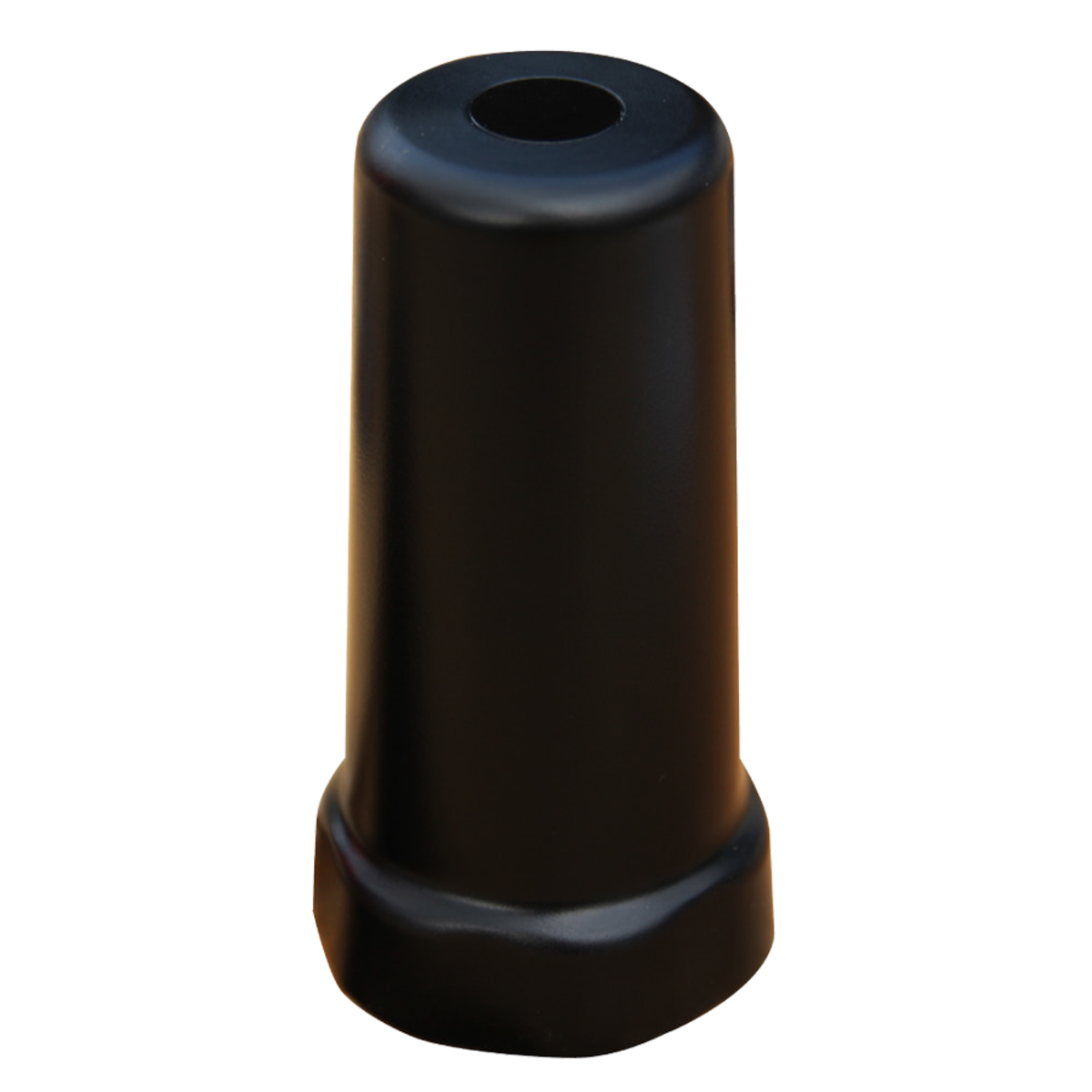

      CSM700 is a compact, omni-directional, ground-independent antenna from RFI designed for M2M/IoT, fixed data and mobile applications. It operate over 698 MHz to 3800 MHz frequency range with a maximum antenna gain of 5 dBi. It's IP65 rated and can be used for both indoor and outdoor applications. This model CSM700-5M-NC comes fitted with a 5m cable with no connector. This gives you an option to install a connector according to your requirement.

      Available

      $85.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        CSM700 is a compact, omni-directional, ground-independent antenna from RFI designed for M2M/IoT, fixed data and mobile applications. It operate over 698 MHz to 3800 MHz frequency range with a maximum antenna gain of 5 dBi. It's IP65 rated and can be used for both indoor and outdoor applications.

        Product Features:

        • Wide Frequency Range: Exceptional coverage from 698 MHz to 3.8 GHz for optimal connectivity.
        • Durable Polycarbonate Radome: Ideal for outdoor use, providing longevity and robust performance.
        • Attractive Low-Profile Design: Maximizes overhead clearance while maintaining an appealing aesthetic.
        • Stud Mount with Integrated Rubber O-ring Seal: Facilitates easy field installation and enhances weather resistance.
        • Ingress Protection (IP65): Shields against environmental factors, ensuring durability in challenging conditions.
        • Various configurations available. More cable/connector configurations available upon request.

        Applications:

        This antenna is widely on transport systems, ticketing systems, ATM machines and vending machines.

        Installation:

        The antenna can be installed on a 16 mm stud mounting hole.

        In the Box:

        • 1x selected RFI CSM700 Compact Antenna

        Documents:

        RFI CSM700 Antenna - Datasheet

        Product Specifications

        Height 5
        Length 9.5
        Width 8
        Antenna application Terminal Antenna
        Antenna cable type RG58
        Antenna port connectors No connector
        Antenna type Ground Independent
        Brands RFI
        Cable and connector 5.0m RG58 with No Connector
        Cable length m 5
        Construction UV Stable Black Polycarbonate Radome
        Coverage type Omni-directional
        Frequency band Multi-Band 700-2700 MHz
        Frequency mhz 698-960|1710-2710|2300-2700|3500-3800
        Installation type Internal or external mounting
        Low pim No
        Max frequency mhz 3800
        Max gain dbd dbi 5
        Mimo support No
        Min frequency mhz 698
        Min gain dbd dbi 2
        Mount supported Stud mount
        Mount supported detailed Stud mount
        No of antenna ports 1
        Nominal gain dbi 2 / 3.5 / 5 / 5
        Packaging Clear Bag
        Polarisation Vertical
        Power w 10
        Radome diameter mm 50mm
        Technologies supported 4G, 5G
        Tuned bandwidth Full
        Vswr <2.0:1
        Variant mpn CSM700-2M-F-R
        Product category Antennas
