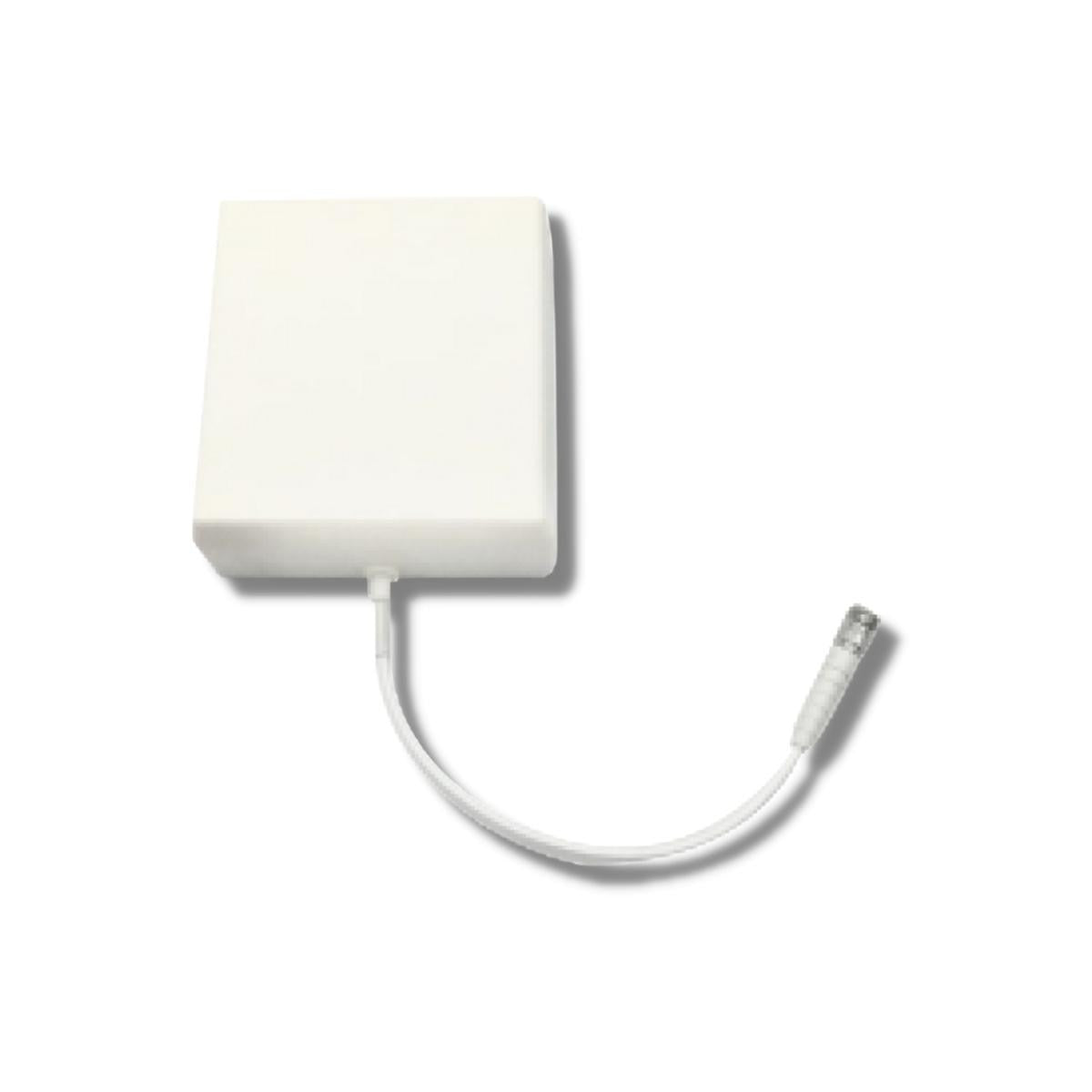

RFI DAS6938-SDP150-N SISO Directional Panel Antenna, 698-3800 MHz, N-Female

    RFI DAS6938-SDP150-N SISO Directional Panel Antenna, 698-3800 MHz, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      168014153
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      DAS6938-SDP150-N
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

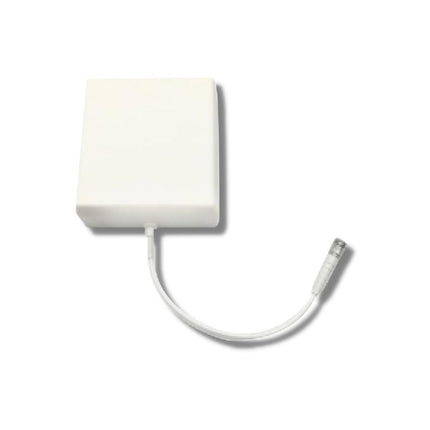

      RFI DAS6938-SDP150-N Directional Panel Antenna is Low PIM SISO Antenna - 698-960 MHz; 1710-2700 MHz; covers both 4G and 5G; indoor/outdoor.

      Available

      $114.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI DAS6938-SDP150-N Directional Panel Antenna; Low PIM, DAS range is a high-performance, PIM-rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor Omni directional solutions to suit indoor, and outdoor requirements, with the optional low-profile aesthetic. The multi-band capability of each offering covers both 4G and 5G bands including 690-960 MHz, 1710-2700 MHz & 3300-3800 MHz, therefore eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications.

        Features:

        • Low Profile compact form factor
        • IP55 rated
        • Coverage across multiple cellular and WLAN bands
        • Ideal for DAS deployment for in-building coverage solutions
        • Excellent - 150 dBc PIM performance
        • 1 x 300 mm tail terminated with N-type female connector

        Documents:

        RFI DAS6938-SDP150-N Antenna - Datasheet

        Product Specifications

        MPN DAS6938-SDP150-N
        Antenna application DAS Antenna
        Antenna cable type LMR400, LMR600
        Antenna features PIM Rated, Directional
        Antenna port connectors N (F)
        Antenna type Directional SISO
        Brands RFI
        Cable length m 0.3
        Connector N(F)
        Construction UV resistant White ASA, IP55
        Coverage type Directional
        Frequency band Multi-Band 700-3800 MHz
        Height 8
        Horizontal beamwidth 90 / 80 / 70
        Ingress protection ip IP55
        Installation type Internal mounting
        Length 23
        Low pim Yes
        Max frequency mhz 3800
        Max gain dbd dbi 7
        Mimo support No
        Min frequency mhz 698
        Min gain dbd dbi 5
        Mount supported Stud mount
        Mount supported detailed Stud mount
        No of antenna ports 1
        Nominal gain dbi 39208
        Pim 3rd 2x20 w dbc -150
        Power w 50
        Technologies supported 4G
        Technology type UMTS, LTE
        Termination Single 300mm tail with N (F) connector
        Vertical beamwidth 60 / 55 / 50
        Vswr <1.8:1 / <1.5:1 / <1.8:1
        Width 16
