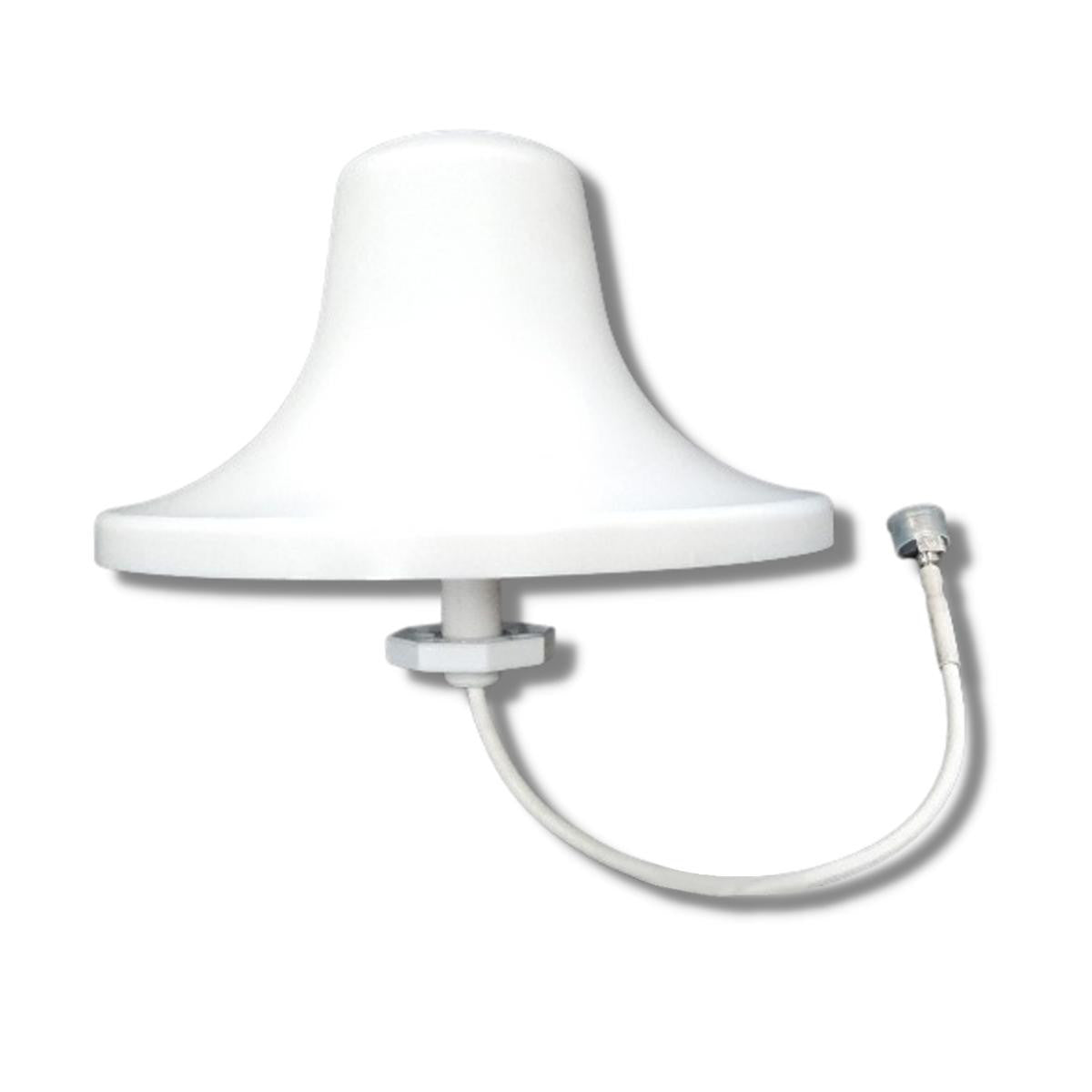

RFI DAS6938-SOC150-N SISO Omni Ceiling Mount Antenna, 698-3800 MHz, N-Female

    RFI DAS6938-SOC150-N SISO Omni Ceiling Mount Antenna, 698-3800 MHz, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      168014154
      MPN:
      DAS6938-SOC150-N
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI DAS6938-SOC150-N Omni Ceiling Antenna - 698-960 MHz; 1710-3800 MHz covers both 4G and 5G bands; ideal for all fixed in-building coverage applications.

      Sold-out

      $98.98

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI DAS6938-SOC150-N Omni Ceiling Antenna's Low PIM DAS range is a high-performance, PIM-rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor Omni directional solutions to suit indoor, and outdoor requirements, with the optional low-profile aesthetic. The multi-band capability of each offering covers both 4G and 5G bands including 690-960 MHz, 1710-2700 MHz & up to 3800 MHz, therefore eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications.

        Features:

        • Low Profile compact form factor
        • IP45 rated
        • Coverage across multiple cellular and WLAN bands
        • Ideal for DAS deployment for in-building coverage solutions
        • Excellent -150 dBc PIM performance
        • 1 x 300 mm tail terminated with N-type female connector

        Documents:

        RFI DAS6938-SOC150-N Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length 18
        Width 18
        Height 18
        Antenna Application DAS Antenna
        Antenna Cable Type LMR400, LMR600
        Antenna Features Omnidirectional, PIM Rated
        Antenna Port Connectors N (F)
        Antenna Type Omni SISO
        Cable Length (m) 0.3
        Connector N(F)
        Construction UV resistant White ASA, IP45
        Coverage Type Omni-directional
        Frequency Band Multi-Band 700-3800 MHz
        Ingress Protection (IP) IP45
        Installation Type Internal mounting
        IP Rating IP45
        Low PIM Yes
        Max Frequency (MHz) 3800
        Max Gain (dBd/dBi) 5
        MIMO Support No
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) 2
        Mount Supported Stud mount
        Mount Supported - Detailed Stud mount
        No. of Antenna Ports 1
        Nominal Gain [dBi] 2 / 3 / 4 / 5
        PIM (3rd, 2 x 20 W) dBc -150
        Power [W] 50
        Technologies Supported 4G
        Technology Type UMTS, LTE
        Temperature Range [°C] -40 ~ 70
        Termination Single 300mm tail with N (F) connector
        Vertical Beamwidth 80 / 70 / 60 / 50
        VSWR <1.8:1 / <1.5:1 / <1.8:1
