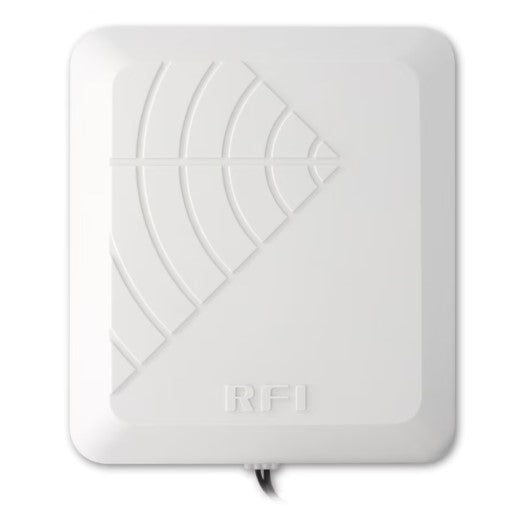

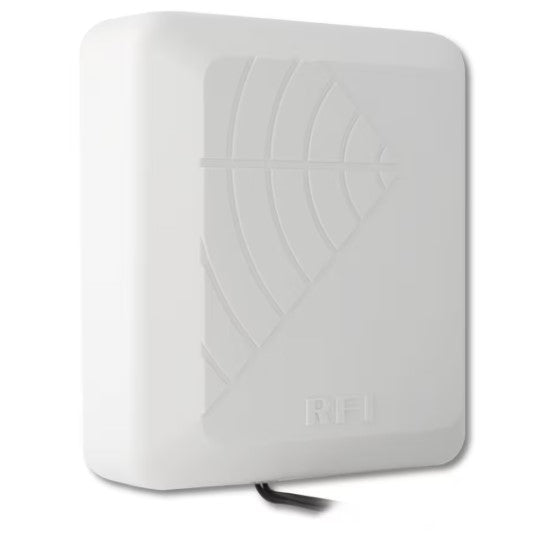

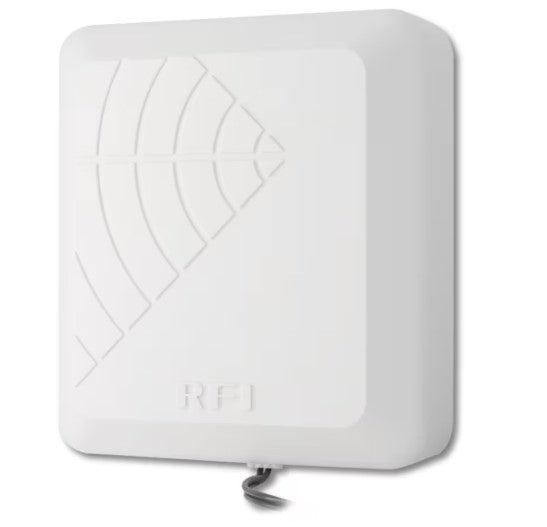

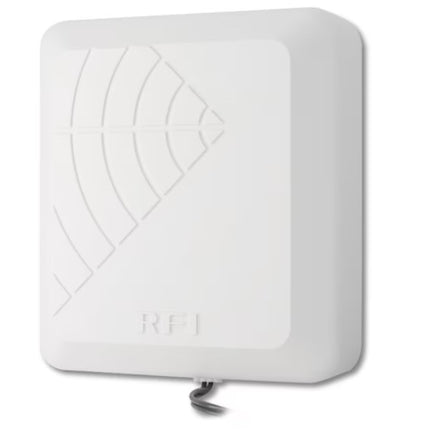

RFI FWA-XPOL 5G Directional Panel Antenna, 2x2 MIMO, 698-3800 MHz, 2x SMA-Male, 10m Cable

RFI FWA-XPOL 5G Directional Panel Antenna, 2x2 MIMO, 698-3800 MHz, 2x SMA-Male, 10m Cable

Available

Brand:
Item ID:
168069191
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
FWA-XPOL-MDP-11-10m-SMA(M)
Send Request for Quote (RFQ) Discount Offers
RFI's new FWA-XPOL Directional Panel Antenna is specifically designed for Fixed Wireless Access (FWA) of cellular networks. The antenna offers the narrowest azimuth beamwidth in its form factor and has sidelobes typically less than 20dB for 1710-2700 and 3400-3800 MHz. Ideal for areas with high interference.
Regular price $429.50
Regular price $0.00 Sale price $429.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI's new FWA-XPOL 5G Directional Panel Antenna is specifically designed for Fixed Wireless Access (FWA) of cellular networks. This cross polarized dipole based DC-grounded antenna supports LTE & 5G technologies over a frequency range of 698 to 3800 MHz. This frequency support enabled the antenna to be compatible with all operators in Australia. The antenna supports 2x2 MIMO operation which increased data speed significantly compared to SISO antennas. Twin HFT195 cable each 10m in length and terminated with an SMA-Male connector fitted with this antenna. Other available cable & connector options are:
  • 30cm Black RG141 2 x Integrated N female connectors
  • 30cm Black RG141 2 x Integrated 4.3-10 female connectors
FWA-XPOL antenna can be mounted on a pole. The antenna offers the narrowest azimuth beamwidth in its form factor with sidelobes typically less than 20dB for 1710-2700 and 3400-3800 MHz.

Key Features:

  • Supports 2x2 MIMO operation on LTE & 5G
  • Covers 698-960, 1710-2700 and 3400-3800 MHz
  • Azimuth beamwidth of 26 degree in 1710-2700 and 3400-3800 MHz.
  • High gain of up to 11 dBi
  • F/B > 20dB
  • Side lobe suppression < -20 dB
  • Consistent broadband performance
  • Pole mountable
  • 10m twin HFT195 cable with SMA-Male connectors

Application Areas:

FWA-XPOL panel antenna is recommended to use with cellular routers at stationary locations like houses and small offices. This antenna is ideal for high interference areas where there are multiple macro sites due to it’s narrow azimuth which ensures high SINR hence better performance. Typical scenarios include urban areas with weak cellular coverage, country areas with high signal overlap from multiple sources etc.

Electrical Specifications:

  • Frequency Range: 698-960 MHz | 1710-2700 MHz | 3400-3800 MHz
  • Gain (Peak): 8 dBi | 11 dBi | 11 dBi
  • Vertical Beamwidth: 70° | 65° | 60°
  • Azimuth Beamwidth: 70° | 28° |26°
  • VSWR: ≤ 2.0
  • Maximum Power: 50 W
  • Impedance: 50 Ω
  • Polarization: ±45°
  • DC Short: DC Ground

Mechanical Specifications:

  • Series: FWA-XPOL-MDP-11
  • Mounting: Pole Mount
  • Dimensions: 350 x 310 x 115 mm
  • Radome Material: ABS
  • Radome Color: White

Environmental Specifications:

  • Radome Material: ABS
  • Radome Color: White
  • Wind Survival: ≤ 160 km/h (with provided clamp)
  • Temperature Range: -40 to +80°C
  • Environmental Conditions: Outdoor / Indoor
  • Water Ingress Protection: IP56
  • Salt Spray Resistance: MIL-STD 810F/ASTM B117
  • Operating Relative Humidity: Up to 98%
  • Enclosure Flammability Rating: UL 94-HB
  • Impact Resistance: IK08
  • Product Safety & Environmental Compliance: Complies with CE & RoHS standards

Documents:

RFI FWA-XPOL-MDP-11 Directional Panel Antenna - Datasheet

Product Specifications

MPN FWA-XPOL-MDP-11-10m-SMA(M)
Antenna port connectors SMA (M)
Brands RFI
Cable length m 10.0
Cable type Twin HFT-195
Coverage type Directional
Height 15
Ingress protection ip IP56
Installation type External mounting
Length 40
Max frequency mhz 3800
Max gain dbd dbi 11.0
Mimo support Yes
Min frequency mhz 698
Min gain dbd dbi 8.0
Mount supported Pole mount
Mount supported detailed Pole mount
No of antenna ports 2
Power w 50.0
Technologies supported 2G, 3G, 4G, 5G
Width 35
Wind gust km h <160
