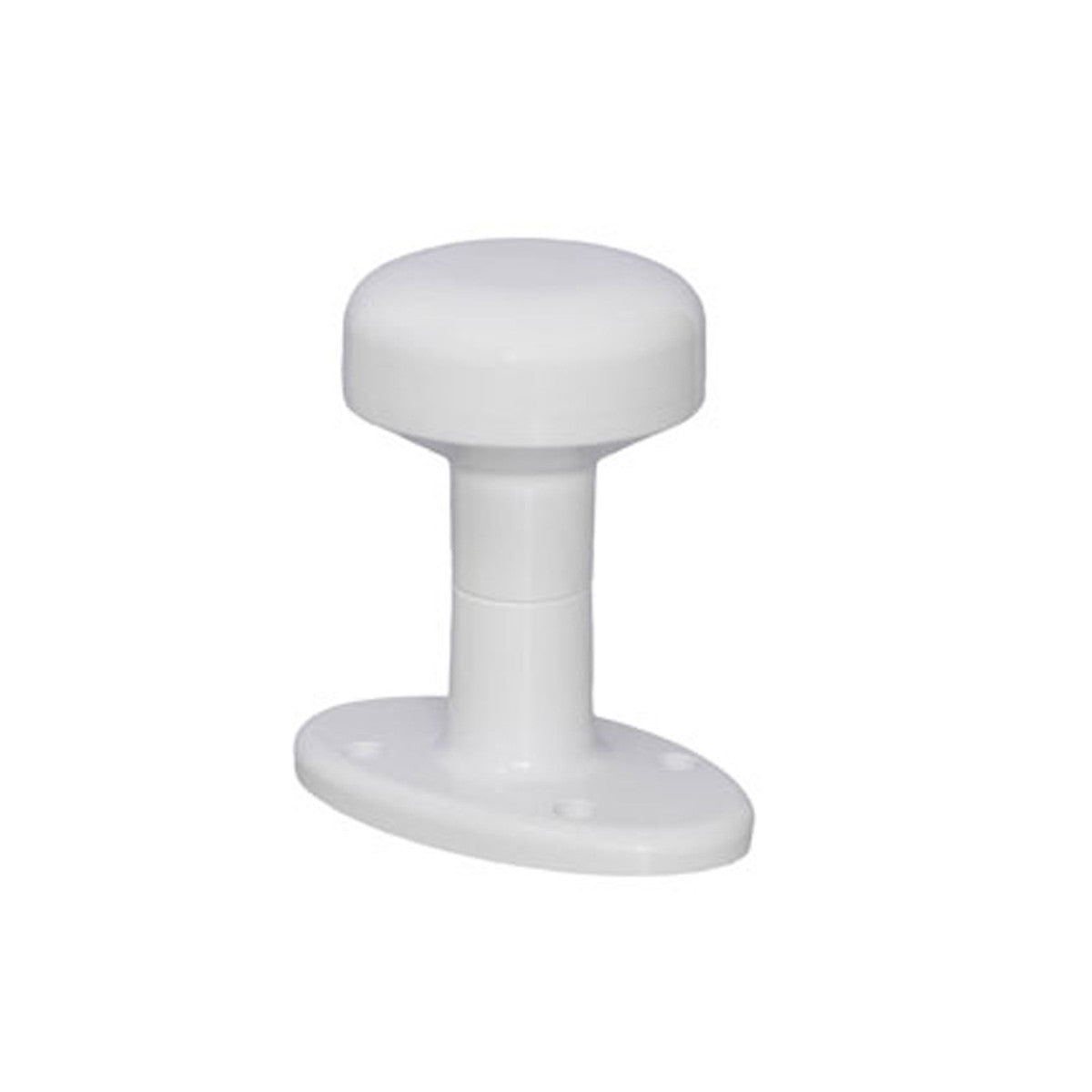

RFI GPS-MF-0-TNC Fixed Marine GPS Antenna, 1572-1610 MHz, 26 dB, TNC-Female

    RFI GPS-MF-0-TNC Fixed Marine GPS Antenna, 1572-1610 MHz, 26 dB, TNC-Female

      Product form
      Brand:
      RFI
      Item ID:
      168014216
      MPN:
      GPS-MF-0-TNC
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI GPS-MF-0-TNC GPS Marine Antenna; TNC(F) suited to moutning on a vessel or radio equipment shelters for timing applications.

      Available

      $159.74

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI GPS-MF-0-TNC GPS Marine Antenna offers high gan and excellent carrier to noise ratio performance in a GPS antenna. Suited for a vast array of applications where you need protection agaisnt the elements for reliable GPS information. Fitted with a TNC Jack in the stem, ready for the cable of your choice.

        Documents:

        RFI GPS-MF-0-TNC Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length 10
        Width 5
        Height 5
        Antenna Application Terminal Antenna, Vehicle Antenna
        Antenna Port Connectors TNC (F)
        Antenna Type Hemispherical
        Band GPS/GLONASS
        Cable And Connector TNC Jack located in the stem of the antenna
        Coverage Type Omni-directional
        Frequency [MHz] 806-890|890-960|1710-1880|1850-1990|1910-2170
        Ingress Protection (IP) IP67
        Installation Type Internal or external mounting
        Low PIM No
        Max Frequency (MHz) 1610
        Max Gain (dBd/dBi) 24
        MIMO Support No
        Min Frequency (MHz) 1572
        Min Gain (dBd/dBi) 23
        Mount Supported Screw mount
        Mount Supported - Detailed Screw mount
        No. of Antenna Ports 1
        Nominal Gain [dBi] 26dB @ 3V, 27dB @5.5V
        Technologies Supported GPS, Glonass
        Tuned Bandwidth Entire specified band @ <1.2:1 VSWR
        Tuning Supplied pre-tuned
        VSWR <1.2:1
