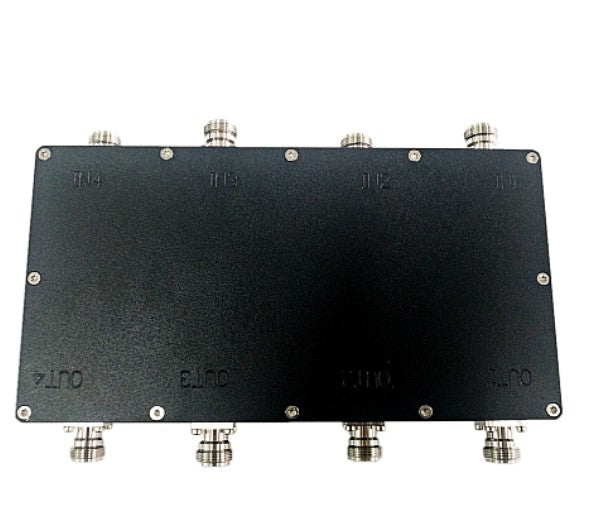

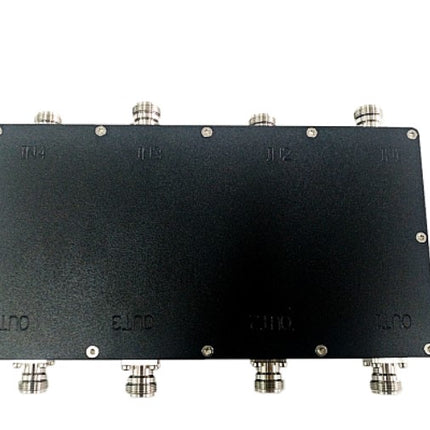

RFI SP6938-2206-4.3 Hybrid Coupler, 8 Port, 3 dB, 694-3800 MHz, 200W, 4.3-10-Female

RFI SP6938-2206-4.3 Hybrid Coupler, 8 Port, 3 dB, 694-3800 MHz, 200W, 4.3-10-Female

Available

Brand:
Item ID:
168021583
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SP6938-2206-4.3
Send Request for Quote (RFQ) Discount Offers
RFI Hybrid Coupler 8 Port 4x4 694-3800 MHz 200W; 4.3-10(F) covers all cellular bands from 698-3800MHz with a ultra low Passive Inter-Modulation
Regular price $936.00
Regular price $0.00 Sale price $936.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI Hybrid Coupler 8 Port 4x4 694-3800 MHz 200W; 4.3-10(F)

The 2x2 and 4x4 Hybrid Couplers cover all cellular bands from 694 to 3800 MHz with a low loss Passive Inter-Modulation, high Peak Instantaneous Power and high environmental IP rating. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or In-Building leaky feeder or in-building Distributed Antenna Systems. Designed to IP67, the Hybrid Coupler can be used in both indoor and outdoor applications.

Features:

  • Broadband 698-3800 MHz covering all cellular bands, including 5G
  • Low Insertion Loss
  • High Isolation (Ports 1 & 2) across full bandwidth >22 dB -Suitable for use in high power multi-carrier transmission systems
  • Manufactured to a low ? -160 dBc PIM rating (3rd Order 2x43 dBm carriers)
  • PIP Rating of 1000W
  • Average Power rating of 200W per port
  • Environmental IP 67 rating

Product Specifications

MPN SP6938-2206-4.3
Brands RFI
Component type Splitter/Combiner
Conn types all term ports 4.3-10 (F)
Connector 4.3-10 (F)
Coupled loss db 6
Finish Black - Painted
Frequency band Cellular
Height 8
Length 15
Pim 3rd 2 43 dbm dbc <160dBc
Power rating watts 200 / port
Return loss vswr >17 dB / 1.3:1
Technology type 5G, 4G, UMTS
Temperature range -40?C to +60?C / -40?F to 140?F
Width 15
