RFI ISM9-FA-SMA Folding Terminal Antenna, 902-928 MHz, 2 dBi, SMA-Male

    RFI ISM9-FA-SMA Folding Terminal Antenna, 902-928 MHz, 2 dBi, SMA-Male

      Product form
      Brand:
      Item ID:
      168016009
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      ISM9-FA-SMA

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI ISM9-FA-SMA is ISM 900 MHz folding terminal antenna (902-928 MHz). It is ideal for applications within ISM band such as LoRa and SIGFOX.

      Available

      $20.15

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI ISM9-FA-SMA ISM Antenna; 900 MHz Folding Terminal Antenna (902-928 MHz); SMA(M)

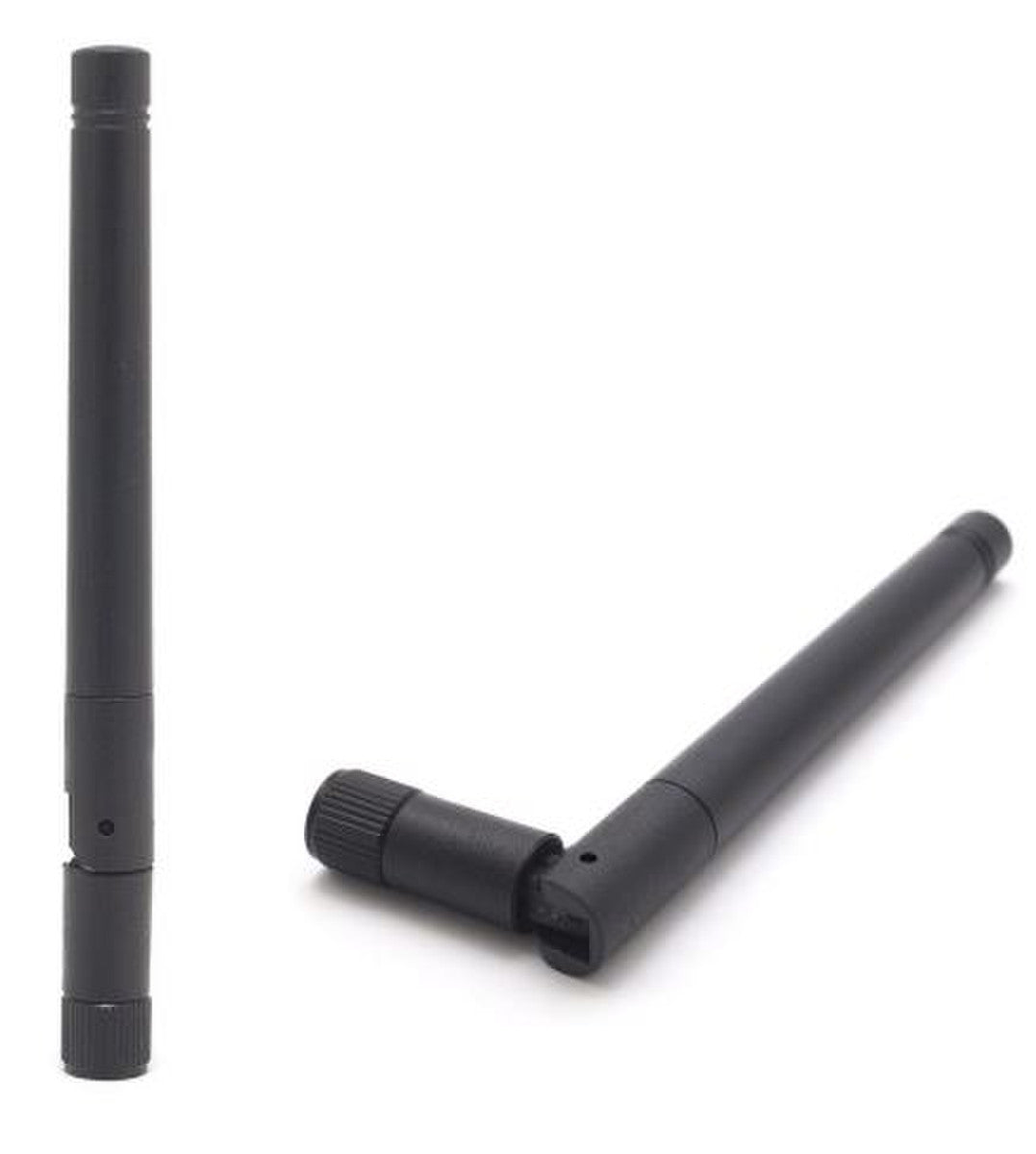

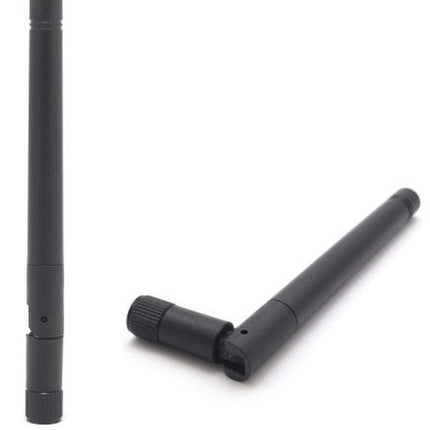

        The RFI ISM9-FA-SMA is ISM band (915 MHz) antenna, designed for optimal performance. Its unique hinged design allows for easy positioning at the perfect angle. Available with either an SMA male or SMA reverse gender connector. This antenna is perfect for applications within the ISM band, including LoRa and SIGFOX.

        Features:

        • Compact Design: With a length of only 113 mm, this antenna offers a sleek and unobtrusive profile.
        • 9 Degree Folding Hinge: The antenna's folding hinge allows for precise angle adjustment, ensuring optimal signal reception.
        • Connector Options: Choose between SMA male or SMA reverse gender connector to suit your specific needs.

        Product Specifications

        MPN ISM9-FA-SMA
        Antenna configuration SISO
        Antenna port connectors SMA (M)
        Antenna type Omni
        Band 915MHz ISM
        Brands RFI
        Connector vhf SMA Male
        Coverage type Omni-directional
        Frequency mhz 698-960|1710-2170|2300-2700
        Height 1
        Installation type Device mounting
        Length 30
        Low pim No
        Max frequency mhz 928
        Max gain dbd dbi 2
        Mimo support No
        Min frequency mhz 902
        Min gain dbd dbi 2
        Mount supported Connector mount
        Mount supported detailed Device mount
        No of antenna ports 1
        Nominal gain dbi 2
        Packaging Clear Bag
        Power w 50
        Technologies supported ISM
        Tuned bandwidth Full. No tuning required
        Vswr 2.5:1
        Whip length mm 113mm (max.)
        Width 1
