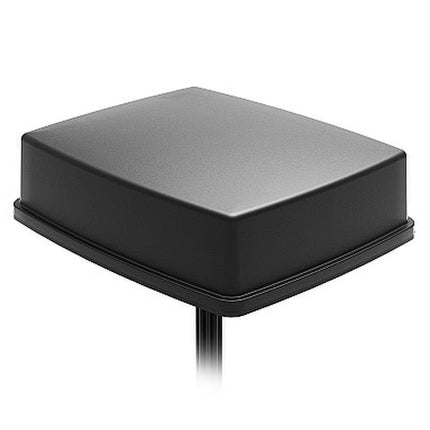

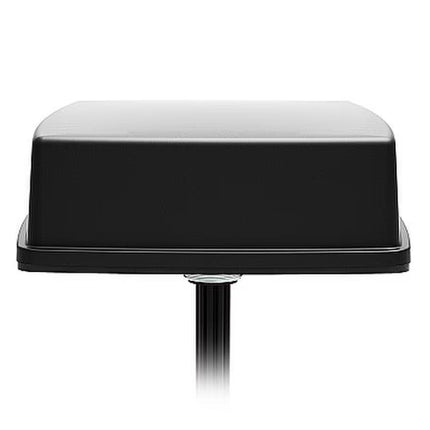

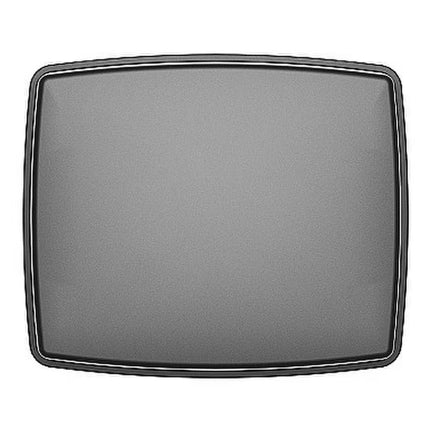

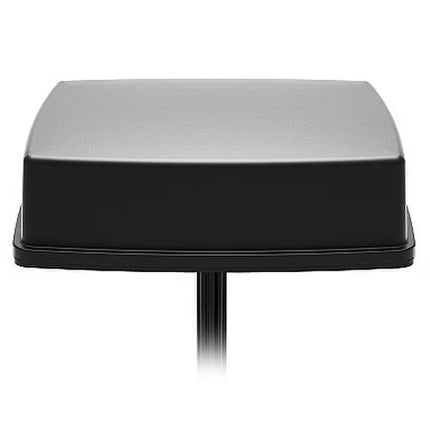

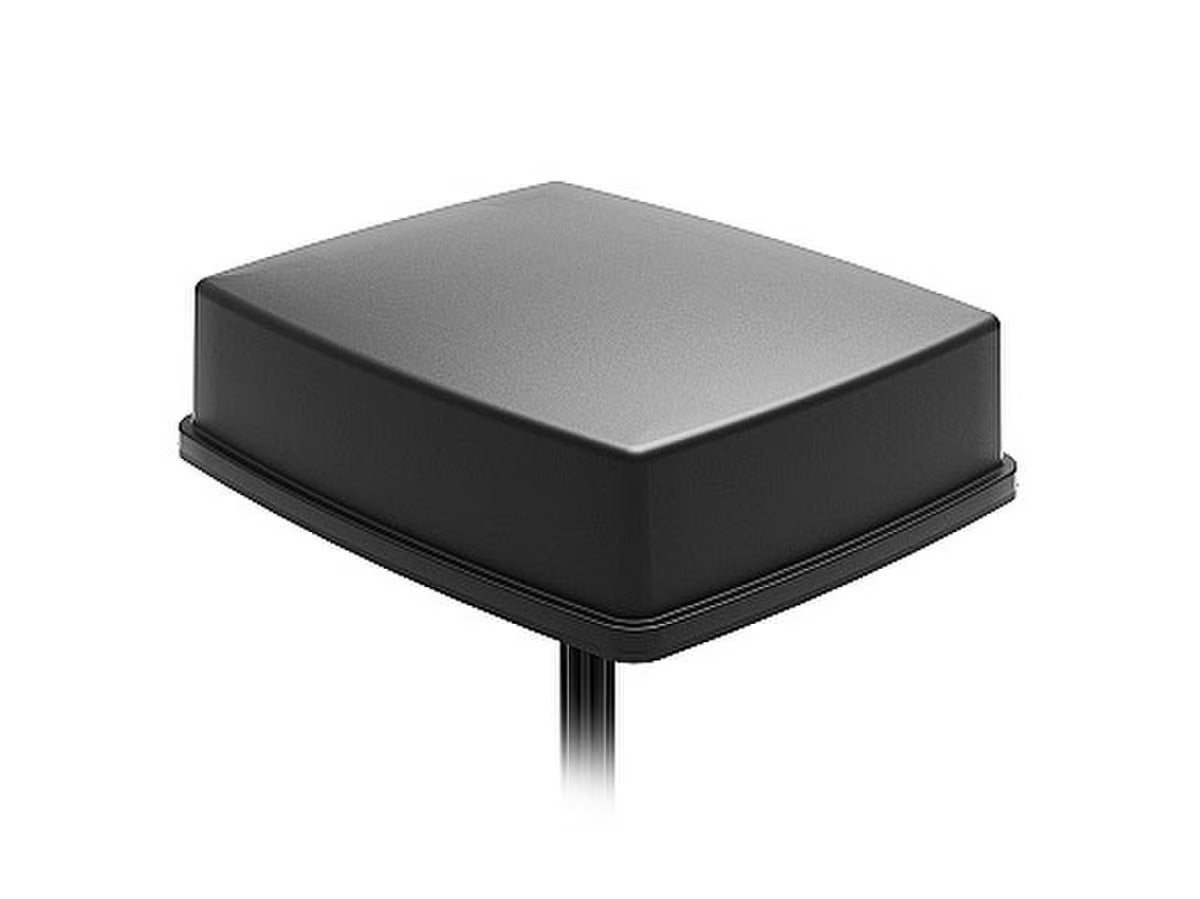

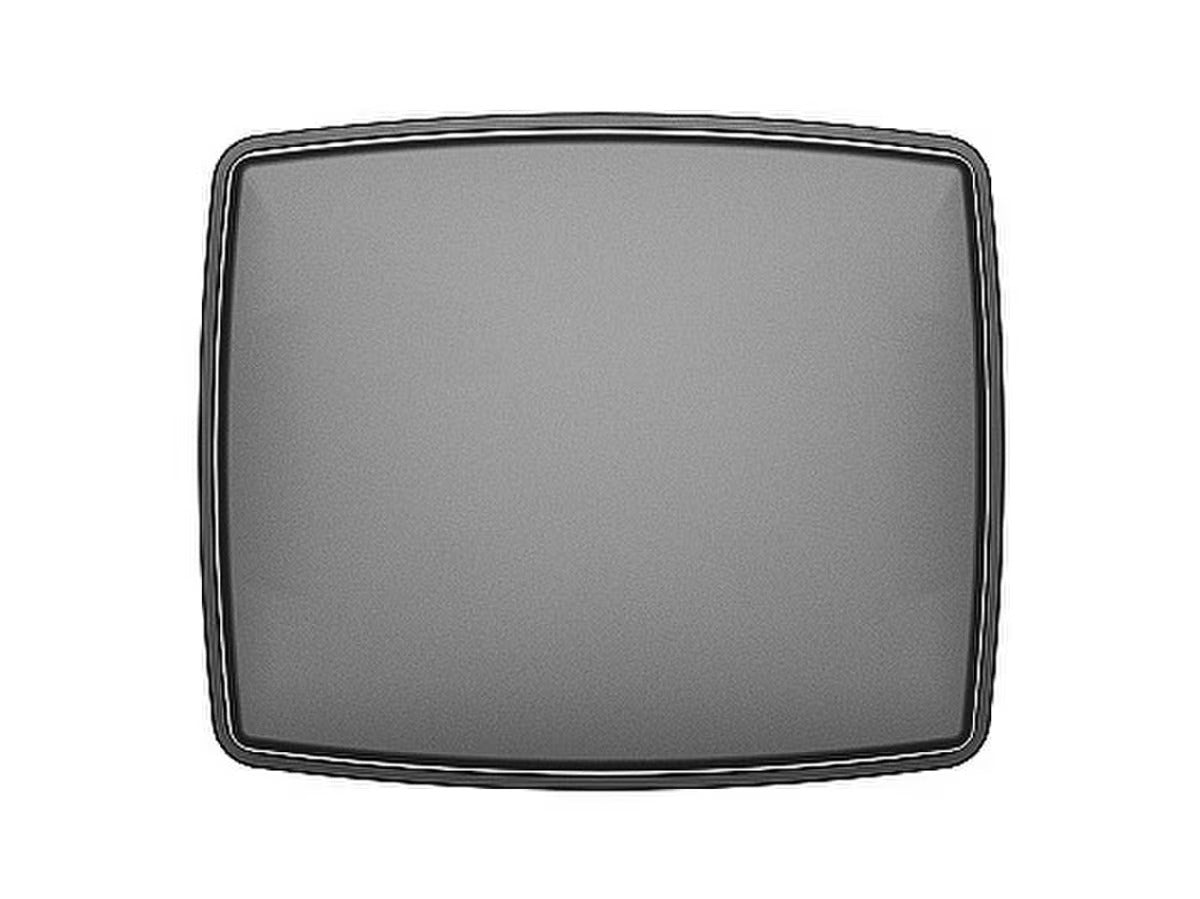

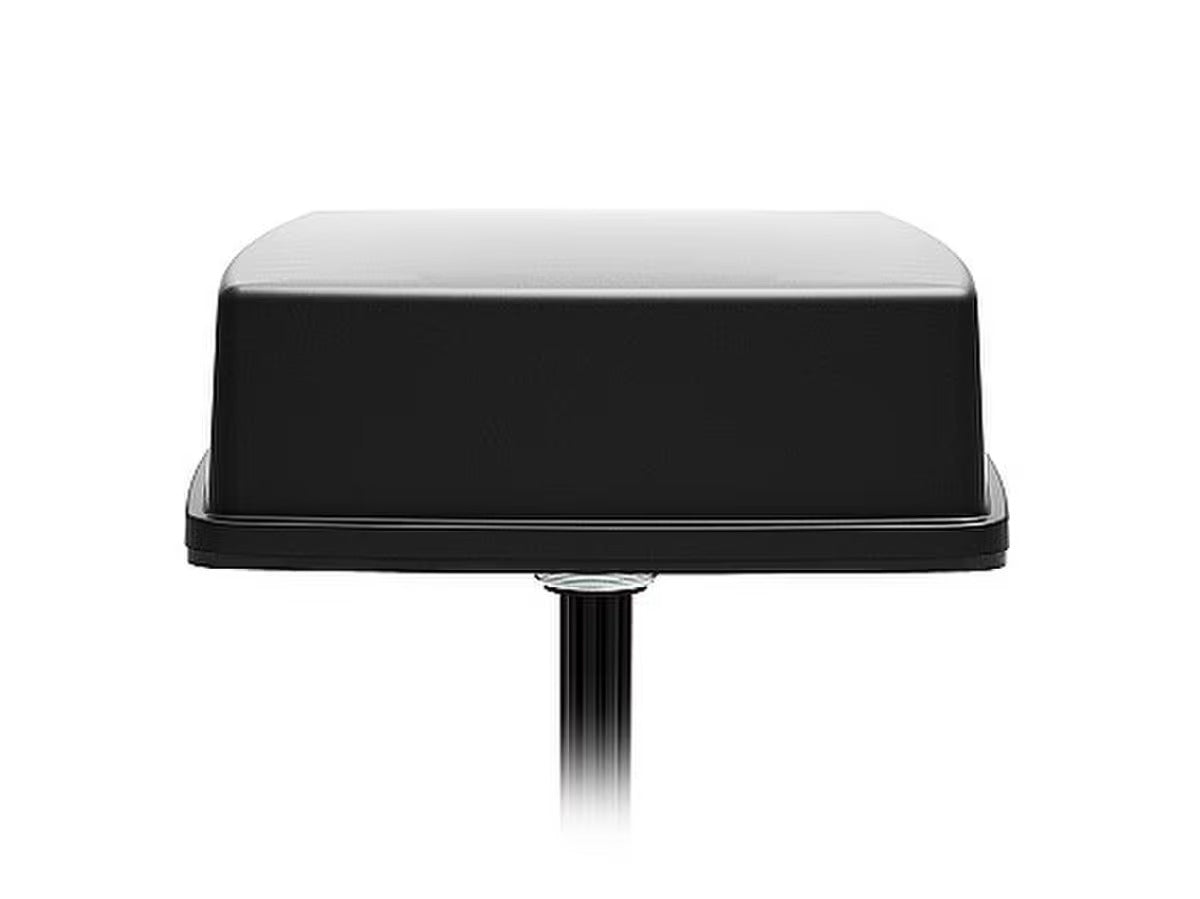

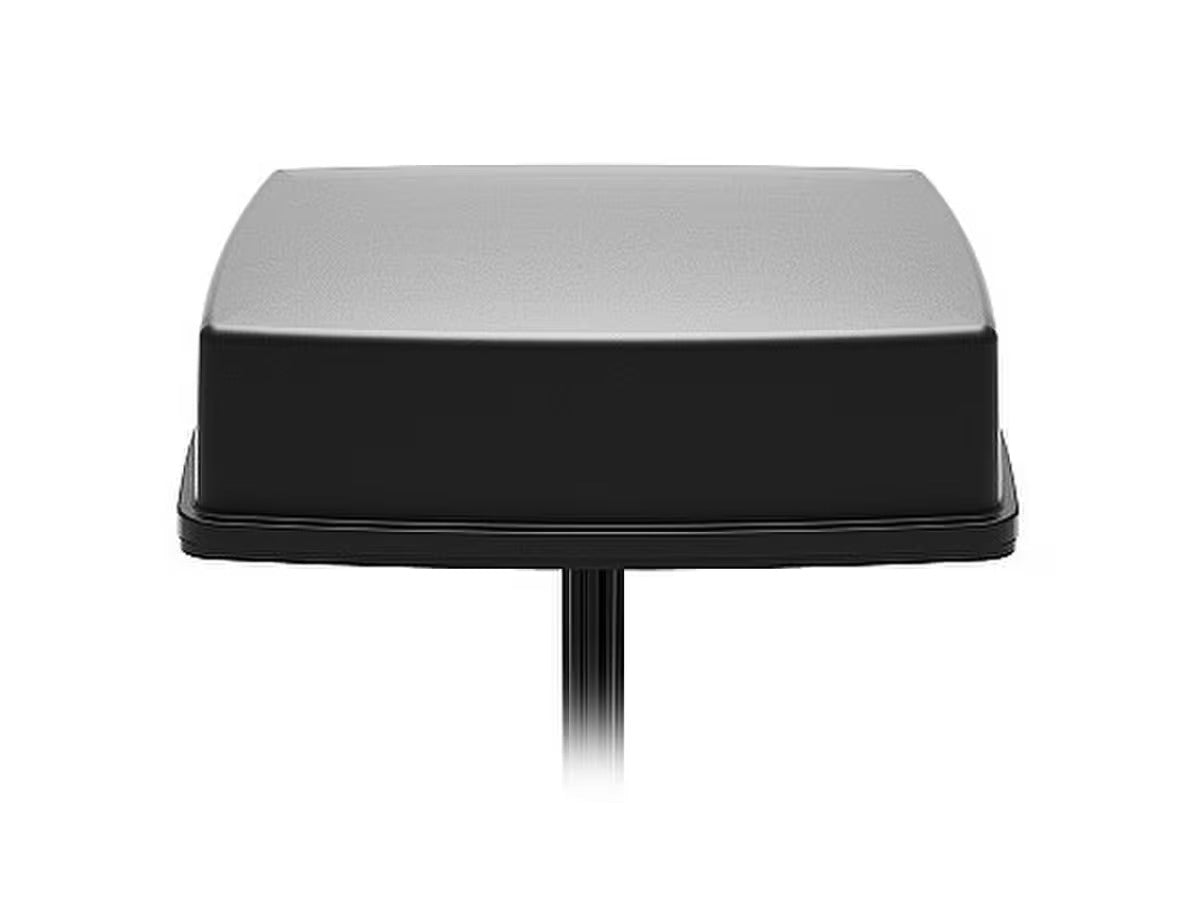

RFI Legion 6-in-1 Screw Mount Antenna, 2x 5GNR, 4x WiFi, 2m SMA

    RFI Legion 6-in-1 Screw Mount Antenna, 2x 5GNR, 4x WiFi, 2m SMA

      Product form
      Brand:
      Item ID:
      168069199
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      LEGION-C2-W4-2M-SMA

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI LEGION-C2-W4-2M-SMA 6-in-1 Screw Mount antenna, 2x 5GNR, 4x WiFi with 2m SMA is an ideal solution for OEM manufactures, and emergency services.

      Available

      $338.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The LEGION-C2-W4-2M-SMA 6-in-1 Combination antenna boasts 2x2 ultra-wideband cellular, and Multiband 4x4 MIMO Wi-Fi. The simple screw mount system makes mounting and installation simple and easy. This makes the Legion an ideal solution for OEM manufactures, and emergency services. The ultra wideband 2x2 MIMO cellular feeds cover 617-5925 MHz Sub 6GHz Bands allowing for the Legion MINI to be used with a wide variety of communication technologies. I0ncluding: 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards. The 4x4 MIMO Wi-Fi feed support 2.4/5.0/6.0 GHz allowing for Wi-Fi 6E and 7 support. With wideband cellular and Wi-Fi in a low profile compact radome the Legion is ideal for a variety of applications including:
        • Fixed wireless including Data Terminals, Base Stations and Routers
        • Utilities
        • IoTand M2M
        • Critical Communications and Public Safety (Law Enforcement & Fire Departments)

        Product Specifications

        Adapter included No
        MPN LEGION-C2-W4-2M-SMA
        Antenna application Terminal Antenna
        Antenna port connectors SMA (M)
        Antenna type Ground Independent
        Band 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz
        Brands RFI
        Cable type LL100, D302
        Coverage type Omni-directional
        Frequency range mhz 1710 - 2170, 2300 - 2700, 698 - 960
        Height 2
        Ingress protection ip IP67, IP69
        Installation type Vehicle mounting
        Ip rating IP67, IP69
        Length 5
        Low pim No
        Max frequency mhz 5925
        Mimo support Yes
        Min frequency mhz 617
        Mount supported Screw mount
        Mount supported detailed Device mount
        No of antenna ports 6
        Nominal gain dbi 3.6dBi / 3.2 dBi / 1.9 dBi (peak)
        Packaging Clear Bag
        Power w 25.0, 25
        Product height 5.3cm
        Product length 19.9cm
        Product width 16.7cm
        Radome diameter mm 50
        Technologies supported Wi-Fi, 5G
        Tuned bandwidth Full. No tuning required
        Vswr < 2.5:1
        Width 5
