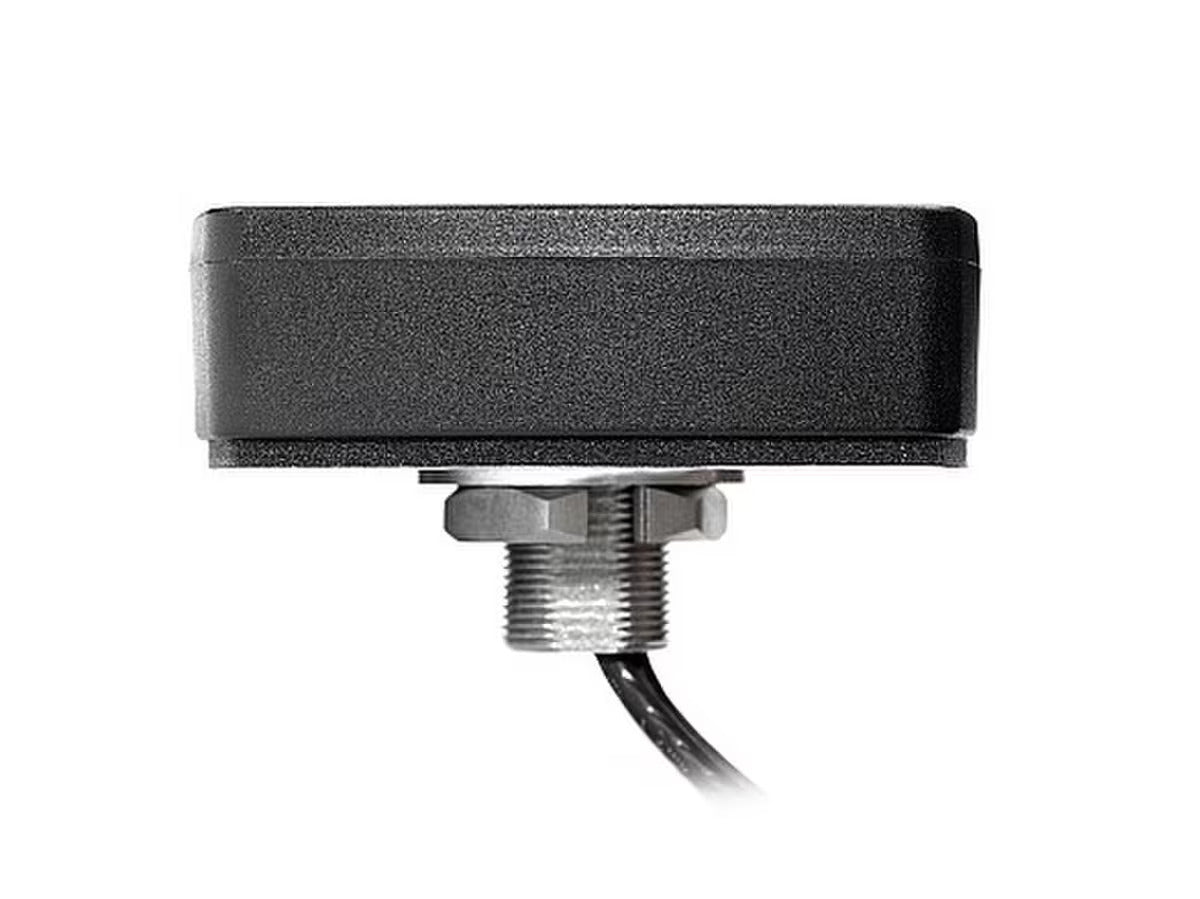

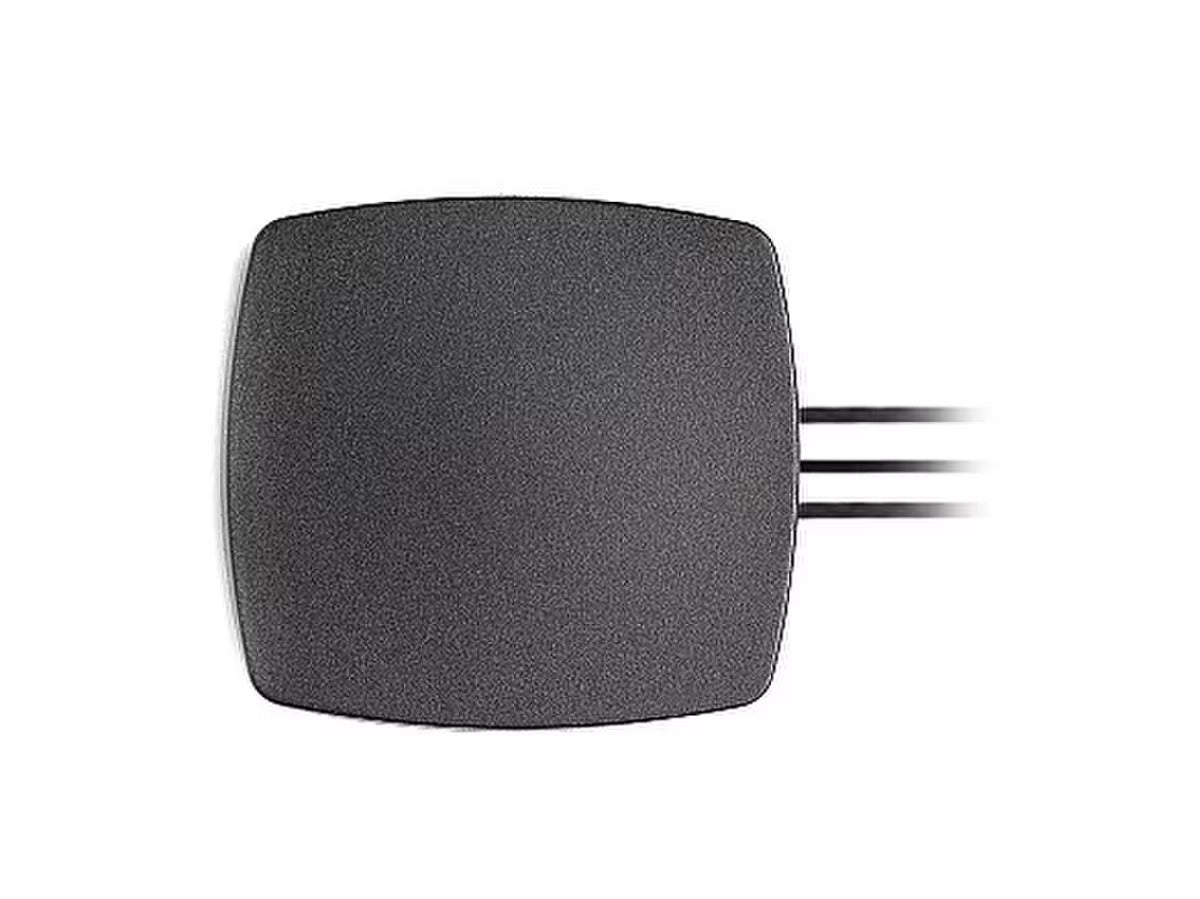

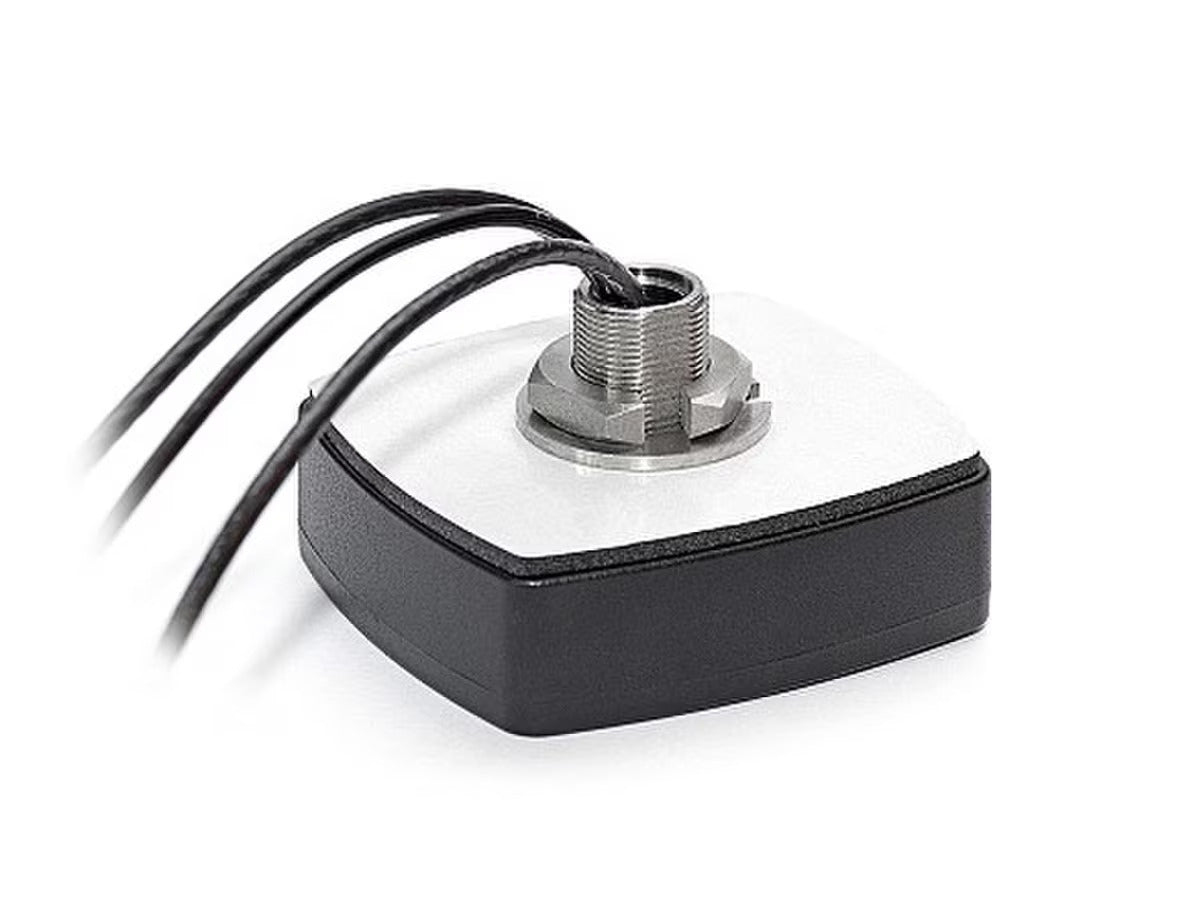

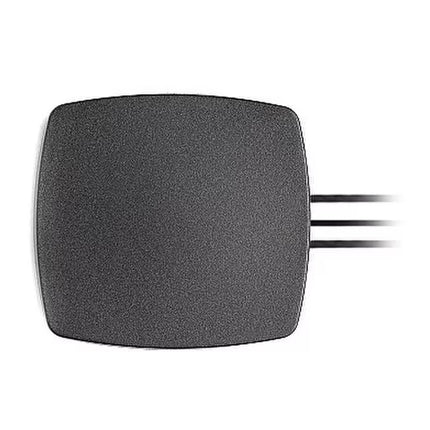

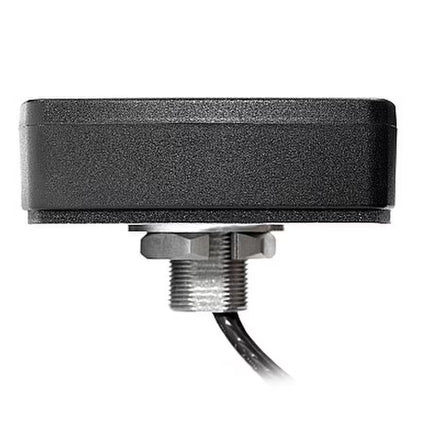

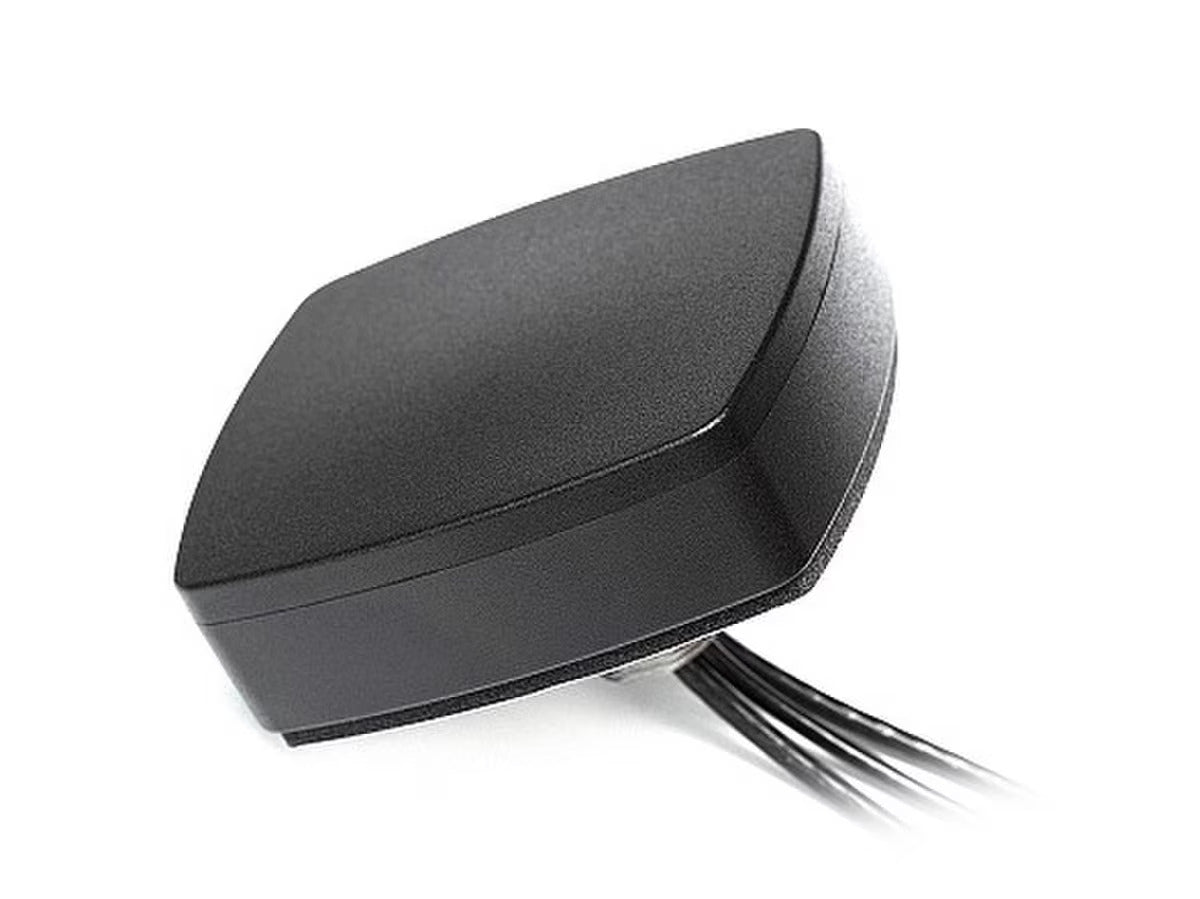

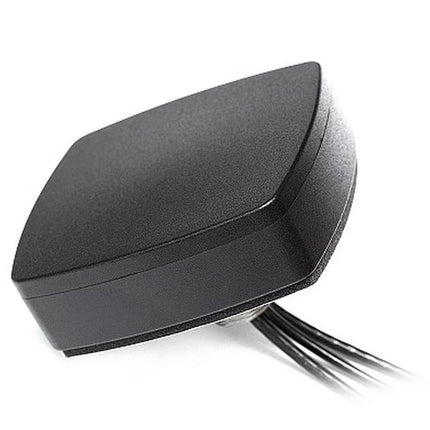

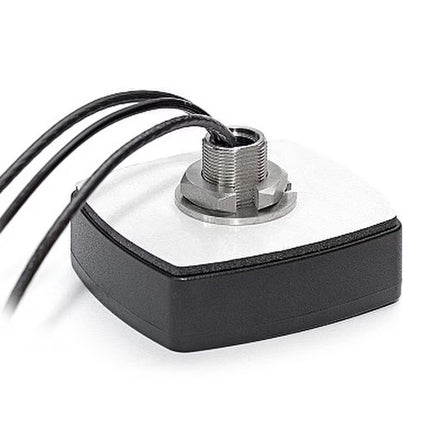

The LEGION-MICRO-C2-G-2M-SMA MICRO is a cost-effective solution for industrial, commercial, and residential applications that rely on high performance, reliability, and high data throughput. Highly versatile, this ultra-wideband 3-in-one antenna offers 2x 5GNR MIMO and 1x GNSS covering the 617-5925 MHz Sub 6GHz Bands. The ultra wideband MIMO cellular feeds cover 617-5925 MHz Sub 6GHz Bands allowing for the Legion Micro to be used with a wide variety of communication technologies. This includes: 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards. With a 360-degree omni-directional radiation pattern, the Legion Micro antenna has maximum ~5.1 dBi 5GNR peak gain while maintaining high efficiency. The dedicated feed for navigation applications services GPS, QZSS, Galileo, and GLONASS global standards. With 28 dB active gain, pre-filter, and low noise figure of 1.5 dB, this active GNSS antenna maintains consistent performance while connecting to the major global satellite systems.With wideband cellular and GPS in a low profile compact radome the Legion Micro is ideal for a variety of applications including:

• Fleet management and Telematics
• Asset and Inventory Tracking
• IoTand M2M
• Automotive and Transportation
• Critical Communications and Emergency agencies

Documents:

RFI Legion Micro 3-in-1 Combination Antenna - Datasheet
