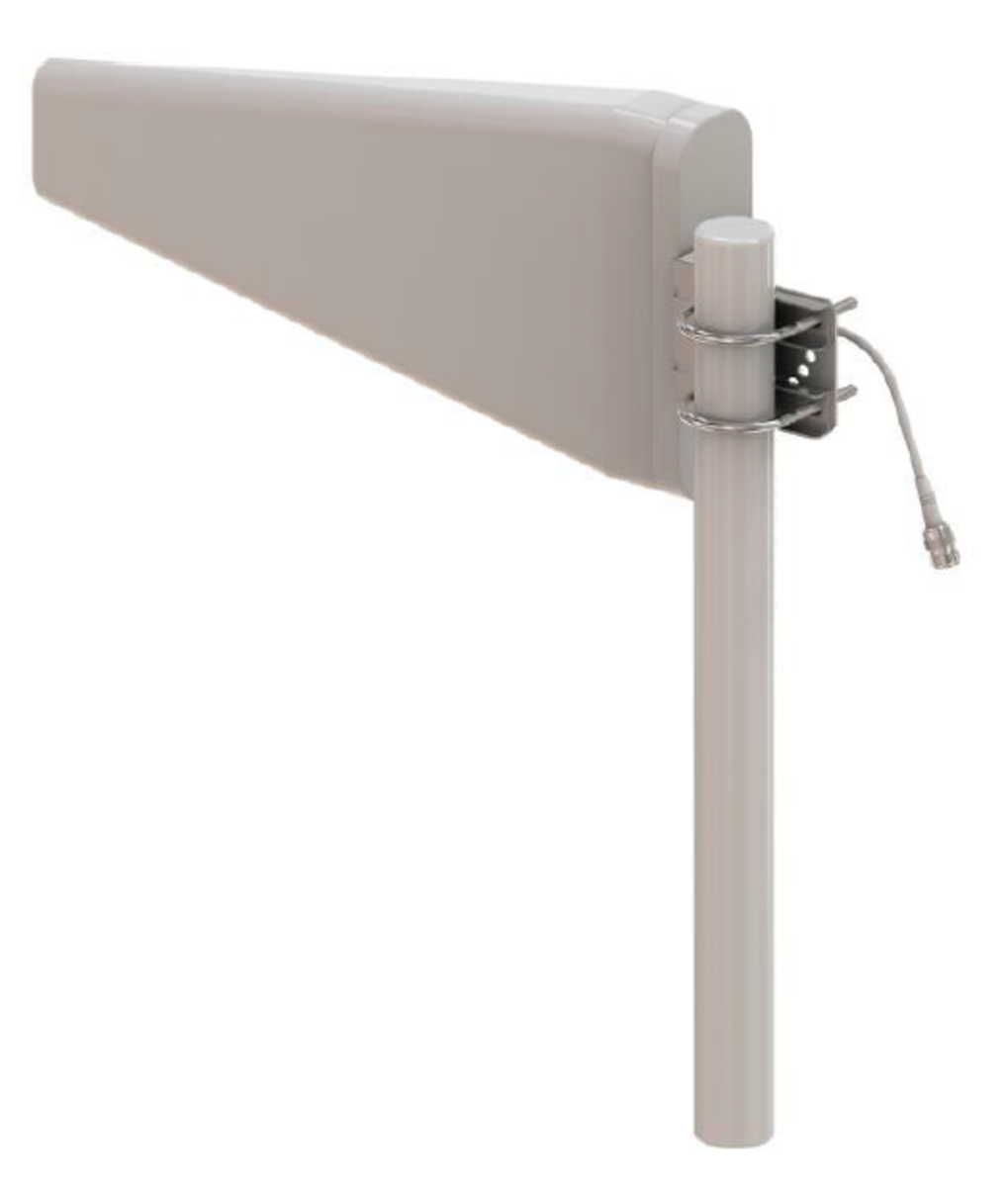

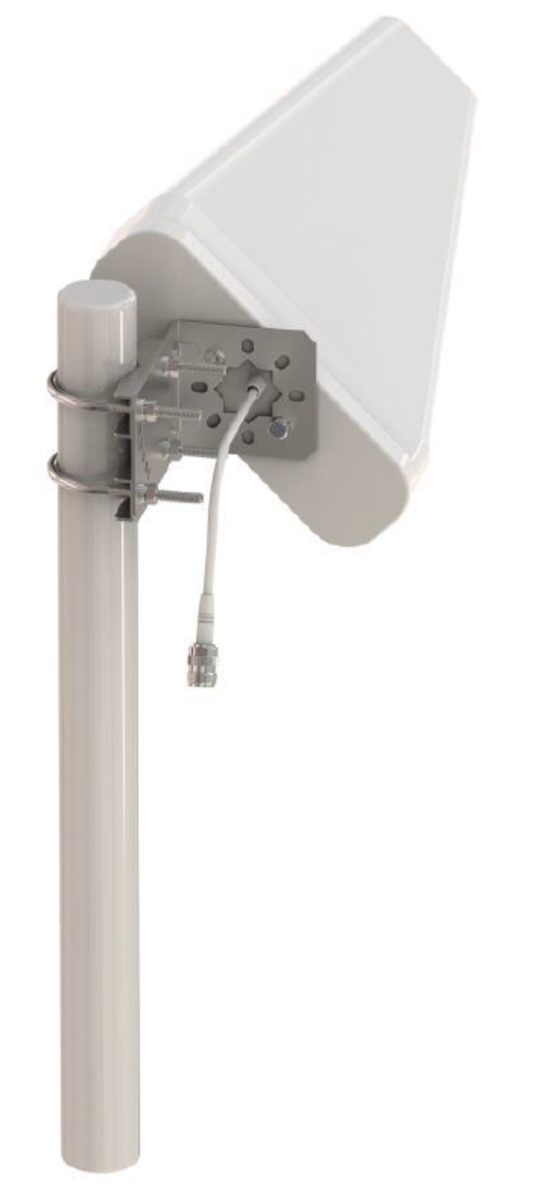

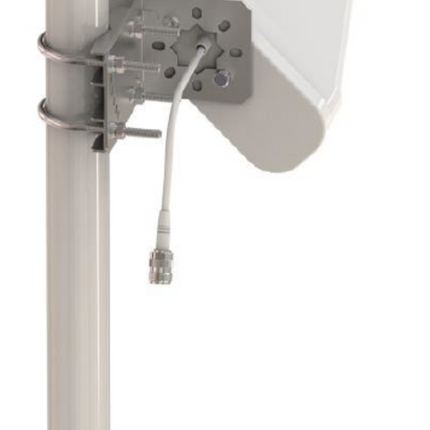

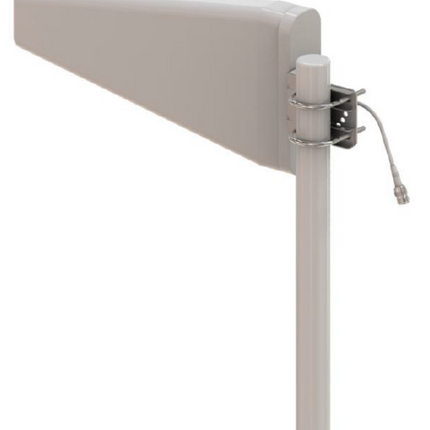

RFI LPDA7040 4G+5G Mini LPDA Directional Antenna, 698-4000 MHz, 11 dBi, 0.3m, N-Female

RFI LPDA7040 4G+5G Mini LPDA Directional Antenna, 698-4000 MHz, 11 dBi, 0.3m, N-Female

Available

Brand:
Item ID:
168014262
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LPDA7040-11-0.3NF
Send Request for Quote (RFQ) Discount Offers
The RFI LPDA7040 is a high performance wide band log periodic antenna designed to operate in the 4G & 5G bands from 698 MHz to 4000 MHz. The antenna offers an excellent directional gain of 11 dBi. Fitted with a short 0.3m cable terminated with N-Type Female connector, this LPDA antenna is compatible to use with most applications.
Regular price $164.00
Regular price $0.00 Sale price $164.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

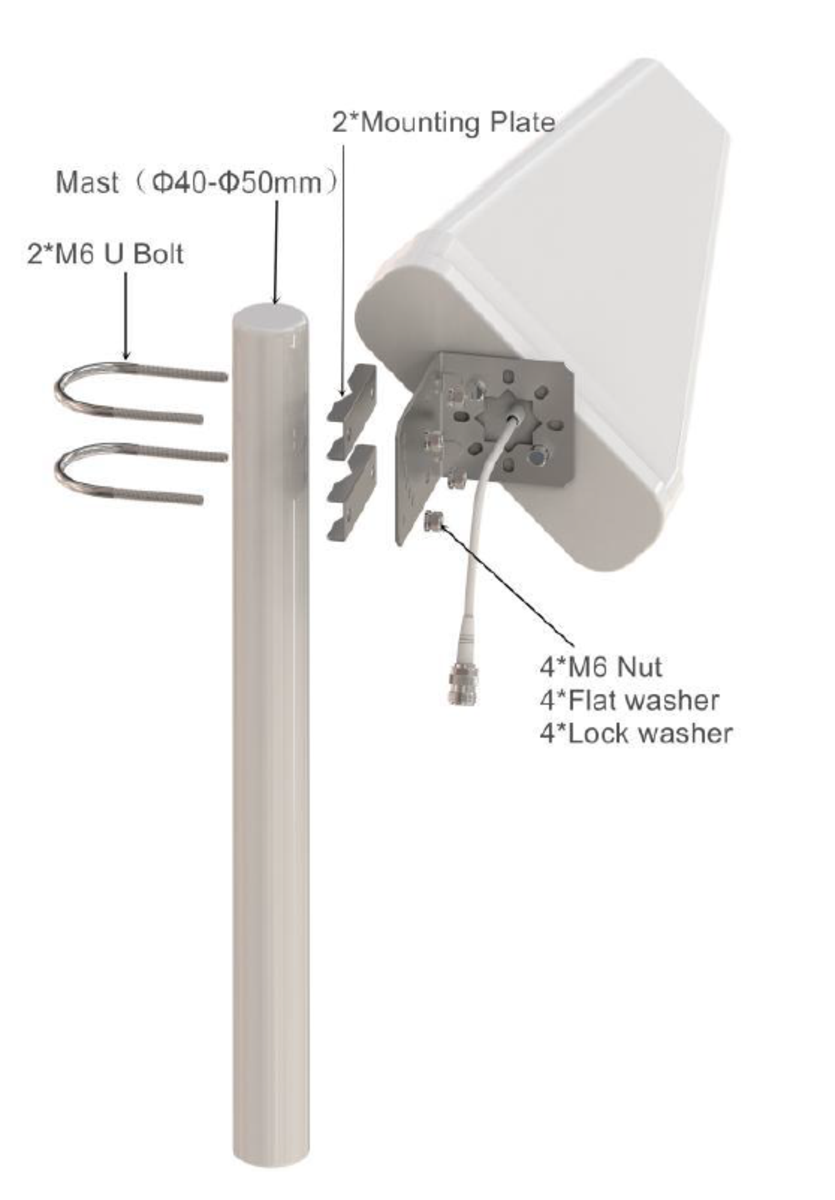

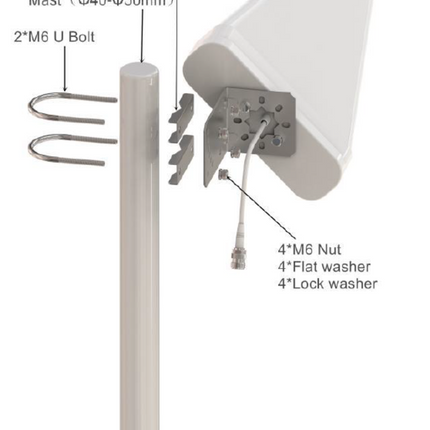

The RFI LPDA7040 is a high performance wide band log periodic antenna designed to operate in the 4G & 5G bands from 698 MHz to 4000 MHz. The antenna offers an excellent directional gain of 11 dBi. Fitted with a short 0.3m cable terminated with N-Type Female connector, this LPDA antenna is compatible to use with most applications. The wideband design of this LPDA antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired. The brass & aluminium internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation and is supplied with a tilt and swivel mast mount kit.

Product Features:

  • The antenna offers broad operating frequency range of 698 MHz to 4,000 MHz making it suitable for 4G & 5G applications.
  • The antenna has a compact design with UV stable ABS radome plus IP65 rated, making it suitable for outdoor use.
  • This antenna helps to improve signal reception in both urban and rural areas with poor signal reception (indoor or outdoor)
  • Due to it's high gain of 11 dBi, the antenna increased system transmission reliability.
  • The antenna is suitable to use in fringe areas (close to 4G/5G area, but just out of reach)
  • This antenna is suitable to use on all cellular operators in Australia.

In the Box:

  • 1x RFI LPDA7040 Mini LPDA Directional Antenna (MPN: LPDA7040-11-0.3NF )
  • Installation brackets

Documents:

RFI LPDA7040 Antenna - Datasheet RFI LPDA7040 Antenna - Installation Guide

Product Specifications

MPN LPDA7040-11-0.3NF
Antenna application Base Station Antenna
Antenna cable type RG141
Antenna port connectors N (F)
Antenna type Directional LPDA
Brands RFI
Cable and connector 0.3 m RG141 cable terminated with N type female connector
Cable length m 0.3
Connector N(F)
Coverage type Directional
Frequency band Multi-Band 700-2700 MHz
Frequency mhz 698-960|1710-2700|3300-4000
Front back ratio db 15
Height 11
Horizontal beamwidth 90 / 75 / 54
Ingress protection ip IP65
Installation type External mounting
Length 40
Low pim Yes
Max frequency mhz 4000
Max gain dbd dbi 11.5
Mimo support No
Min frequency mhz 698
Min gain dbd dbi 9.5
Mount supported Pole mount
Mount supported detailed Pole mount
Mounting area Up to 52mm diameter pole
No of antenna ports 1
Nominal gain dbi 9.5 / 11.0 / 11.5
Pim 3rd 2x20 w dbc -153
Polarisation Linear
Power w 50
Technologies supported 2G, 3G, 4G
Tuned bandwidth Full
Vertical beamwidth 66 / 58 / 42
Vswr <2.0:1
Width 18
