RFI LTE Dome Antenna with GPS, 2x2 MIMO, 698-2700 MHz, Stud Mount, 2x 1.5m Cable, SMA-Male

    RFI LTE Dome Antenna with GPS, 2x2 MIMO, 698-2700 MHz, Stud Mount, 2x 1.5m Cable, SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014267
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      LTE-G-SDA-1.5M-SMA
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      This LTE Dome antenna from RFI supports 2x2 MIMO operation over 698 to 2700 frequency range. Supplied with 2 cables each 1.5m long and terminated with SMA(M) connectors, this antenna is suitable for most LTE/IoT routers like Teltonika, Robustel, Milesight and Ruijie Reyee. The antenna features an attractive, compact housing which can be used in both indoor & outdoor applications and is mounted via an M14 mm stud/nut.

      Available

      $146.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        This LTE Dome antenna from RFI supports 2x2 MIMO operation over 698 to 2700 frequency range. Supplied with 2 cables each 1.5m long and terminated with SMA(M) connectors, this antenna is suitable for most LTE/IoT routers like Teltonika, Robustel, Milesight and Ruijie Reyee. RFI's LTE-MDA Series is a compact low-profile omni-directional 2x2 MIMO LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz. The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. This antenna supports GPS. If you do not need GPS, please consider RFI LTE Dome Antenna without GPS. Make sure your router supports GPS. Browse from our range of GPS capable routers.

        Product Features:

        • This dome antenna has a Polycarbonate radome and IP67 rating, making it suitable for outdoor use.
        • Low-profile design allows for maximum overhead clearance.
        • Stud mounting offers ease of installation in the field.
        • This antenna supports GPS operation. This is helpful for tracking and geolocating the device attached.

        Installation:

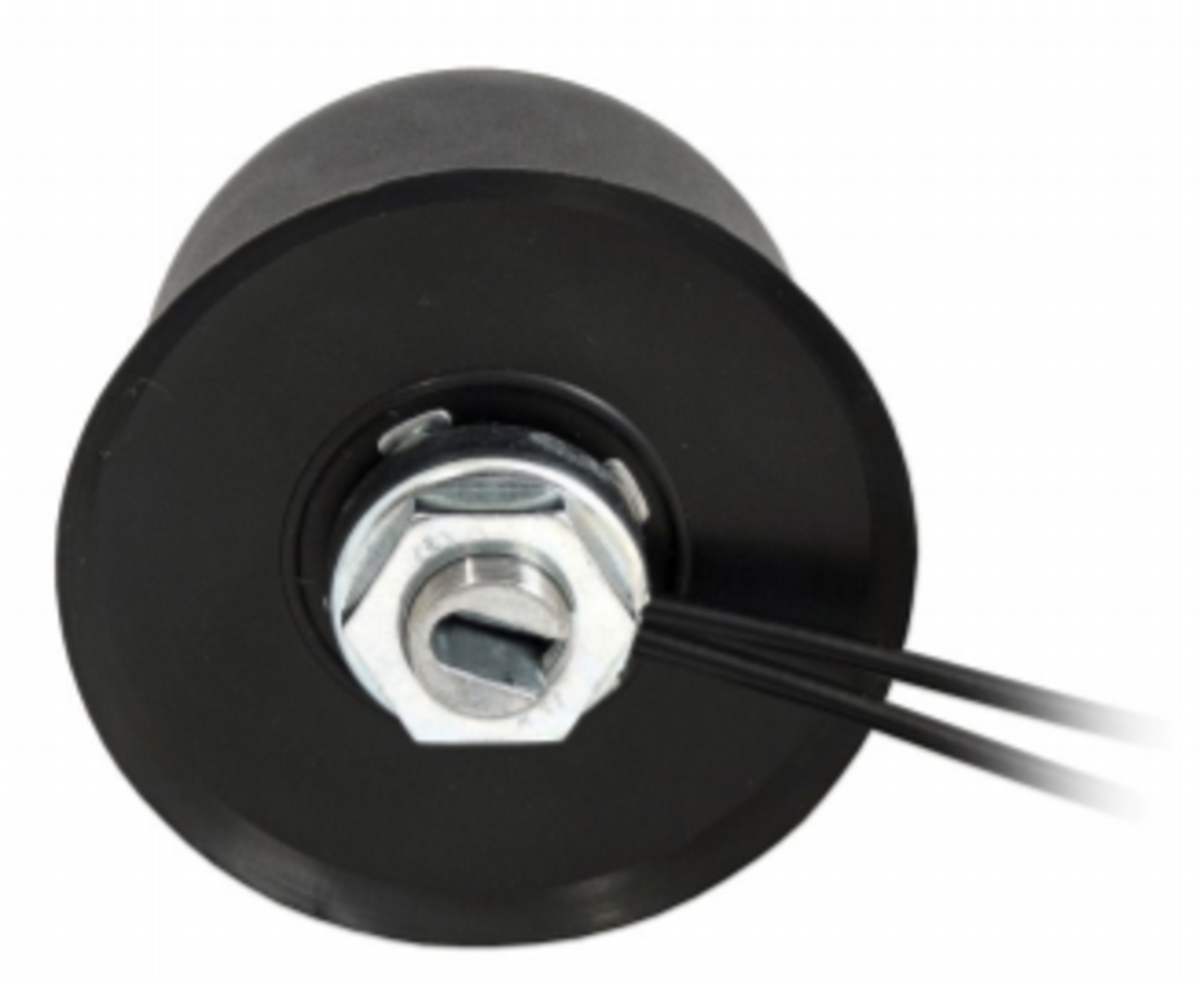

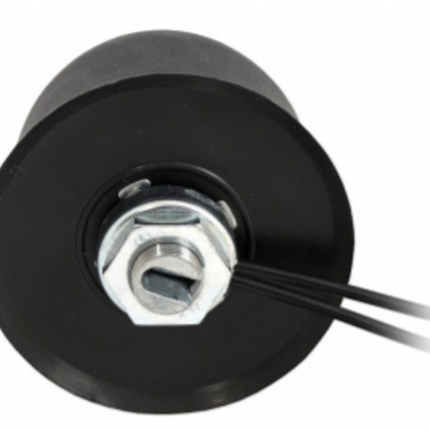

        The antenna is mounted via a M14 mm stud/nut and the base incorporates a rubber seal.

        Product Specifications

        MPN LTE-G-SDA-1.5M-SMA
        Antenna application Terminal Antenna, Vehicle Antenna, Mobile Antenna
        Antenna cable type RG174
        Antenna features Omnidirectional, Multi Band Capable
        Antenna port connectors SMA (M)
        Antenna type Ground Independent, Omni SISO, Stud Mounted
        Band LTE
        Brands RFI
        Cable and connector 2 x 1.5m RG174 terminated with SMA (M) connector
        Cable length m 1.5
        Coverage type Omni-directional
        Frequency band Multi-Band 700-2700 MHz
        Frequency mhz 698-960|1710-2170|2300-2700
        Height 2
        Ingress protection ip IP67
        Installation type Internal mounting
        Ip rating IP67
        Length 6
        Low pim No
        Max frequency mhz 2700
        Max gain dbd dbi 4
        Mimo support Yes
        Min frequency mhz 698
        Min gain dbd dbi 2
        Mount supported Screw mount
        Mount supported detailed Screw mount
        No of antenna ports 2
        Nominal gain dbi LTE = 2.0 dBi / 4.0 dBi / 3.5 dBi / GPS/GLONASS = 23dB @ 3V or 24 @ 5V
        Packaging Clear Bag
        Power w 25
        Radome diameter mm 77.3mm
        Technologies supported 2G, 3G, 4G, GPS
        Tuned bandwidth Full. No tuning required
        Vswr 2.2:1
        Whip length mm 65.5
        Width 6
