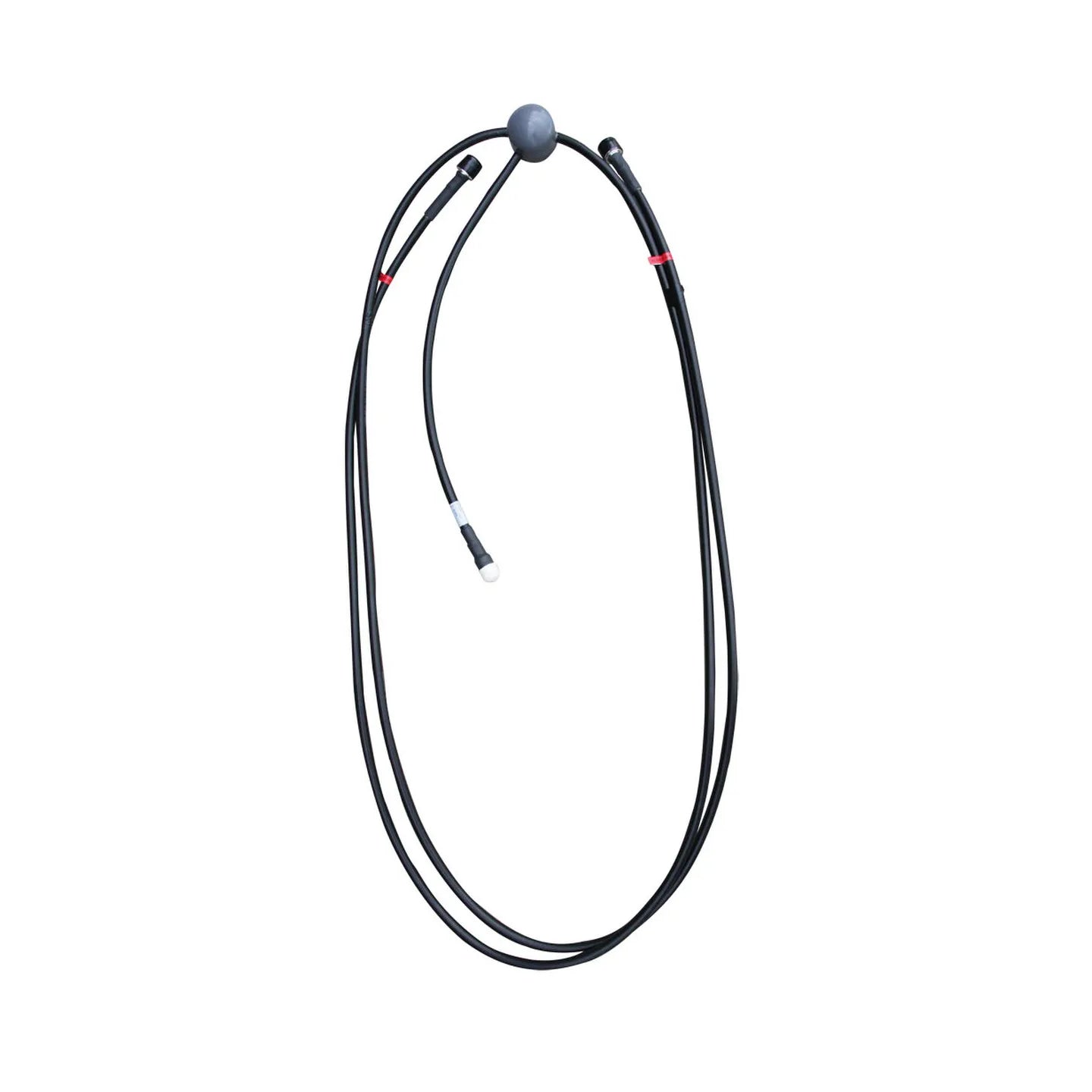

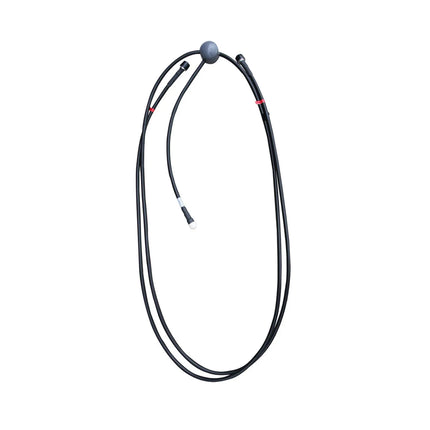

The RFI PH22-41 phasing harness is a 2-way phasing harness from RFI's standard PH Series, designed to support side-mounted dipole and smaller Yagi antenna arrays operating in the 148-174 MHz VHF band. Built using coaxial cable construction, this impedance-matching harness ensures optimal performance and signal phasing across two antenna outputs. It is ideal for installations where precise radiation patterns, low VSWR, and consistent gain are required. The PH22-41 is pre-terminated and factory tested for reliable deployment in commercial or industrial communications environments.

Product Features:

• 2-way impedance-matching phasing harness designed for VHF frequencies between 148-174 MHz.
• Optimized for use with side-mounted dipoles and smaller 2-4 element Yagi antennas.
• Ensures phase-pure signal distribution with low VSWR across connected antennas.
• Part of the standard PH Series, suitable for most side-mount installations without extended antenna spacing.
• Factory-assembled and tested for consistent RF performance in mission-critical systems.

Application Areas:

• VHF communications systems using side-mounted dipole antenna arrays.
• Government, emergency services, and infrastructure deployments requiring phased signal distribution.
• Base stations, repeaters, and directional systems using 2-element antenna arrays.

In the Box:

• 1 x RFI PH22-41 2-Way Phasing Harness (factory-terminated)

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide
