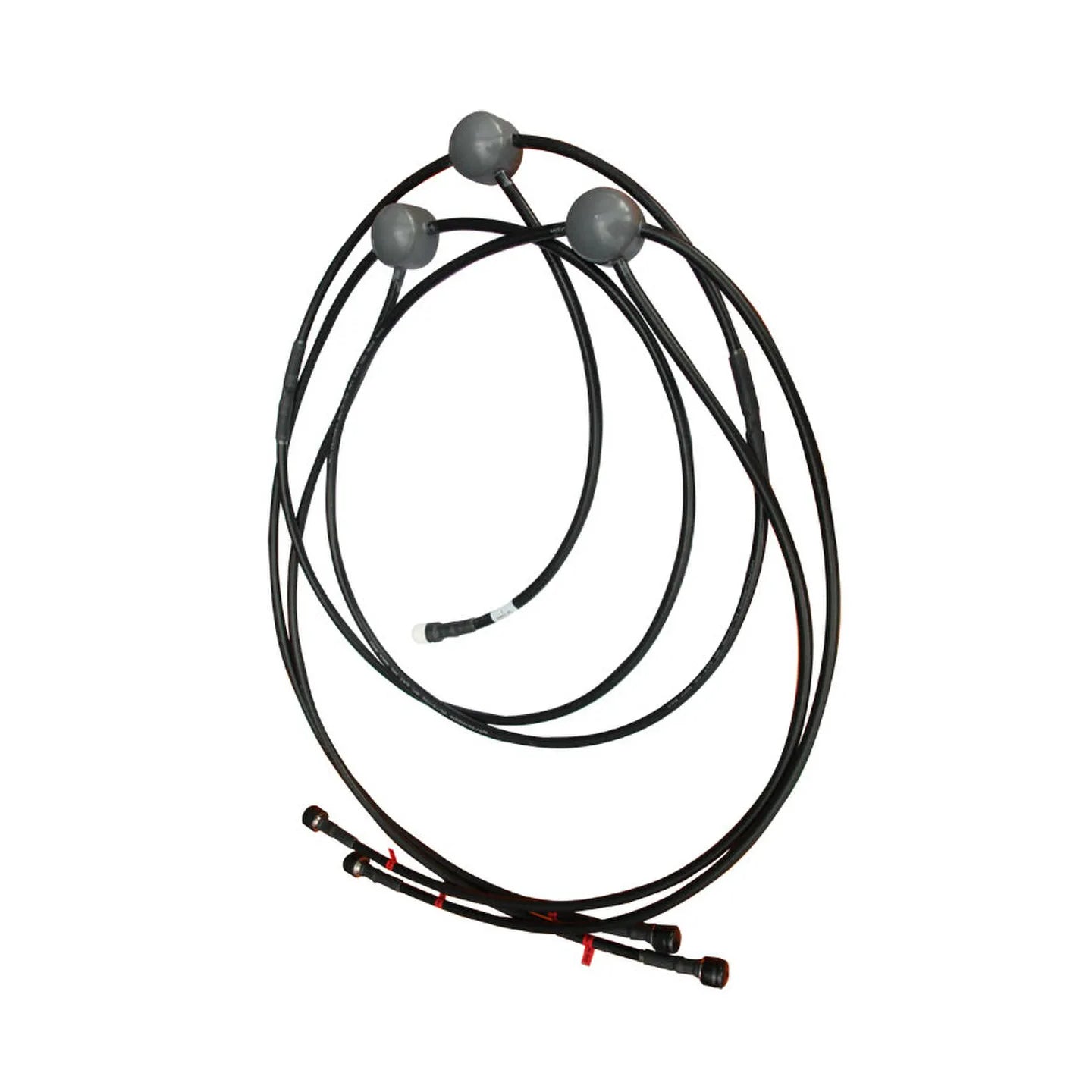

The RFI PH24-41 phasing harness is a 4-way phasing harness from RFI's standard PH Series, designed for VHF applications operating in the 148-174 MHz frequency band. Engineered for use with side-mounted dipole antennas and small Yagi arrays, it ensures optimal phase distribution and impedance matching across four outputs. The PH24-41 provides robust performance in communications systems demanding consistent RF behavior.

Product Features:

• 4-way phasing harness designed for VHF frequency range (148-174 MHz).
• Optimized for side-mounted dipole antennas and small Yagi configurations.
• Ensures accurate impedance matching and phase control across all outputs.
• Standard PH Series solution for compact, vertically polarized antenna arrays.
• Factory-terminated to reduce installation time and ensure reliability.

Application Areas:

• Base stations and repeater systems using side-mount antennas.
• Public safety, transportation, and utility VHF networks.
• Environments requiring directional antenna coverage using phased arrays.

In the Box:

• 1 x PH24-41 4-Way VHF Phasing Harness

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide
