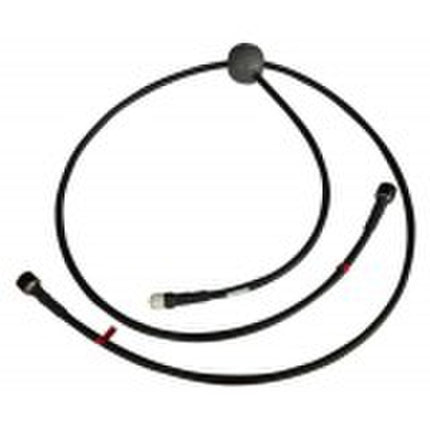

The RFI PH42-65 phasing harness is a 2-way phasing harness from RFI’s standard PH Series, purpose-built for UHF applications operating in the 400–420 MHz frequency range. This impedance-matching harness is constructed using high-quality coaxial cable and is engineered to deliver accurate signal phasing across two antenna outputs.

Product Features:

• 2-way phasing harness optimized for UHF band operation from 400 to 420 MHz.
• Designed for side-mounted dipoles and Yagi antennas with 2–7 elements.
• Impedance-matching coaxial construction ensures minimal signal loss and low VSWR.
• Pre-terminated and factory-tested for easy installation and consistent performance.
• Suitable for compact phased arrays requiring standard antenna spacing.

Application Areas:

• UHF communication networks using side-mounted dipoles or small Yagi arrays.
• Industrial and utility radio systems requiring directional coverage and pattern control.
• Base station and repeater installations operating in the 400–420 MHz frequency band.

In the Box:

• 1 x PH42-65 2-Way Phasing Harness (factory-terminated)

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide
