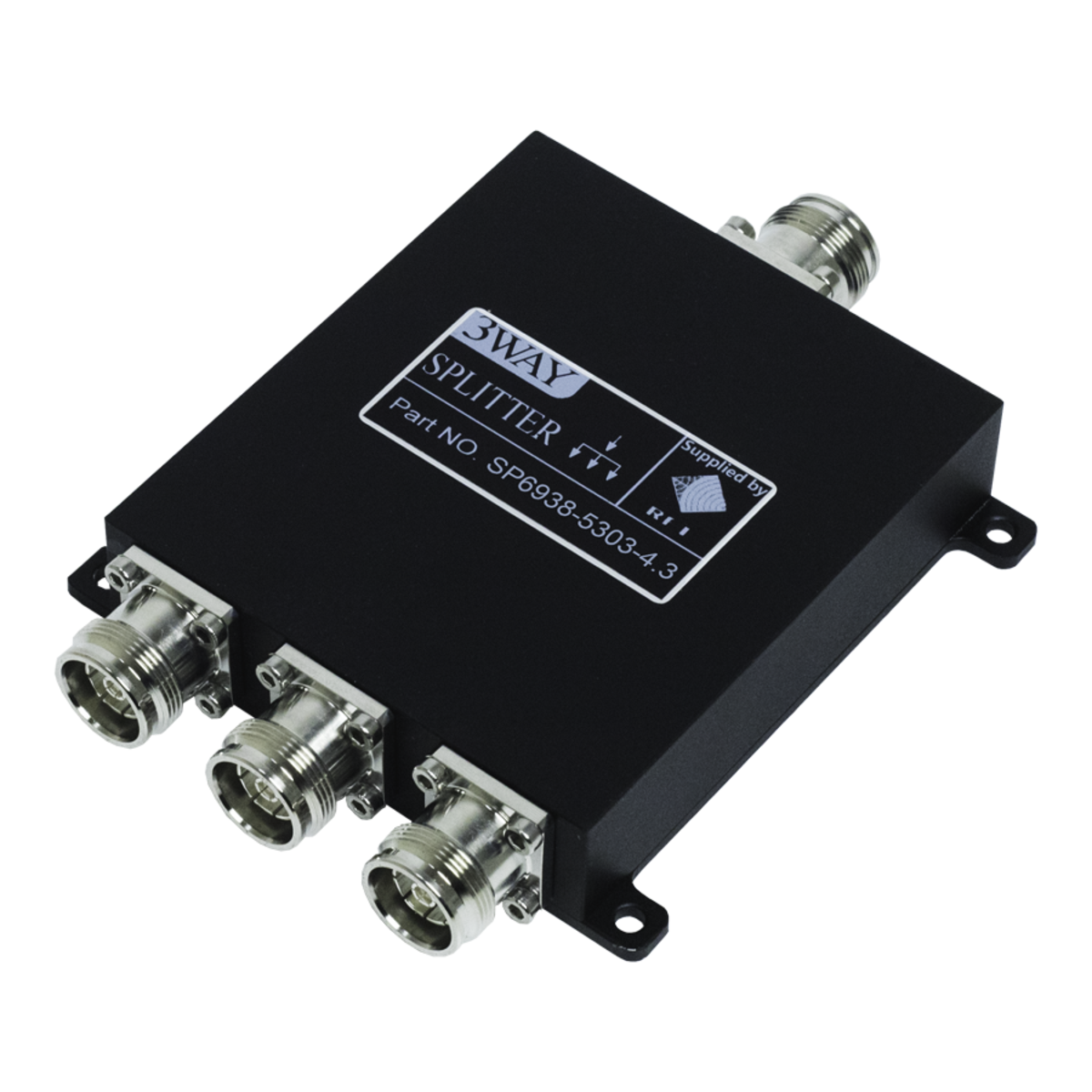

RFI SP6938-5303-4.3 Power Splitter, 3-Way, 698-3800 MHz, 300W, 4.3-10-Female

    RFI SP6938-5303-4.3 Power Splitter, 3-Way, 698-3800 MHz, 300W, 4.3-10-Female

      Product form
      Brand:
      RFI
      Item ID:
      168021600
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      SP6938-5303-4.3
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Power Splitter 3-Way 698-3800 MHz 300W is designed to split RF source power into an equal ratio of power outputs or combine multiple inputs to a single

      Sold-out

      $422.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI Power Splitter 3-Way 698-3800 MHz 300W;4.3-10(F)

        These 3-way devices may be used in a range of RF signal splitting (divider) and combining applications and are designed to split RF source power into an equal ratio of power outputs, or combine multiple inputs to a single output with isolation between the ports.

        Features:

        • Full broadband 698-3800 MHz, including 5G.
        • Multi-carrier PIM rating to low -155 dBc
        • Equal ratio signal splitting or combining.
        • 20 dB min. isolation between ports
        • Easy to install using in-built mounting holes
        • IP rated (IP65) for indoor and outdoor deployment.

        Documents:

        RFI SP6938-5303-4.3 Power Splitter - Datasheet

        Product Specifications

        MPN SP6938-5303-4.3
        Brands RFI
        Component type Splitter/Combiner
        Conn types all term ports 4.3-10 (F)
        Connector 4.3-10 (F)
        Coupled loss db 4.8
        Finish Black - Painted
        Frequency band Cellular
        Height 5
        Insertion loss db <5.3dB
        Length 14
        Pim 3rd 2 43 dbm dbc <160dBc
        Port to port isolation > 20dB typ.
        Splits 3
        Technology type 5G, 4G, UMTS
        Temperature range -30?C to +60?C / -22?F to +140?F
        Width 5
