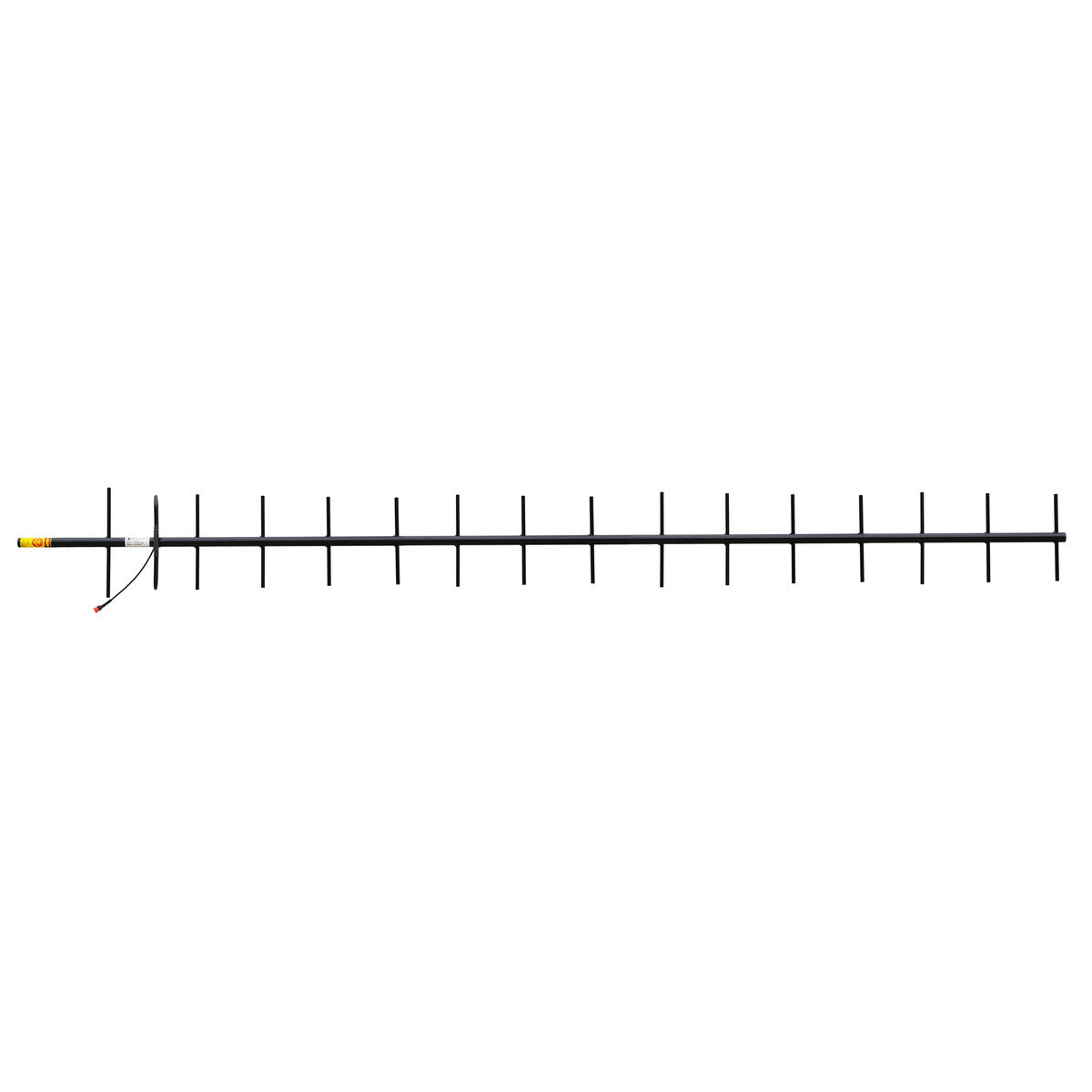

The RFI RDA16-71 is a ruggedised 16-element Yagi antenna designed for high-performance directional communication in the 470-490 MHz frequency range. Its robust construction and weather-resistant features make it ideal for use in extreme environments.

Features:

• The RFI RDA16-71 antenna delivers 14 dBi gain for reliable long-range communication.
• This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
• The all-welded construction ensures consistent performance in harsh conditions.
• The ruggedised design includes larger elements and boom for structural durability.
• The black powder coating aids in snow and ice shedding by maximizing solar heat absorption.
• The antenna includes a short Durathene cable tail with an N female connector for superior weather resistance.
• The Durathene cable is less prone to bird damage than standard PVC sheathed cables.
• It supports stacking or baying using PH and PHE series phasing harnesses.
• The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.

Application Areas:

• The antenna is ideal for point-to-point RF communication in extreme climates.
• This antenna is suitable for systems requiring high gain and rugged construction.
• It is designed for use in remote or industrial outdoor environments.

In the Box:

• 1x RFI RDA16-71 UHF 16 Element Yagi Antenna

Documents:

RFI RDA16-71 Yagi Antenna - Datasheet RFI Phasing Yagi Antennas - Technical Guide
