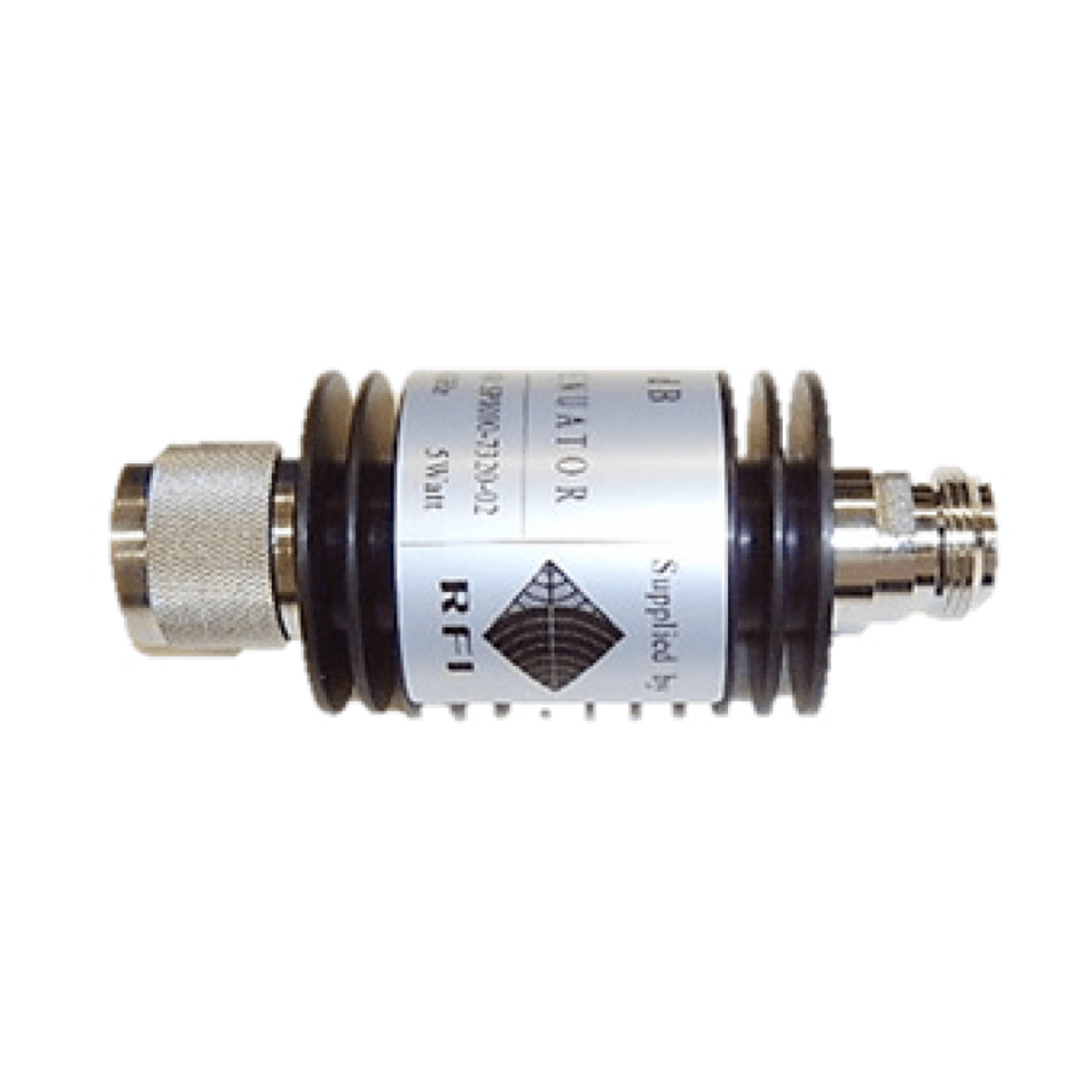

The RFI SP0000-7310-02 Attenuator is a high-quality 50 Ohm RF Coaxial In-Line Attenuator with a fixed attenuation value of 10 dB. Designed for a frequency range of DC to 3 GHz and a power rating of 5W, this attenuator features N male and female connectors. It is primarily used in multicoupling and bench test and measurement applications. The full range of in-line attenuators are air-cooled through natural convection with conservative power to heatsink surface area power density factors, offering excellent return loss and temperature tolerances.

Product Features:

• This RFI Attenuator has a 5W power rating, ensuring robust performance in various applications.
• It operates across a frequency range of DC to 3 GHz, providing broad compatibility.
• This device is available in a fixed attenuation value of 10 dB, suitable for precise signal control.
• It offers excellent return loss and VSWR across the full DC to 3 GHz bandwidth, ensuring minimal signal reflection and loss.
• This attenuator features N male and female connectors, providing secure and reliable connections.

Application Areas:

• This attenuator is ideal for RF multicoupling applications, ensuring precise signal attenuation.
• It is perfect for bench test and measurement applications, providing reliable performance and accuracy.
• It is suitable for use in various RF systems, ensuring consistent and reliable signal control.

In the Box:

• 1x RFI SP0000-7310-02 Attenuator

Documents:

RFI SP0000-73xx-02 Attenuator - Datasheet
