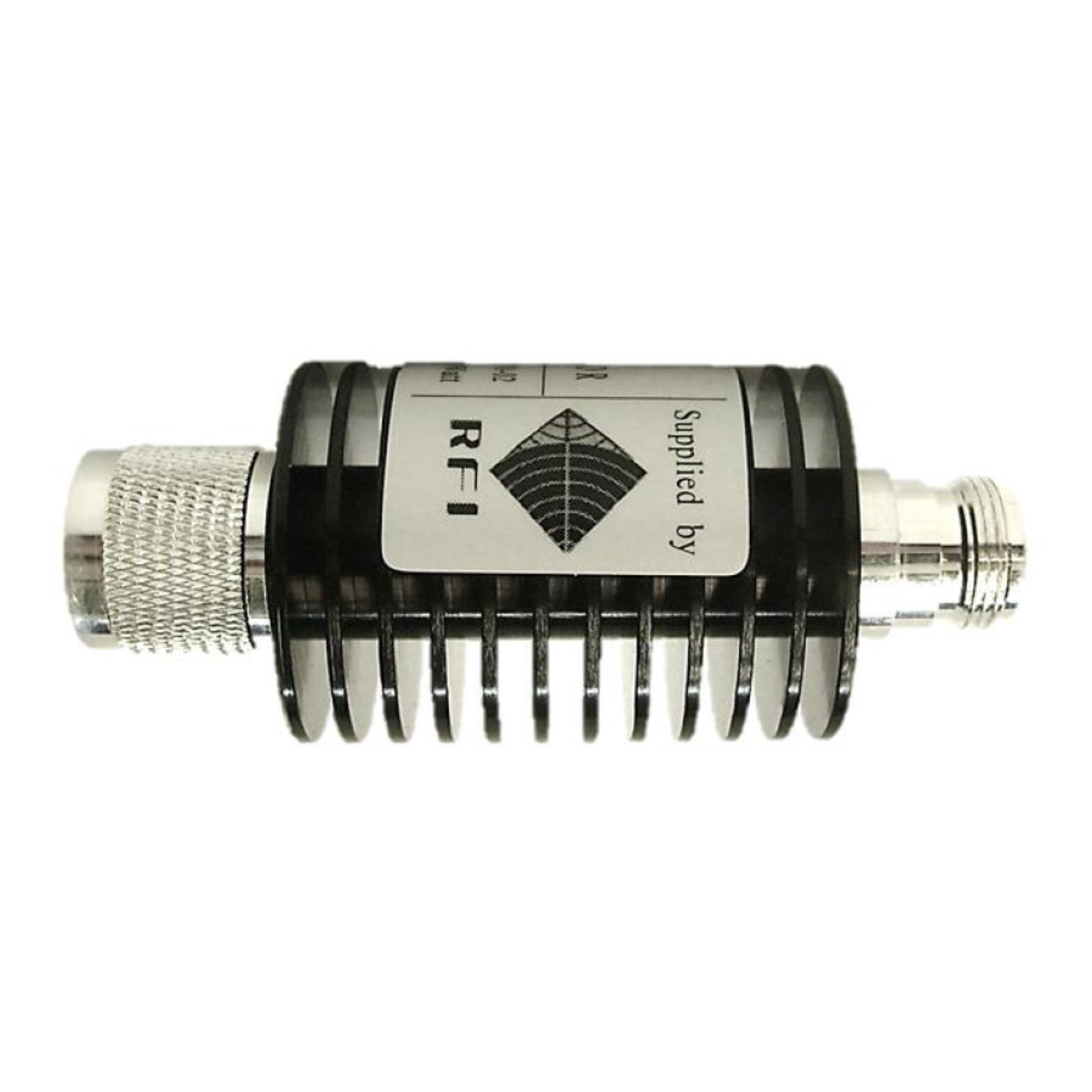

RFI SP0000-7410-02 Attenuator, 10 dB, DC-2.5 GHz, 10W, N Male/Female

RFI SP0000-7410-02 Attenuator, 10 dB, DC-2.5 GHz, 10W, N Male/Female

On backorder

Brand:
Item ID:
168018911
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SP0000-7410-02
Send Request for Quote (RFQ) Discount Offers
RFI SP0000-7410-02 Attenuator is 50 Ohm RF Coaxial In-Line Attenuator features N male and female connectors, 10 dB, DC to 2.5 GHz and 10W power rating.
Regular price $247.00
Regular price $0.00 Sale price $247.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI SP0000-7410-02 Attenuator is a high-quality 50 Ohm RF Coaxial In-Line Attenuator with a fixed attenuation value of 10 dB. Designed for a frequency range of DC to 2.5 GHz and a power rating of 10W, this attenuator features N male and female connectors. It is primarily used in multicoupling and bench test and measurement applications. The full range of in-line attenuators are air-cooled through natural convection with conservative power to heatsink surface area power density factors, offering good VSWR and return loss across the full DC to 2.5 GHz bandwidth.

Product Features:

  • This RFI Attenuator has a 10W power rating, ensuring robust performance in various applications.
  • It operates across a frequency range of DC to 2.5 GHz, providing broad compatibility.
  • This device is available in a fixed attenuation value of 10 dB, suitable for precise signal control.
  • It offers good VSWR and return loss across the full DC to 2.5 GHz bandwidth, ensuring minimal signal reflection and loss.
  • This attenuator features N male and female connectors, providing secure and reliable connections.

Application Areas:

  • This attenuator is ideal for RF multicoupling applications, ensuring precise signal attenuation.
  • It is perfect for bench test and measurement applications, providing reliable performance and accuracy.
  • It is suitable for use in various RF systems, ensuring consistent and reliable signal control.

In the Box:

  • 1x RFI SP0000-7410-02 Attenuator

Documents:

RFI SP0000-74xx-02 Attenuator - Datasheet

Product Specifications

MPN SP0000-7410-02
Attenuation accuracy +/- 1.0dB
Attenuation value 10 dB
Brands RFI
Component type Attenuator
Connector N(m/f)
Finish Painted Black
Frequency range mhz DC - 2500
Height 28
Length 5
Power rating maximum 10W
Power rating watts 10W
Temperature range c -40 to +50
Termination connectors N ( M/F )
Width 8
