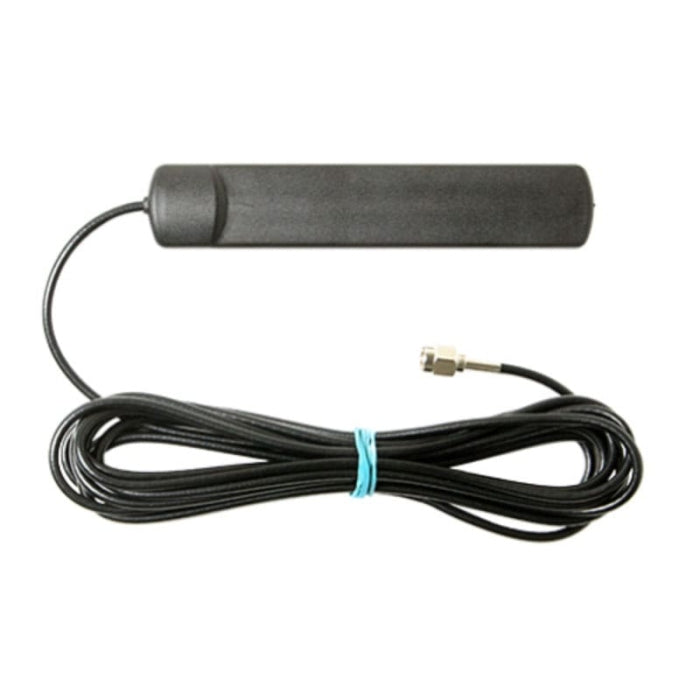

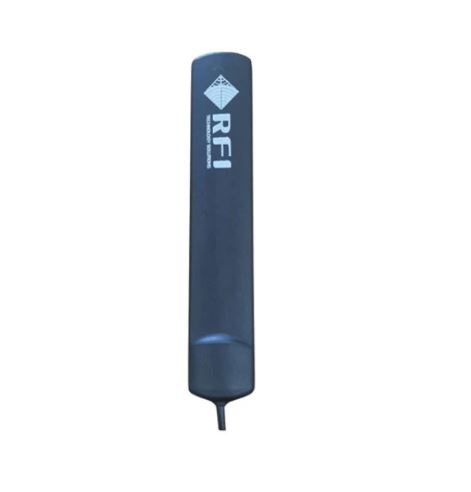

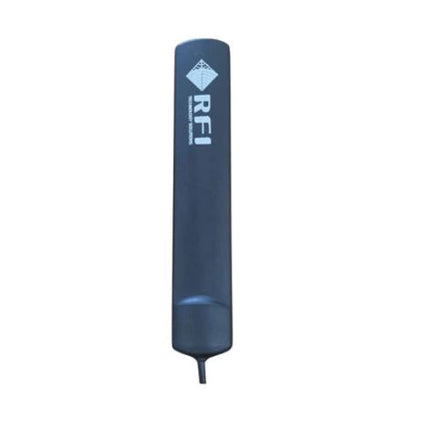

The RFI T5 Series Internal Glass Mount Antenna delivers exceptional omnidirectional performance for LTE and 5G NR applications. Designed to support CAT-M and NB-IoT technologies for modern M2M, telematics, and IoT solutions. With backward compatibility to existing LTE networks and support for frequencies from 617 to 5925 MHz, this compact antenna is ideal for concealed installations in vehicles and other space-constrained environments.
Product Features:
- The antenna covers all LTE and 5G NR cellular bands, including the new 700 MHz (4GX/4G+) frequency.
- It operates over a wideband frequency range from 617 MHz to 5925 MHz, enabling global compatibility and future-ready performance.
- The omnidirectional design delivers a 360-degree radiation pattern with high peak gain and efficiency.
- The ground-plane-independent configuration provides consistent performance in various mounting conditions.
- The compact, low-profile design (116 × 22 × 6.7 mm) is ideal for stealth installations in vehicles or equipment.
- An adhesive mount allows for easy installation on interior glass surfaces with minimal visual impact.
- The antenna comes with a 4-meter cable and an SMA(M) connector for quick integration with modems and signal boosters.
- It is compatible with CAT-M and NB-IoT (CAT-M2) technologies, allowing direct server data transfer without requiring gateways.
Application Areas:
- The antenna is suitable for vehicle installations that provide mobile broadband and in-vehicle phone kit connectivity.
- It supports M2M, IoT, and telematics applications that require a compact, discreet antenna placement.
- The device is designed for monitoring and sensor-based systems deployed in remote or mobile environments.
- It meets the needs of deployments requiring future-proof LTE and NR connectivity with global frequency coverage.
In the Box:
- 1 x RFI T5-4M-SMA Antenna
- 1 x 4m Cable with SMA(M) Connector
- 1 x Adhesive Mount Strip (Pre-Applied)
Documents:
RFI T5 Antenna Series - Datasheet
