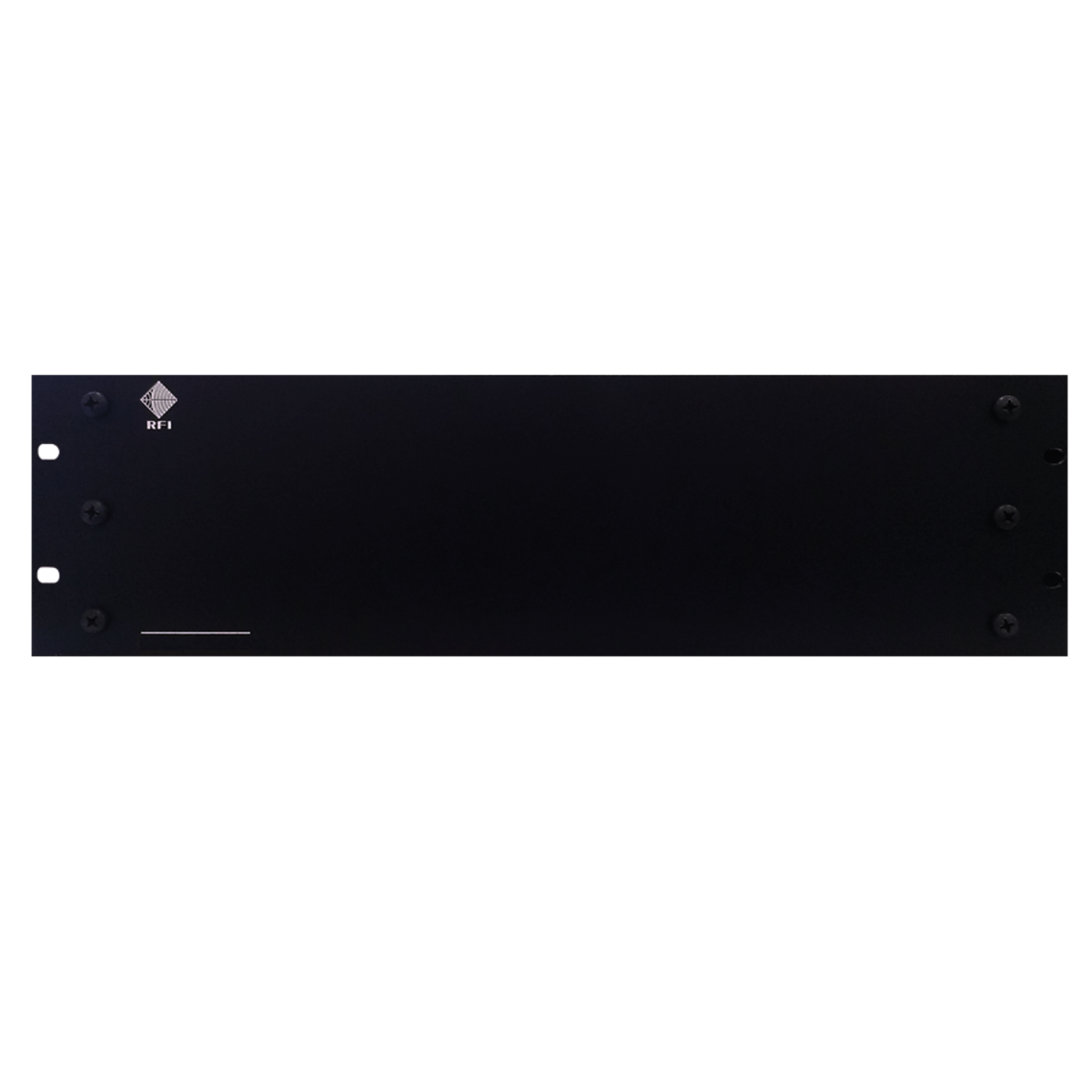

RFI TX0810-4051-BI Transmitter Hybrid Combiner, 88-108 MHz, 4 Channels, 50W

    RFI TX0810-4051-BI Transmitter Hybrid Combiner, 88-108 MHz, 4 Channels, 50W

      Product form
      Brand:
      RFI
      Item ID:
      168031702
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      TX0810-4051-BI
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Transmitter Hybrid Combiner; 88-108 MHz; 4 Channels; 50W offer an innovative and compact solution that simplifies the design, quotation and procurement.

      Price on Application

      Product Description

      RFI Transmitter Hybrid Combiner; 88-108 MHz; 4 Channels; 50W

      Transmitter Hybrid Combiners cater for most standard frequency sub-bands and channel spacings. The Tx combiner uses dual stage isolators and hybrid combining techniques to provide excellent Tx-Tx isolation and to minimise intermodulation (IM)impacts.

      Features:

      • 2 to 9 channel capacities
      • 50W or 100W Tx input power (per channel)
      • 100% Tx Duty Cycle
      • Open-circuit antenna port VSWR protection
      • Compact 19in rack mounting

      Documents:

      RFI TX0810-4051-BI Transmitter Hybrid Combiner - Datasheet

      Product Specifications

      MPN TX0810-4051-BI
      Brands RFI
      Channel capacity 4
      Connector N(F)
      Frequency band FM
      Frequency range mhz 88 - 108
      Height 20
      Insertion loss db 7.5 (typ)
      Isolation Tx-Tx: 60dB(typ) / Ant-Tx:40dB(typ)
      Length 45
      Mounting 19" Rack Mount
      Return loss db 18 (typ)
      Temperature range -30 to +60 C / -22 to +140 F
      Width 55
