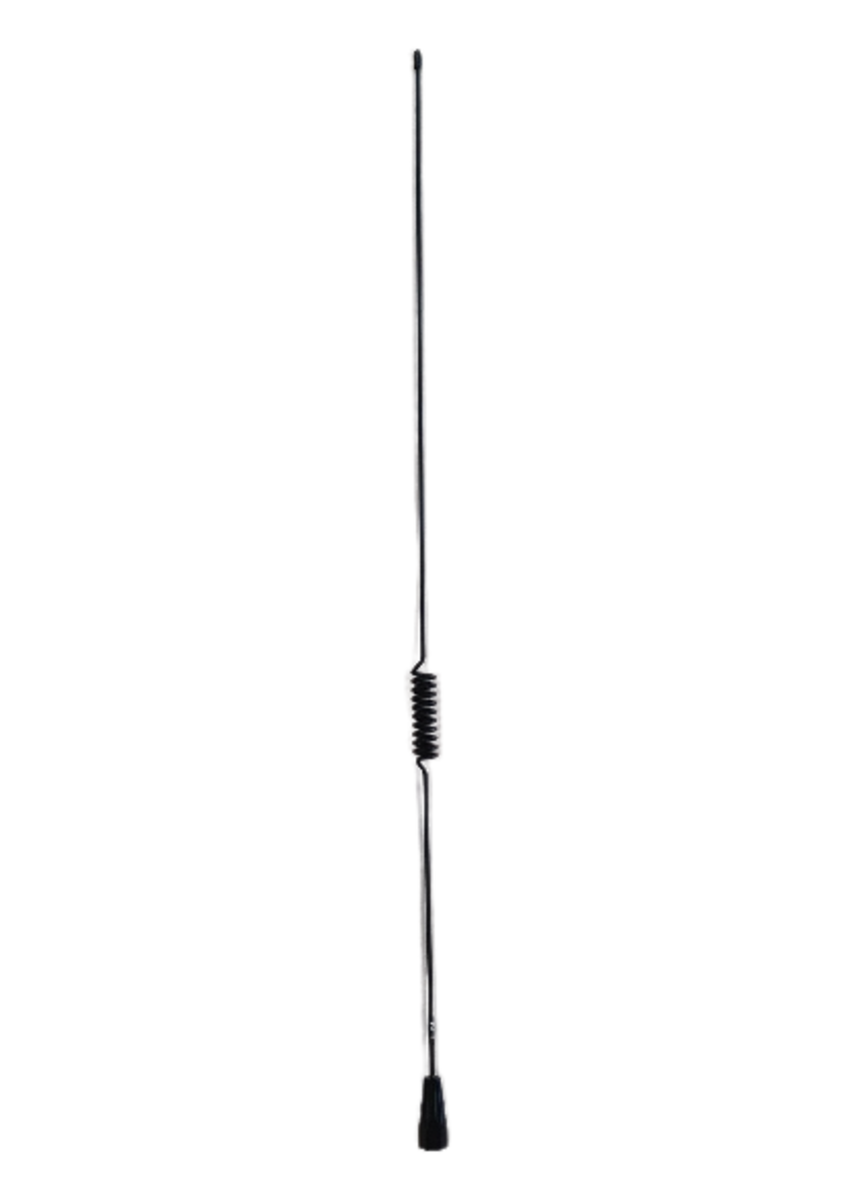

RFI CSW23 UHF Phasemaster Whip, 400-420 MHz, 4.5 dB - Black

    RFI CSW23 UHF Phasemaster Whip, 400-420 MHz, 4.5 dB - Black

      Product form

      RFI UHF 4.5 dB Phasemaster Whip (400-420 MHz), the most popular roof mounts due to unmatched performance and superior strength.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167015879
      MPN
      CSW23
      Shipping
      Please contact us for lead time
      Standard Warranty Global Insurance Except USA & Canada

      $45.20

      Export restricted item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI UHF 4.5 dB Phasemaster Whip (400-420 MHz); Black

        • Outstanding performance - precisely matched phasing coil separating e wave over ½ wave electrical elements
        • Supplied in colour coded bands then fine tuned in field with chart
        • Black flexible 17-7PH Stainless steel whip will always bounce back after knocks and bumps

        Documents:

        RFI CSW23 Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length (cm) 73
        Width (cm) 3
        Height (cm) 3
        Antenna Application Vehicle Antenna
        Antenna Port Connectors Not included, order separately
        Antenna Type Ground Dependent
        Band 400 - 420MHz
        Cable And Connector Not included, order separately
        Coverage Type Omni-directional
        Frequency [MHz] 400-420
        Frequency Band UHF 380-520 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 420
        Max Gain (dBd/dBi) 4.5
        MIMO Support No
        Min Frequency (MHz) 400
        Min Gain (dBd/dBi) 4.5
        Mount Supported Magnetic base
        Mount Supported - Detailed Magnetic base
        No. of Antenna Ports 1
        Nominal Gain [dBi] 4.5
        Power [W] 100
        Technologies Supported UHF
        Tuned Bandwidth 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
        Tuning Trim to frequency using supplied tuning chart
        VSWR 20 MHz @ <1.5:1 VSWR (<1.2:1 VSWR @ resonant frequency)
        Whip Length mm 720
        Whip Material 17-7 PH Stainless steel with black high gloss plating
