RFI CD4000 UHF Collinear Antenna, 380-400 MHz, 5 dB, 5m, FME-Female

    RFI CD4000 UHF Collinear Antenna, 380-400 MHz, 5 dB, 5m, FME-Female

      Product form
      Brand:
      RFI
      Item ID:
      167015563
      Export:
      Restricted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      CD4000
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI UHF 5 dB Collinear Antenna (380-400 MHz); 5m FME(F) is ideally suited to use in rural or fringe coverage areas where performance is paramount

      Sold-out/Backorder

      $196.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

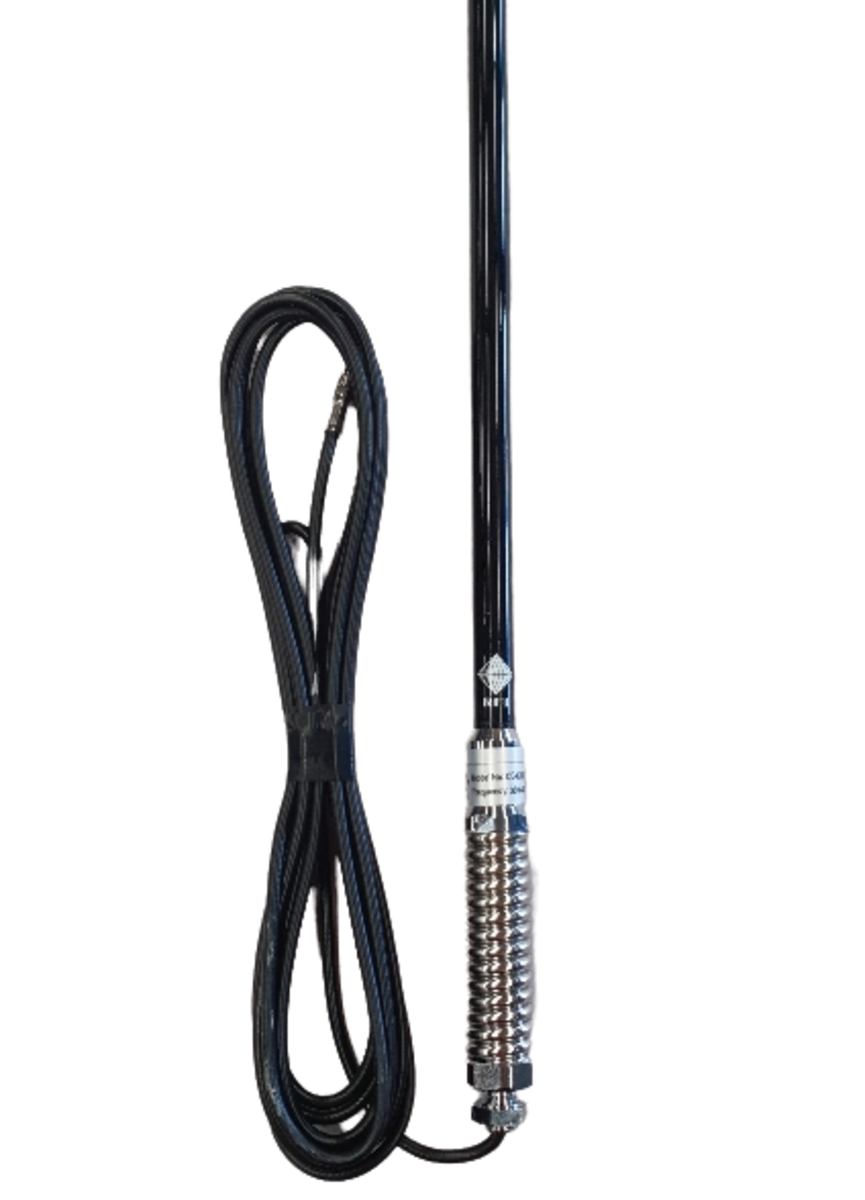

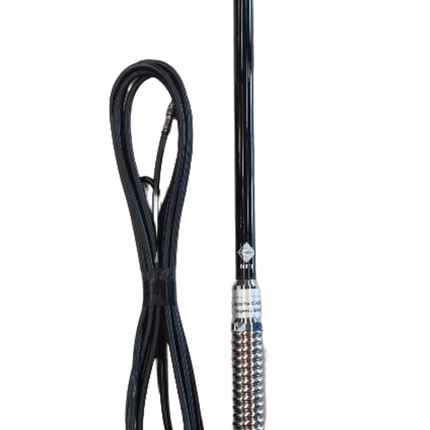

        RFI UHF 5 dB Collinear Antenna (380-400 MHz); 5m FME(F)

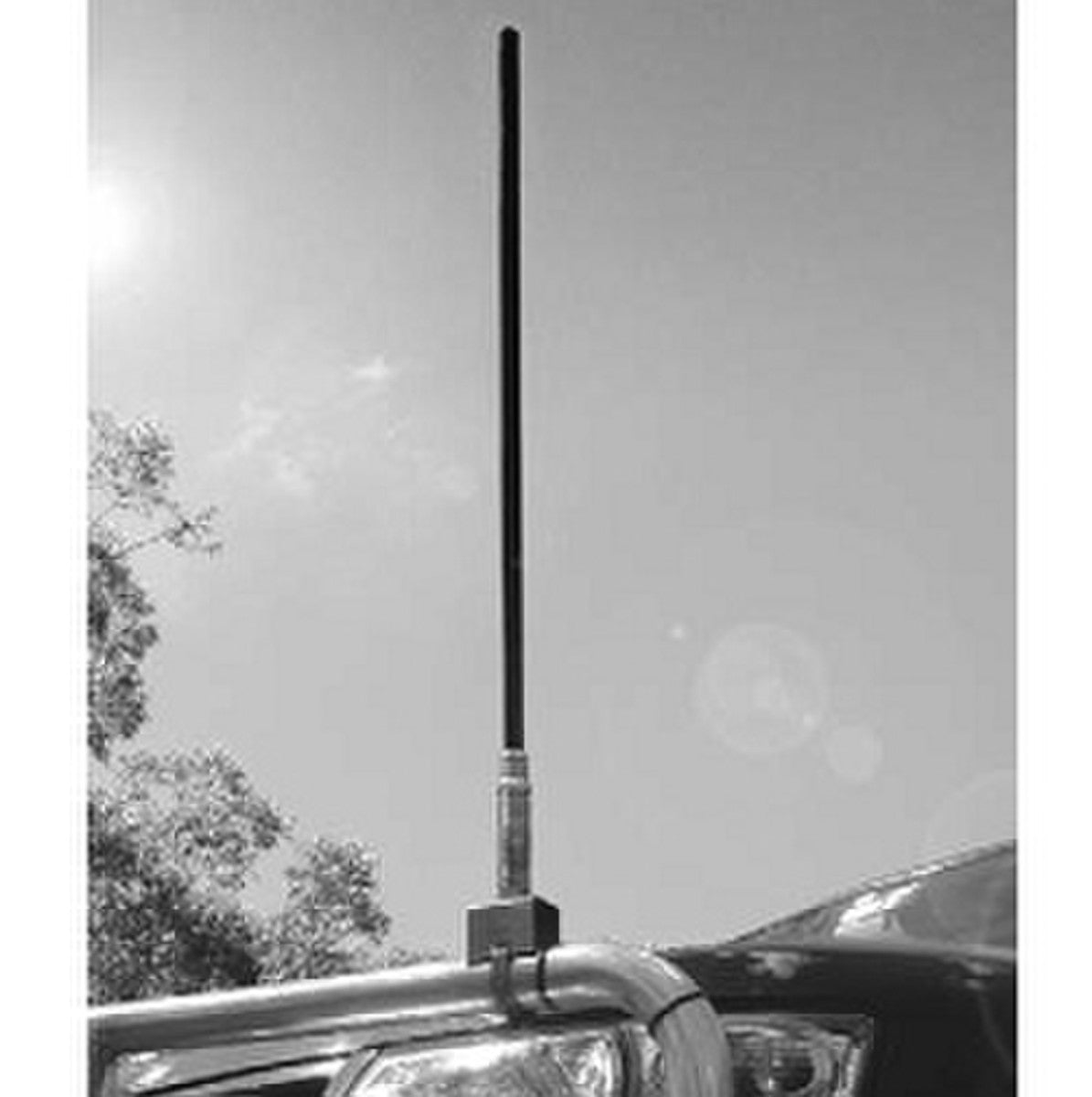

        The CD4000 antenna design is incredibly robust incorporating a patented PCB radiating element housed in fibreglass radome fitted to an integral heavy duty electro-polished spring. With a 13 mm stud mount and ground independent design the antenna is remarkably versatile and performance is assured in number of mounting positions such mirror, bull bar, gutter or fender mounts. It is ideal for use in commercial vehicles and four wheel drives and the ground plane independent design even allows for it to be used as a base station antenna.
        • 5 dBi gain
        • Robust design ideal for heavy duty applications
        • Patented PCB Collinear design offering the ultimate in pattern and gain stability
        • Full band coverage 380-400 MHz with no need to field tune
        • Available with GPS sub-assembly.

        Product Specifications

        MPN CD4000
        Antenna application Vehicle Antenna
        Antenna features Omnidirectional
        Antenna port connectors FME-101
        Antenna type Ground Independent
        Band 380 - 400 MHz
        Brands RFI
        Cable and connector 5m of 9006 low loss cable with an FME(F) connector
        Cable length m 3.0
        Cable type 9006
        Coverage type Omni-directional
        Frequency band UHF 380-520 MHz
        Frequency mhz 380-400
        Height 3
        Installation type Vehicle mounting
        Length 99
        Low pim No
        Max frequency mhz 400
        Max gain dbd dbi 5.0
        Mimo support No
        Min frequency mhz 380
        Min gain dbd dbi 5.0
        Mount supported Stud mount
        Mount supported detailed Stud mount
        Mounting Threaded Stud
        Nominal gain dbi 5
        Power w 50.0, 50
        Technologies supported UHF
        Tuned bandwidth 20MHz
        Tuning Full. No tuning required
        Vswr <1.5:1
        Whip material PCB radiating element housed in high impact fibreglass
        Width 3
