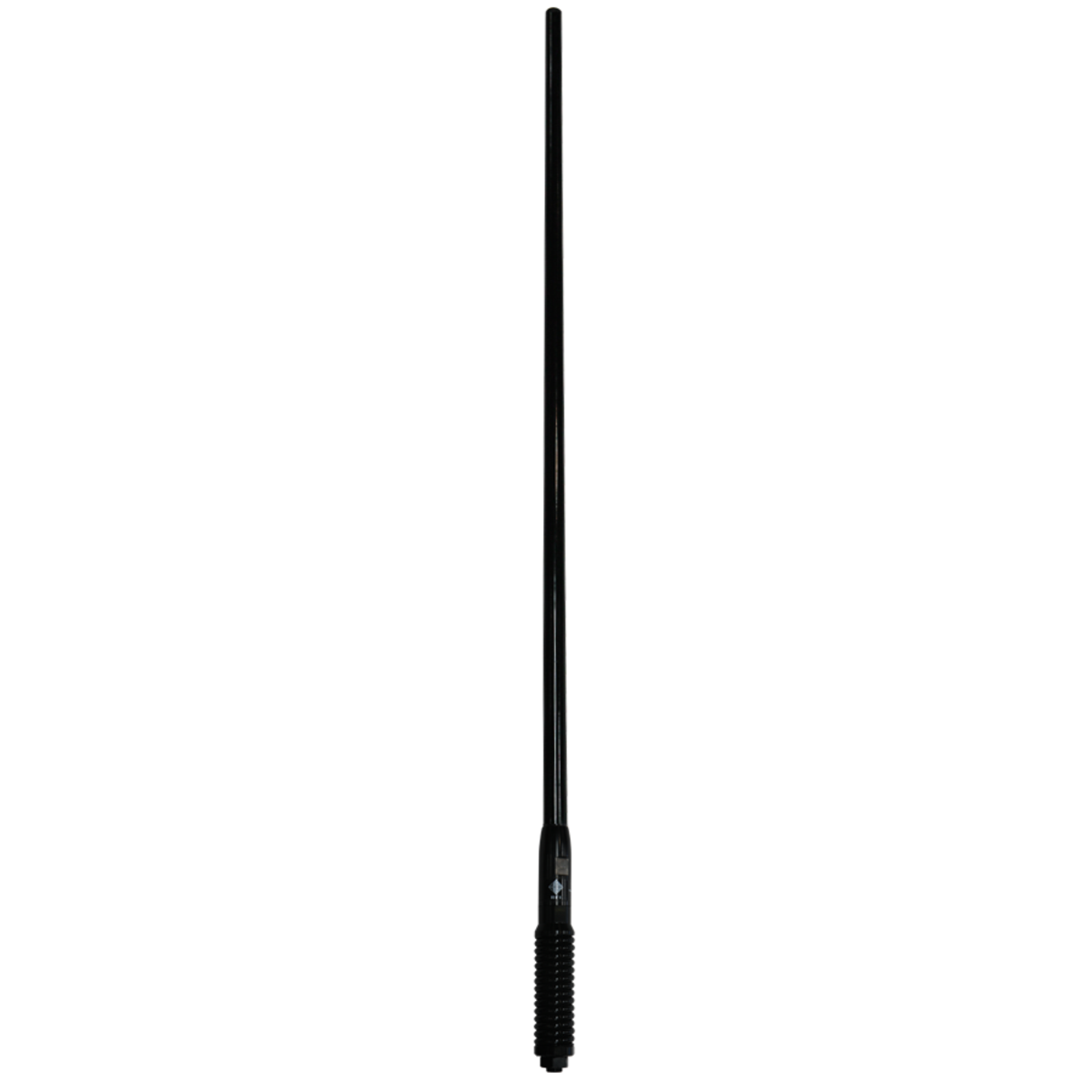

CDQ8000 antennas are know for their excellent performance, even in harsh environments, making them top choice for 4x4 vehicles and transports. Boasted to be based on the revolutionary technology Meanderâ„¢ and fibre glass material, the antenna has an excellent gain of 8 dBi to make long distance communication possible.

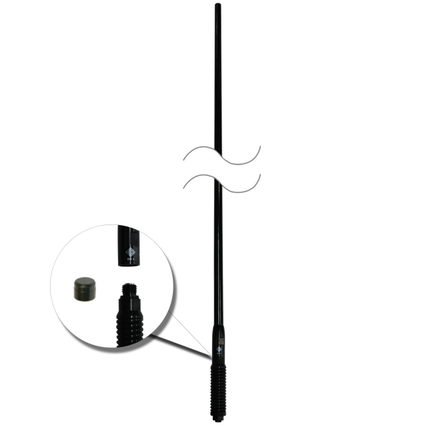

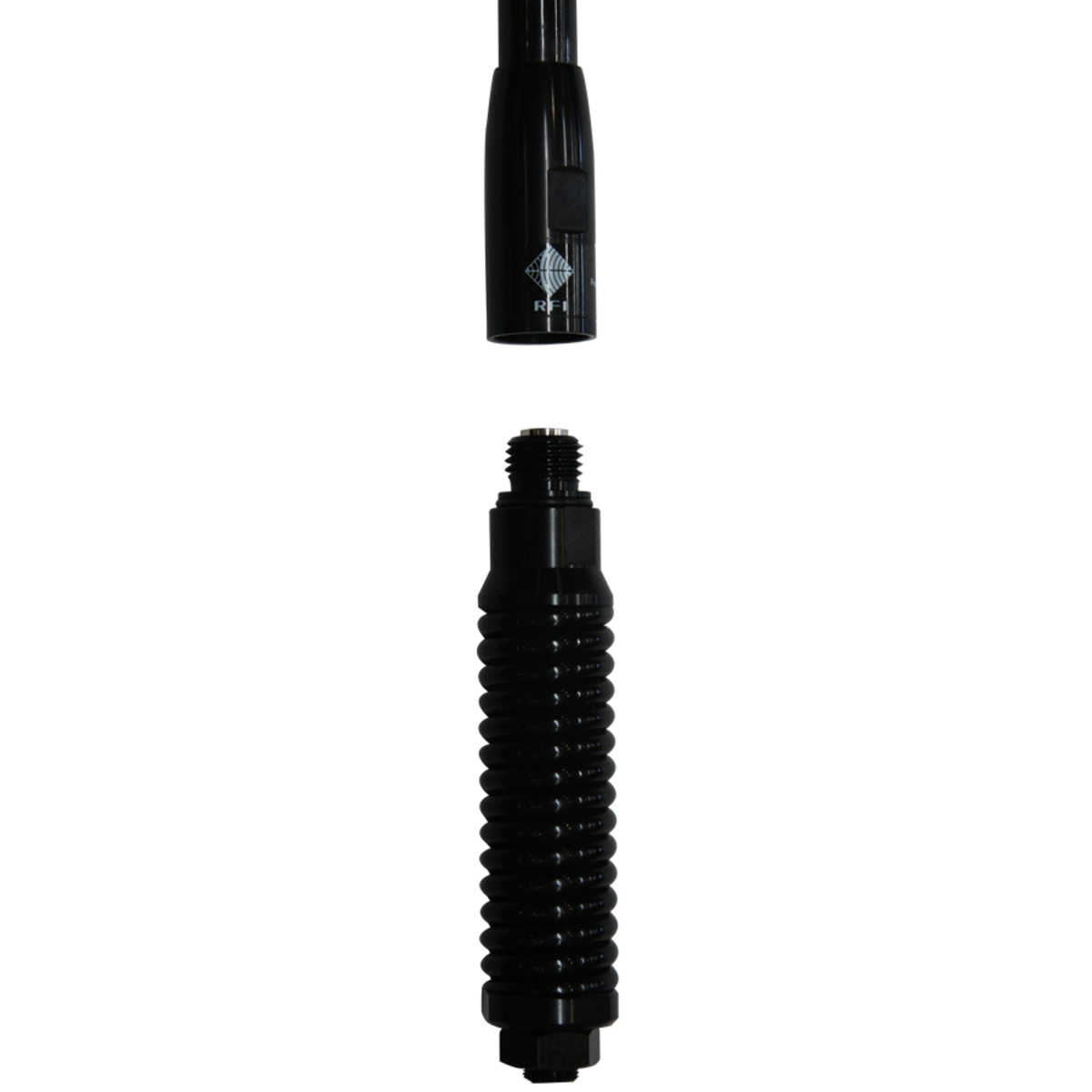

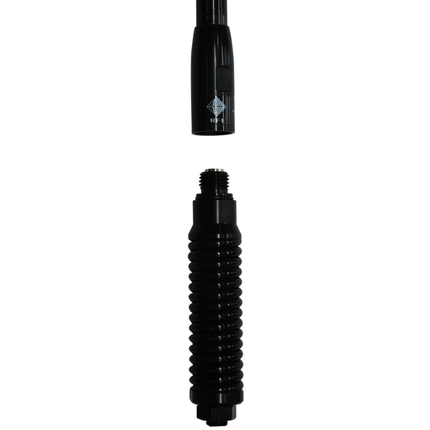

CDQ8100 is based on a heavy duty SS spring. A waterproof cap is supplied with the antenna and can be used when no whip is installed. This cap keeps dust and water away from antenna connectors.
Due to it's excellent ground independent performance, this antenna can also be used as a base station antenna for CBRS/UHF applications.
The antenna is fitted with a 5m 9006 (RG58) cable & FME(F) connector to make installation easy. A UHF(M) adapter is supplied which can be used to connect this antenna with the UHF radio system. All major radio brands like GME, Kenwood and Uniden are supported.
Product Features:
- Patented PCB based Meanderâ„¢ collinear design ensuring highly stable antenna gain
- 5 dBi (CDQ5000) and 8 dBi (CDQ8000) gain across the full 477 MHz UHF CB band.
- Q-Fitâ„¢ removable whip system
Application Areas:
- Designed for vehicles like 4x4 drives
- CDG8100 suits country areas, thanks to CDQ8100's 8 dBi gain
- CDQ34 suits metro areas due to its smaller height
Installation:
With a heavy-duty electro polished stainless steel spring, the CDQ5000 and CDQ8000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four-wheel drives and trucks.
- Bullbar mounting using a bullbar mount, recommended for 4x4 drives
- Other mounts like mirror and gutter mounts using the 13mm antenna stud
- See attached installation guide
In The Box:
- 1x RFI CDQ8100 antenna with spring base, 5m cable and FME(F) connector (MPN: CDQ8100-B)
- 1x UHF(M) adapter
- 1x RFI CDQ spring assembly cap
Documents:
RFI CDQ8000 Antenna - Datasheet
