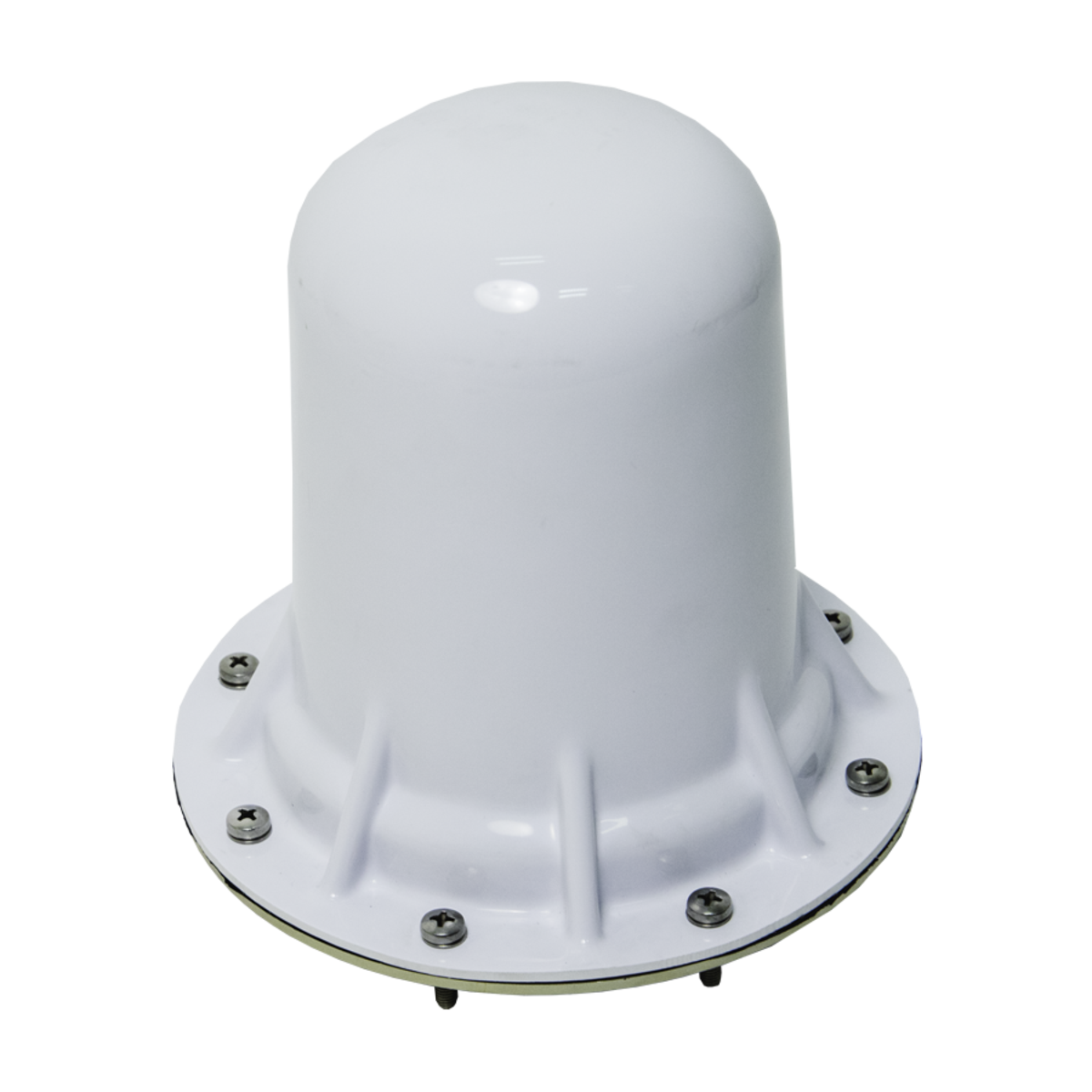

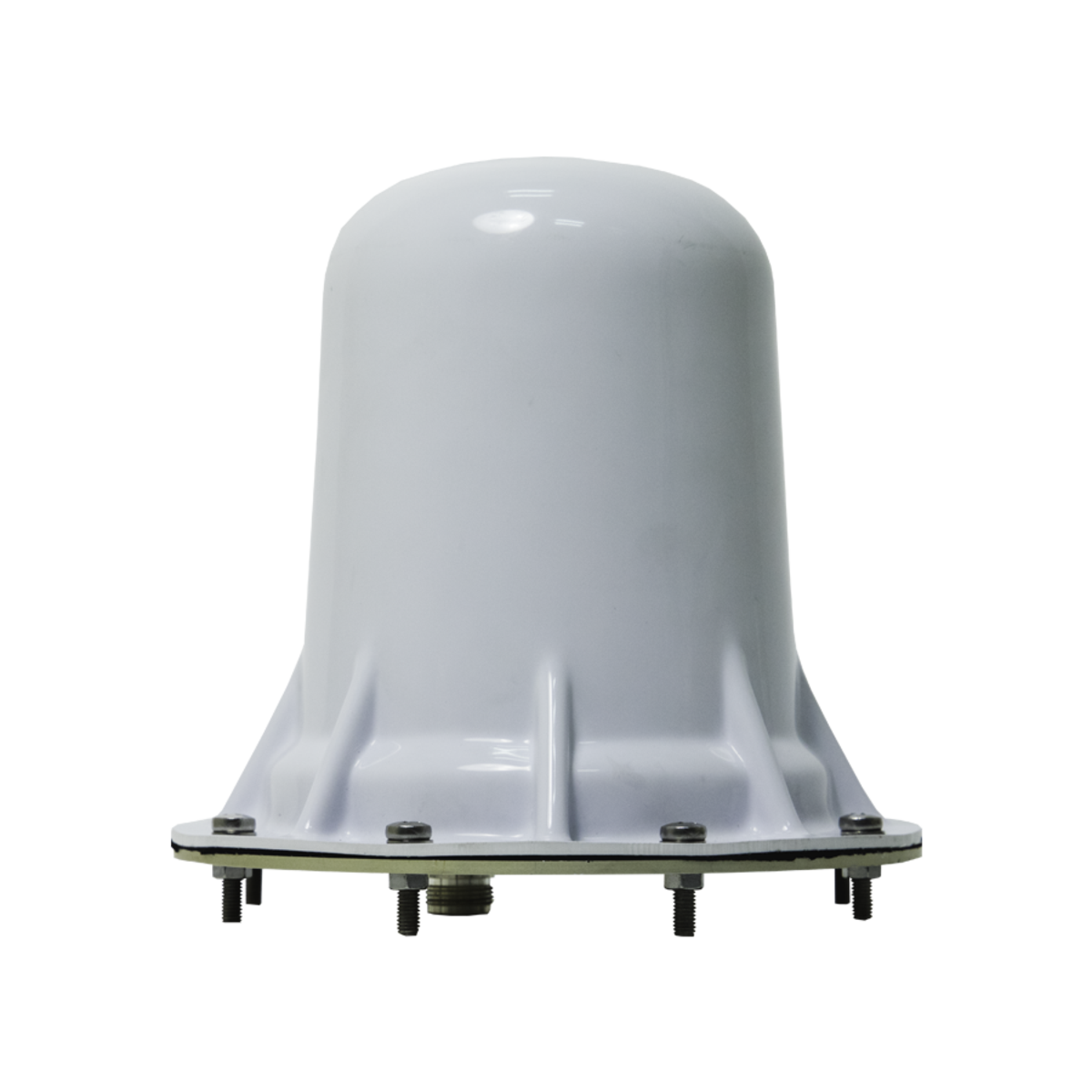

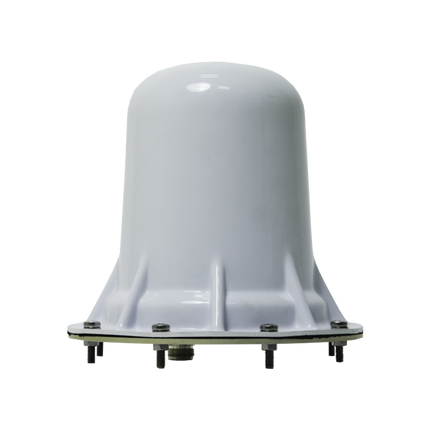

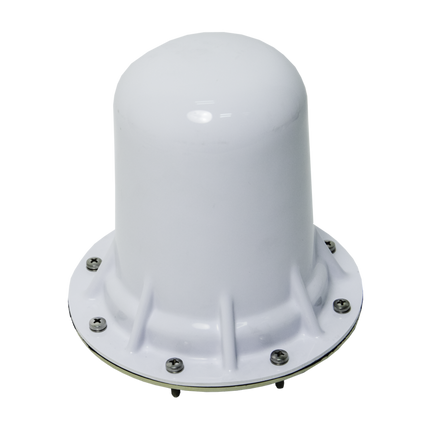

The RFI TLA-358X broadband UHF antenna is specifically engineered for transit vehicle installations where low overhead clearances are essential, such as buses, fire-fighting vehicles, railroad equipment, airport service vehicles, and construction equipment. These low-profile multiband antennas offer wideband coverage of specific frequencies without the need for field tuning. Encased in a high-impact molded ASA radome, they deliver durable performance even in harsh environmental conditions, ensuring long-lasting reliability. These low profile multiband antennas provide wideband coverage of specific frequencies without field tuning required. They are housed in a high impact moulded ASA radome for long-lasting performance under severe environmental conditions.

Features:

• Rugged Construction: The antenna is housed in a high-impact molded ASA radome for long-lasting performance.
• High Performance: Provides high performance when mounted on a flat surface.
• Low Profile: Designed for minimum exposure to theft or vandalism.
• Wideband Coverage: RFI UHF Transit Antenna offers wideband coverage of specific frequencies without the need for field tuning.

Electrical Specifications:

• Frequency Range: 400-470 MHz
• Gain: 3 dBi (peak)
• Tuned Bandwidth: Full

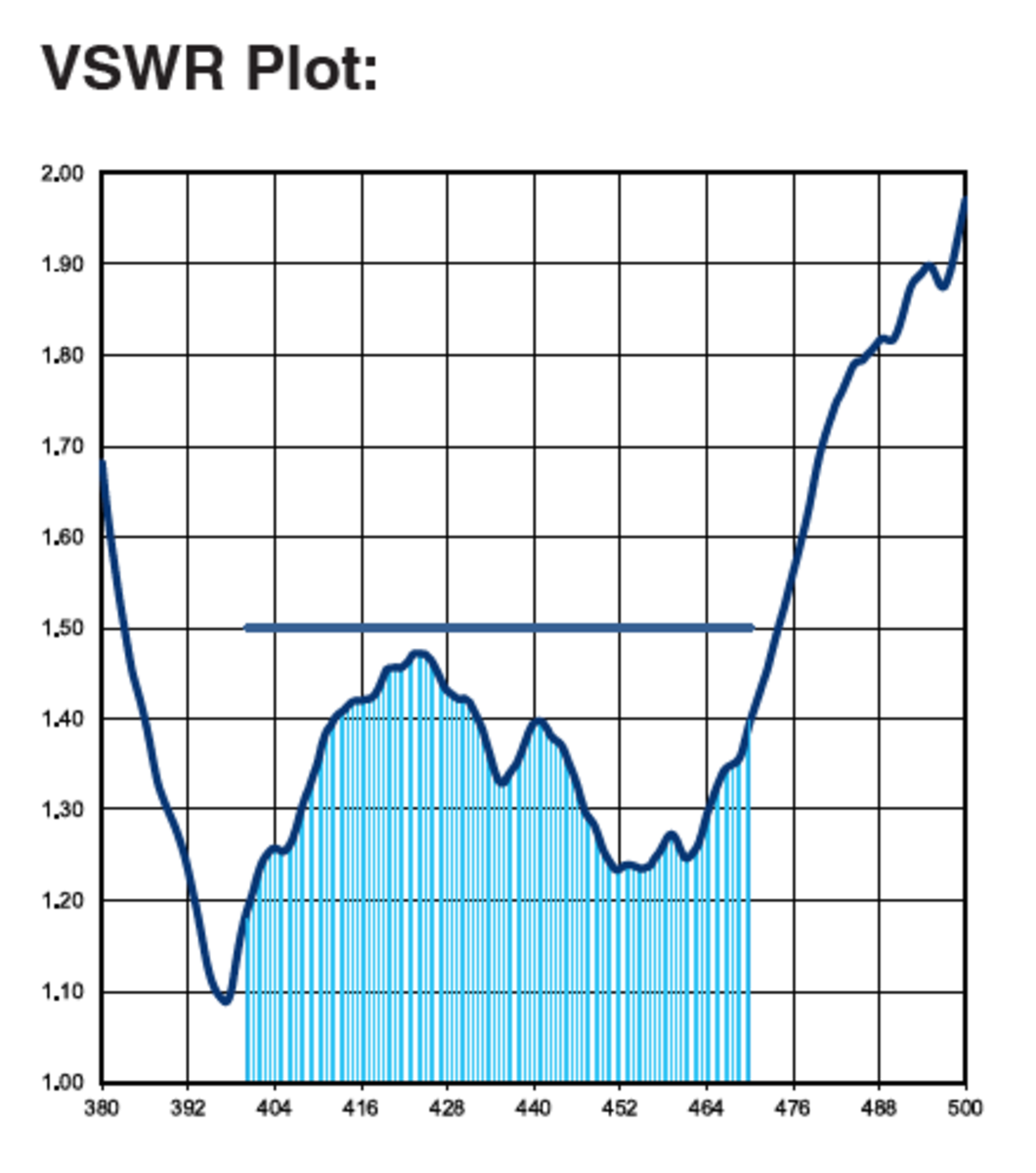

• VSWR (Return Loss): 1.5:1
• Polarisation: Vertical
• Impedance: 50 Ω
• Power Handling: 100 W
• Lightning Protection: DC Grounded

Mechanical Specifications:

• Radome: White moulded ASA
• Mounting: 8 mount screws / Ground plan required
• Dimensions: 160 x ø170 mm
• Ingress Protection: IP65
• Weight: 0.8 kg
• Connector: Integrated N type female

Documents:

RFI TLA358-X Transit Antenna - Datasheet RFI TLA358-X Transit Antenna - Installation Guide RFI TLA358-X Transit Antenna - Drilling Template
