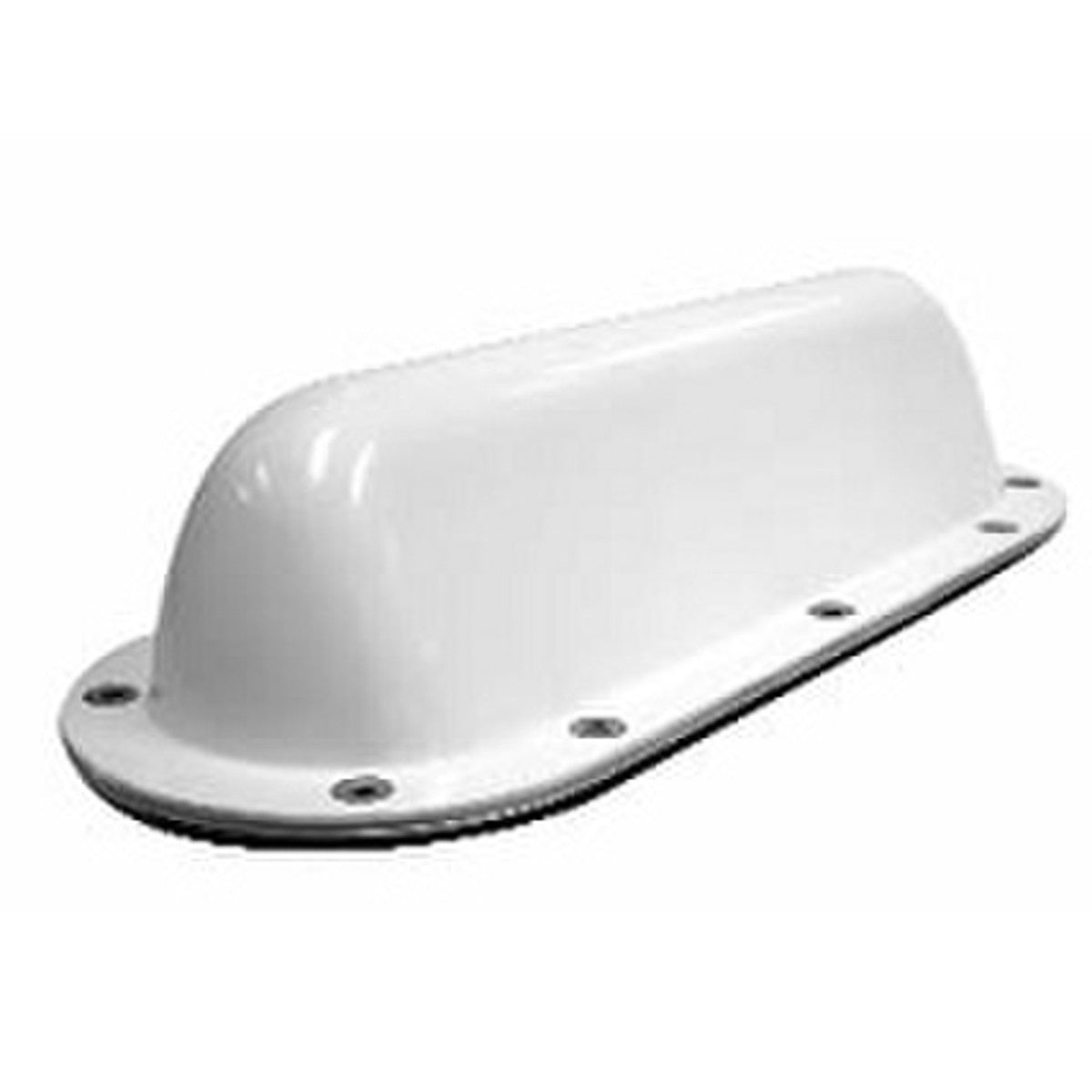

RFI TLA600-71 UHF Transit Antenna, 470-500 MHz, 2 dBi, N-Female

    RFI TLA600-71 UHF Transit Antenna, 470-500 MHz, 2 dBi, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      168016166
      MPN:
      TLA600-71
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI TLA600-71 Unity Transit Antenna (470-500 MHz); N(F), is low profile and used in applications where little or no ground plane exists.

      Available

      $279.06

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI UHF Unity Transit Antenna (470-500 MHz); N(F)

        These antennas (TLA600-71) can be used on buses, trucks, trains or in telemetry applications where the antennas are to be mounted on a fibreglass roof or similar non-conductive surface.

        Features:

        • Available with integrated active GPS antenna for asset tracking/vehicle location applications on request.
        • Functions with or without a ground plane, allowing one antenna to be used in an entire system, regardless of mounting application.
        • Performance equivalent to a 1/4 whip wave mounted in the centre of a metal roof
        • All antennas supplied pre-tuned to the nominated bands and require no field adjustment
        • Low profile (80 mm) height overall
        • Plastic moulded radome is attractive and durable, resistant to car washes, UV Stable and weatherproofed
        • Neoprene gasket seal provides excellent waterproofing of fitted antenna
        • Available in all major UHF bands

        Documents:

        RFI TLA600-71 Antenna - Datasheet RFI TLA600-71 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length 37.5
        Width 14
        Height 7.8
        Antenna Application Vehicle Antenna
        Antenna Port Connectors N (F)
        Antenna Type Low Profile Transit
        Band 470 - 500MHz
        Coverage Type Omni-directional
        Frequency [MHz] 470-500
        Frequency Band UHF 380-520 MHz
        Ingress Protection (IP) IP65
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 500
        Max Gain (dBd/dBi) 1
        MIMO Support No
        Min Frequency (MHz) 470
        Min Gain (dBd/dBi) 1
        Mount Supported Screw mount, Gasket
        Mount Supported - Detailed Screw mount, Gasket
        Mounting Screw and Gasket
        No. of Antenna Ports 1
        Nominal Gain [dBi] Unity
        Power [W] 50
        Technologies Supported UHF
        Termination N female connector. Alternative BNC connector also available (subject to MOQ) Optional GPS unit terminates with MCX connector
        Tuned Bandwidth Full. No tuning required
        Tuning Supplied pre-tuned
        VSWR <2.0:1
