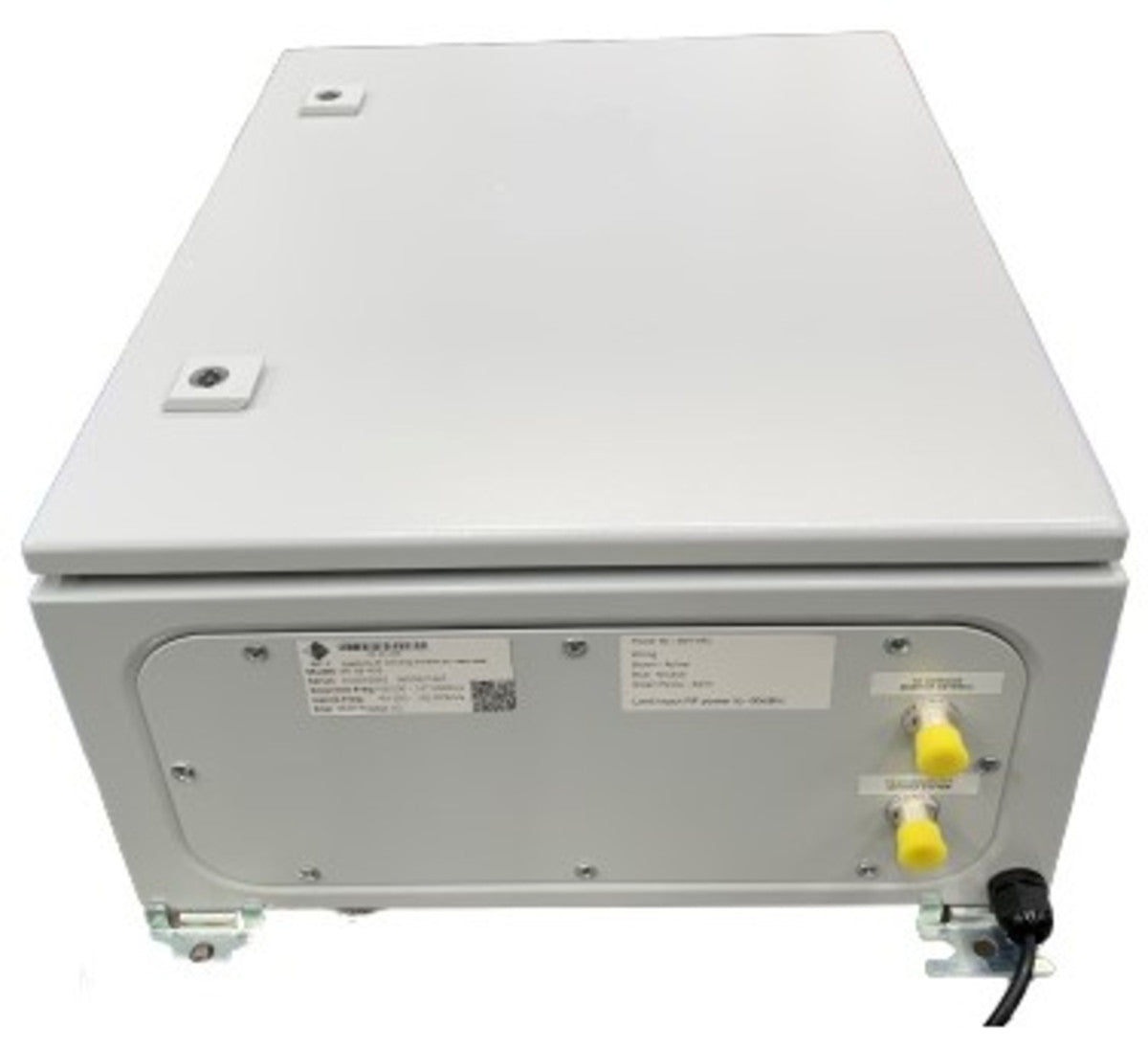

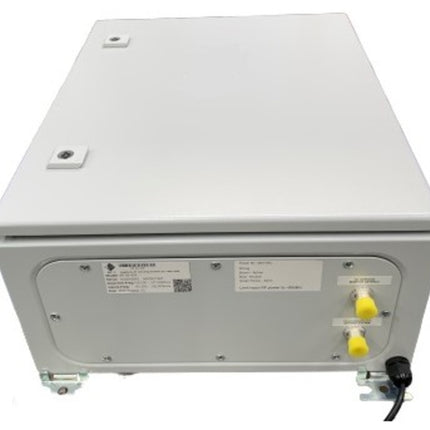

RFI VHF Bi-Directional Amplifiers (BDAs)
Depending on the model, these BDA can pass a 1 MHz to 2 MHz window in each direction in the selected frequency sub band. The BDA’s RF-transparent operation is compatible with most analogue and digital technologies. Communications content is passed without demodulation and network protocol features such as encryption and over-the-air-rekeying are also passed securely.
The BDA is available in standard and high-power variants with optional RF over Fibre interface and multiple power supply and battery backup options.
Features:
- Analogue and Digital compatible – supports most network technologies
- Maximum +40 dBm output power (1 carrier, high power models)
- Adjustable Gain of up to 90 dB (High power models)
- Available in multiple models supporting various pass bandwidths and Tx/Rx separations
- Compact IP-rated suits wall mountable enclosures
- Multiple Power Supply Options (12 VDC, 24 VDC, 48 VDC and 90-264 VAC)
- Available in Off-Air and Fibre-Fed models
- Optional Battery Backup
- Optional communications port for configuration and monitoring
Documents:
RFI 99-38 Series VHF Bi-Directional Amplifiers BDAs - Datasheet
