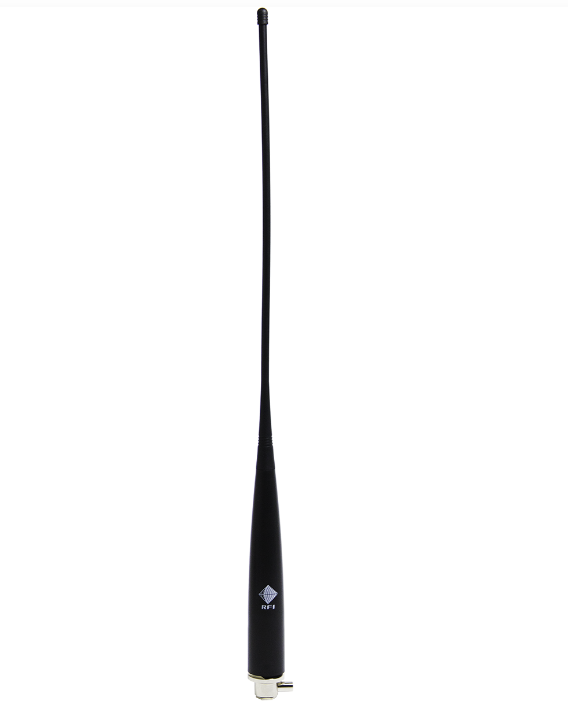

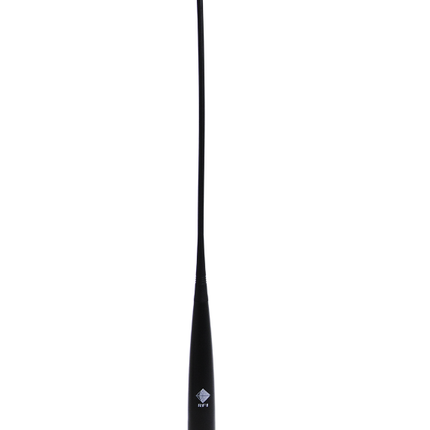

RFI CD30-148470-50 VHF/UHF Dual Band Antenna, 148-174/400-470 MHz, MBC Base, No Cable

    RFI CD30-148470-50 VHF/UHF Dual Band Antenna, 148-174/400-470 MHz, MBC Base, No Cable

      Product form
      Brand:
      RFI
      Item ID:
      168015550
      MPN:
      CD30-148470-50
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI VHF/UHF Dual Band Antenna (148-174 / 400-470 MHz); MBC Base No Cable, featuring rugged design, and no-tune installation.

      Available

      $165.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI VHF/UHF Dual Band Antenna (148-174 / 400-470 MHz); MBC Base No Cable, is a cutting-edge solution for seamless connectivity. This antenna ensures reliable communication across VHF and UHF frequencies with a no-tune design, rugged construction, and Australian innovation,

        Features:

        • Dual Band Coverage: Unmatched VHF (148-174 MHz) and UHF (400-470 MHz) frequencies for comprehensive communication capabilities.
        • Impact-resistant Housing: PCB based matching circuit is housed in a rugged, impact-resistant housing for maximum durability.
        • Rugged Durability: The antenna can withstand the toughest conditions and designed for long-lasting reliability in emergency response applications.

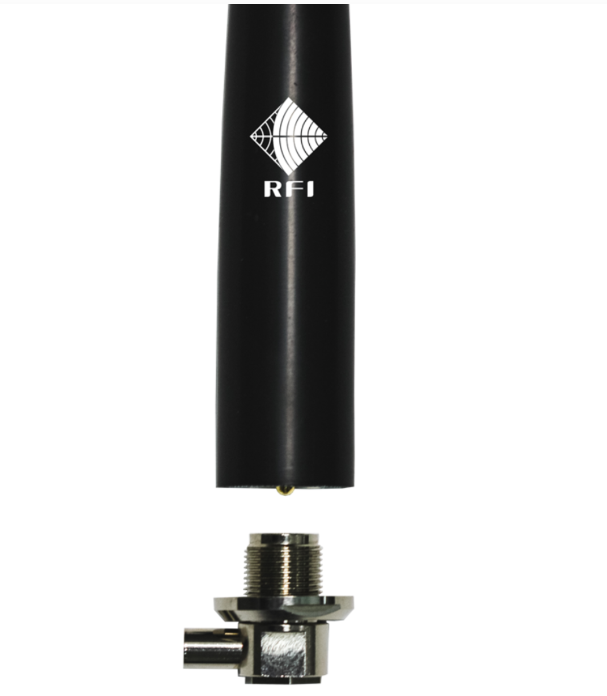

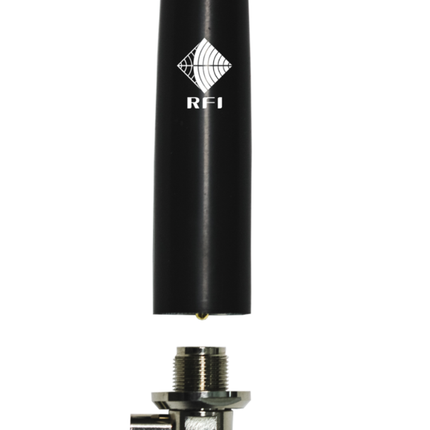

        • MBC (SO-239) Compatibility: Easy installation or upgrades with a standard SO-239 mobile base mount interface, facilitating seamless integration on public safety vehicles.
        • Excellent VSWR Performance: Consistent performance across frequencies, ensuring clear and reliable communication.
        • No-Tune Design: Hassle-free installation with no tuning required, providing immediate connectivity for emergency management personnel.
        • Ground Dependent: The CD30 is ground dependent and should be mounted on a ground plane or close to a ground plane.
        • Designed and manufactured in Australia.

        Documents:

        RFI CD30 Antenna - Datasheet RFI CD30-148470 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length 50
        Width 3
        Height 3
        Antenna Application Vehicle Antenna
        Antenna Configuration SISO
        Antenna Port Connectors No connector
        Antenna Type Omni
        Coverage Type Omni-directional
        Frequency [MHz] 148-174|400-470
        Frequency Band UHF 380-520 MHz, VHF High Band 118-180 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 470
        Max Gain (dBd/dBi) 4.5
        MIMO Support No
        Min Frequency (MHz) 148
        Min Gain (dBd/dBi) 1
        Mount Supported MBC base
        Mount Supported - Detailed MBC base
        No. of Antenna Ports 1
        Nominal Gain [dBi] 1 / 4.5
        Power [W] 50
        Technologies Supported UHF, VHF
        Tuned Bandwidth Full. No tuning required.

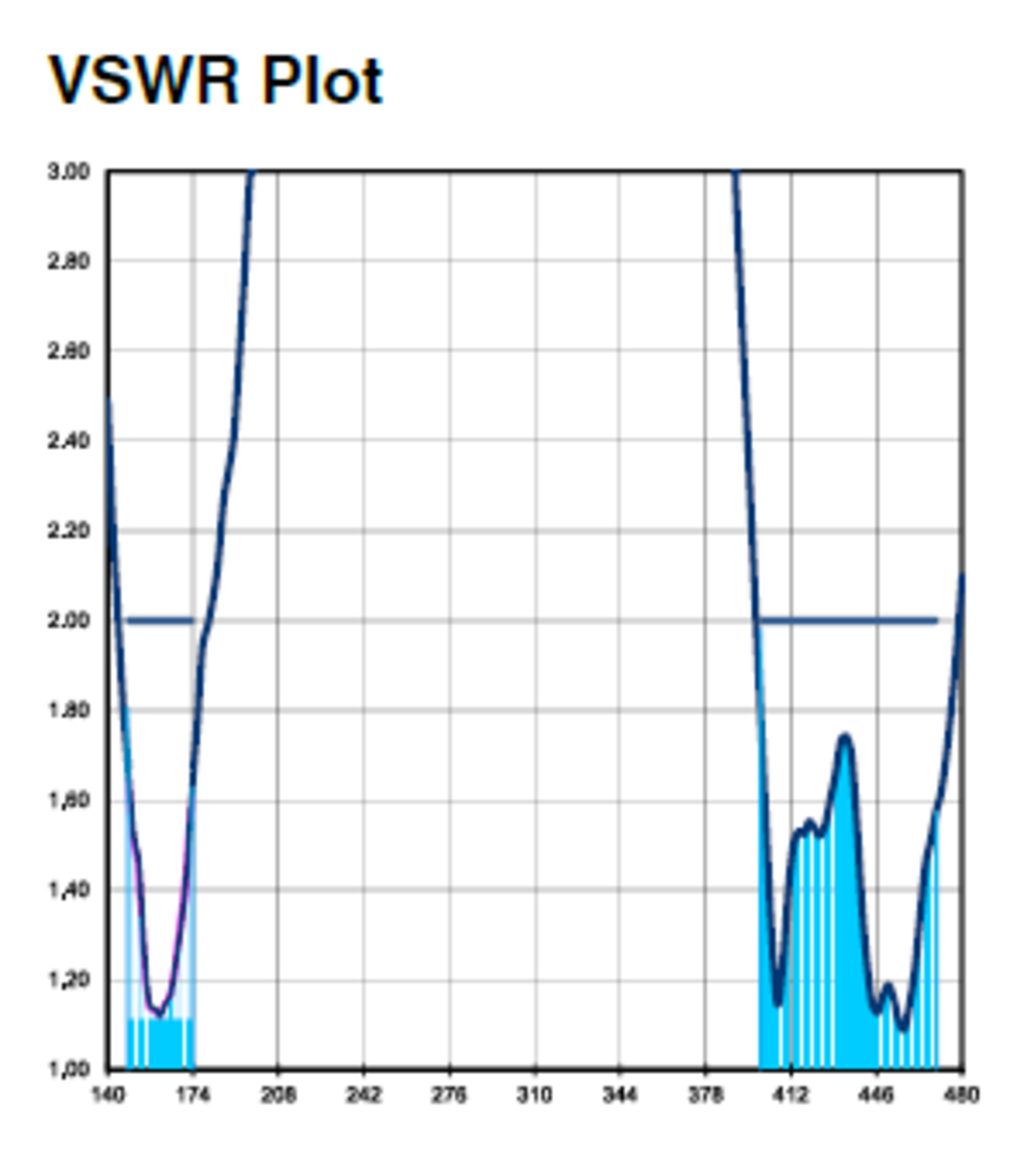

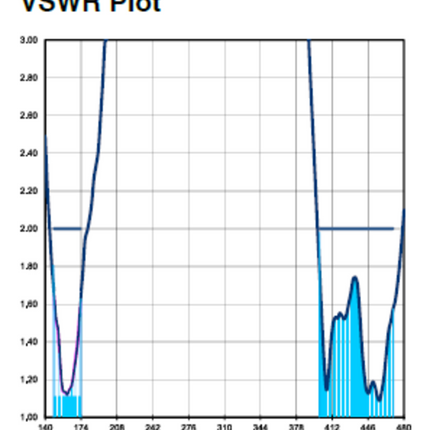

        VSWR <2.0:1
        Whip Length mm 496
