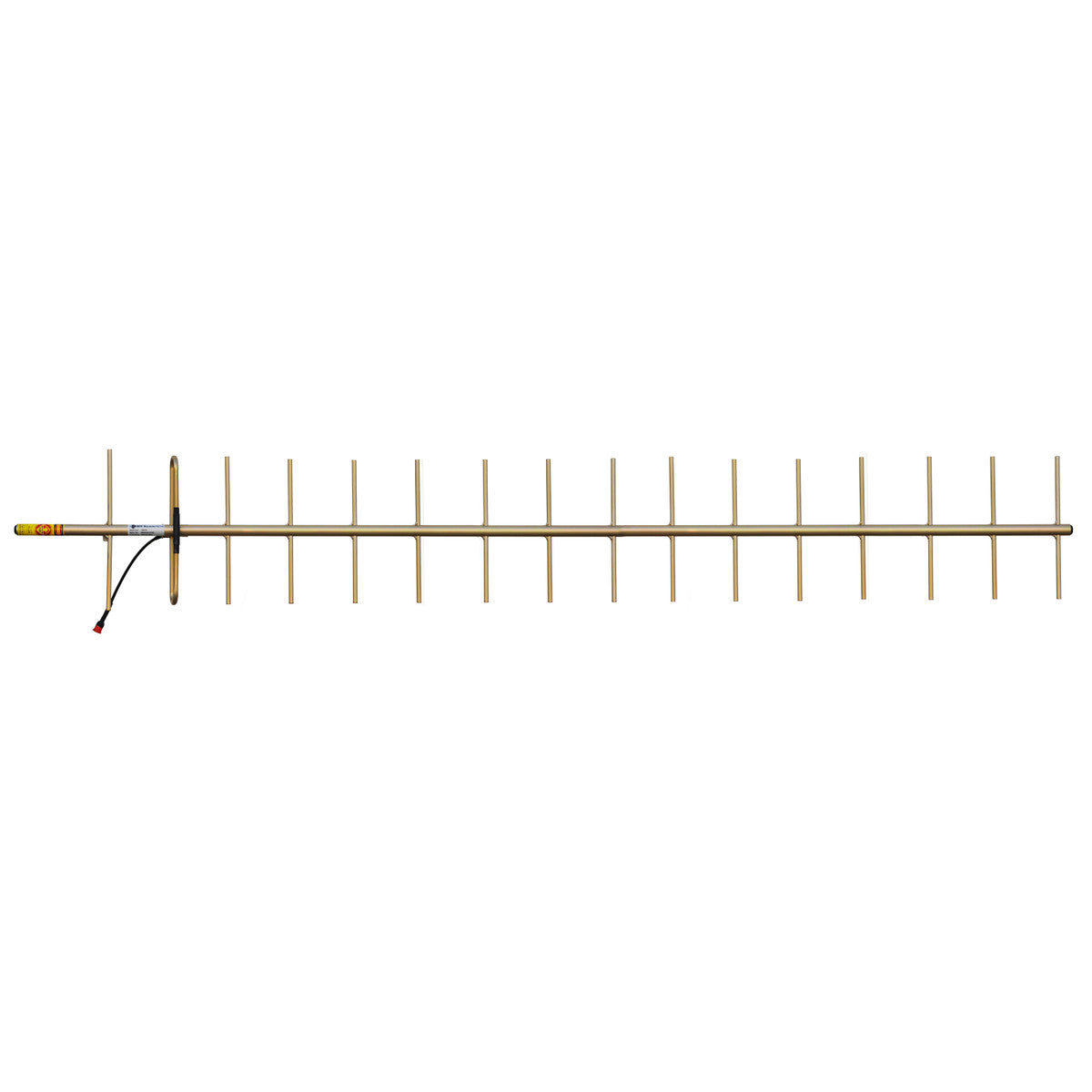

The RFI YB16-71 is a 16-element Yagi antenna built for high-gain directional communication in the 470–490 MHz frequency range. It is designed for applications requiring focused signal transmission and minimal interference.

Features:

• The RFI YB16-71 antenna provides 14 dBi gain for reliable long-range communication.
• This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
• The feed element is a full folded dipole, welded to the boom for bandwidth and durability.
• The passive elements are through-mounted and welded on both sides to minimize corrosion and intermodulation.
• The all-welded construction ensures long-term performance in outdoor environments.
• The alodine finish enhances grounding capability.
• It supports stacking or baying with PH and PHE series phasing harnesses.
• The antenna includes DC grounding on all elements for lightning protection and static dissipation.
• It is ideal for RF control and directional communication systems.

Application Areas:

• The antenna is ideal for point-to-point RF communication in industrial and control systems.
• This antenna is suitable for long-range directional links.
• It is designed for use in environments requiring high gain and low interference.

In the Box:

• 1x RFI YB16-71 16 Element Yagi Antenna

Accessories (sold separately):

Documents:

RFI YB16 Series Yagi Antennas - Datasheet
