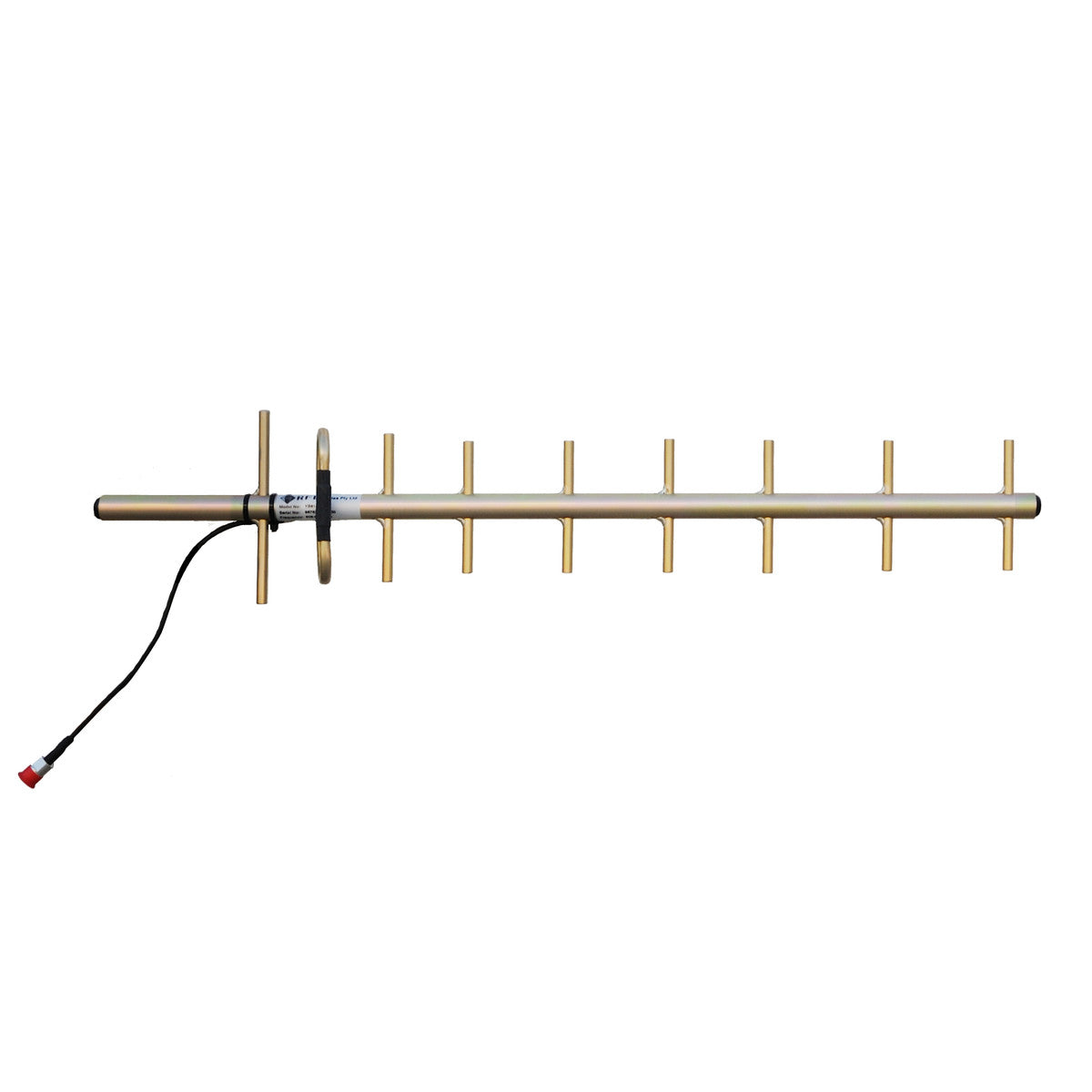

The RFI YB809-82 is a 9-element Yagi antenna engineered for high-performance directional communication in the 850-930 MHz frequency range. It offers 12 dBi gain and is designed for use in RF control, point-to-point, and point-to-multipoint systems. The antenna's narrow beamwidth and high front-to-back ratio help reduce interference, while its rugged construction ensures long-term reliability.

Product Features:

• The RFI YB809-82 antenna operates in the 850-930 MHz frequency range with 12 dBi gain.
• It features a narrow beamwidth and high front-to-back ratio for focused signal transmission.
• The all-welded construction provides durability and consistent performance.
• It includes a 9302 Durathene cable tail with an N female connector for weather resistance.
• The alodine finish enhances conductivity for effective grounding.
• It supports stacking or baying with PH and PHE series phasing harnesses.
• DC grounding on all elements offers lightning protection and static noise dissipation.
• The antenna is suitable for both horizontal and vertical polarization.
• It is designed for use in harsh environments and long-range communication.
• The design supports integration into a variety of RF systems.

Application Areas:

• This antenna is ideal for RF control and telemetry systems.
• It is suitable for directional communication in point-to-point or multipoint setups.
• The antenna can be used in industrial and remote outdoor environments.
• It is a practical choice for broadband communication across cellular and ISM bands.

In the Box:

• 1x RFI YB809-82 9 Element Yagi Antenna

Documents:

RFI YB809-82 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
