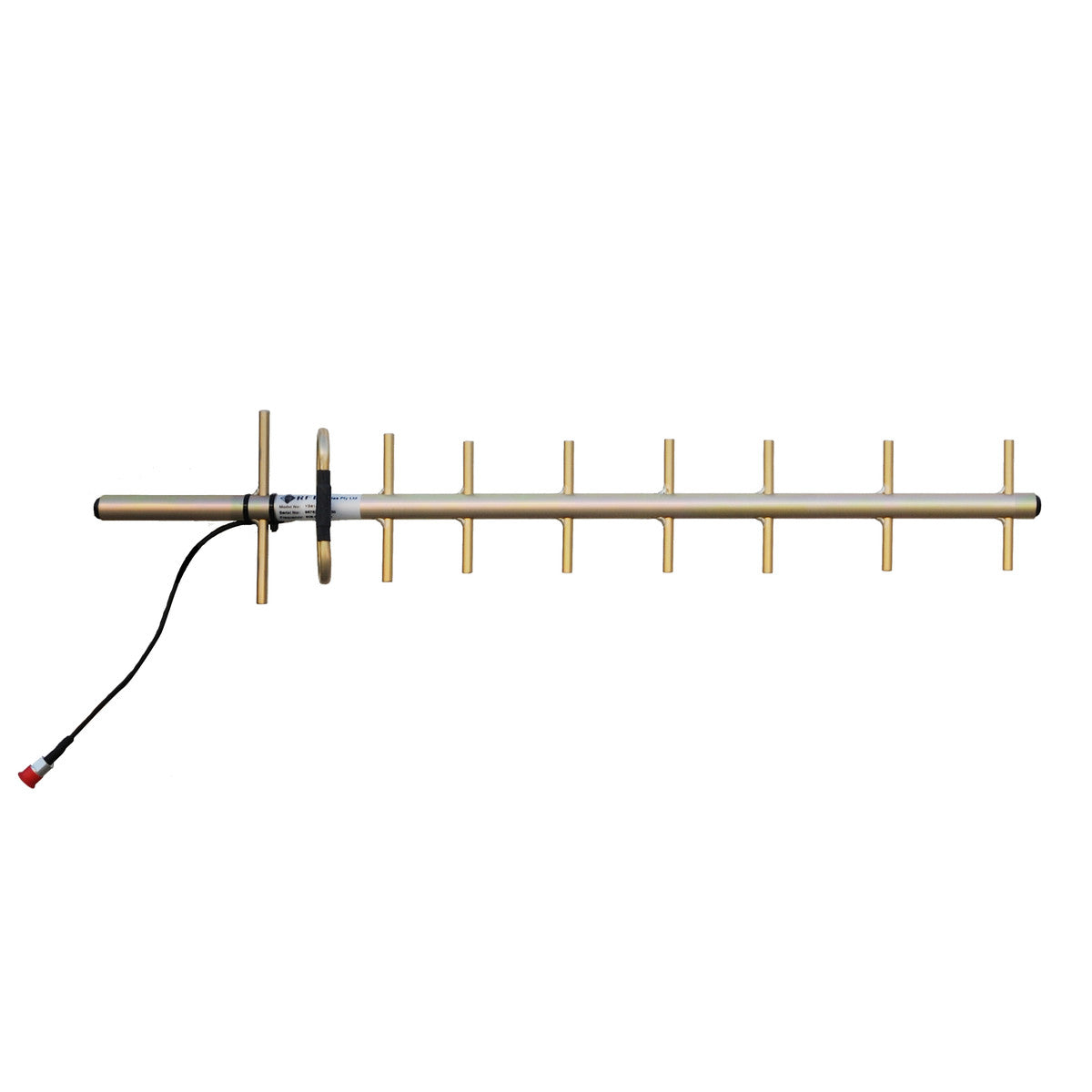

The RFI YB809-94 is a high-gain 9-element Yagi antenna designed for directional communication in the 890-960 MHz frequency range. With a gain of 12 dBi, it is ideal for RF control, point-to-point, and point-to-multipoint applications. The antenna features a narrow beamwidth and high front-to-back ratio, and is built with an all-welded structure for maximum reliability.

Product Features:

• The RFI YB809-94 antenna operates in the 890-960 MHz frequency range with 12 dBi gain.
• It features a narrow beamwidth and high front-to-back ratio to reduce interference.
• The all-welded construction ensures reliable performance in demanding environments.
• It includes a 9302 Durathene cable tail with an N female connector for enhanced durability.
• The alodine finish provides a conductive surface for effective grounding.
• It can be configured in stacks or bays using PH and PHE series phasing harnesses.
• DC grounding on all elements offers lightning protection and static dissipation.
• The antenna supports both horizontal and vertical polarization.
• It is suitable for long-range and high-precision communication links.
• The design supports integration into a wide range of RF systems.

Application Areas:

• This antenna is ideal for RF control and telemetry systems.
• It is suitable for directional communication in point-to-point or multipoint setups.
• The antenna can be used in industrial and remote outdoor environments.
• It is a practical choice for broadband communication across cellular and trunking bands.

In the Box:

• 1x RFI YB809-94 9 Element Yagi Antenna

Documents:

RFI YB809-94 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
