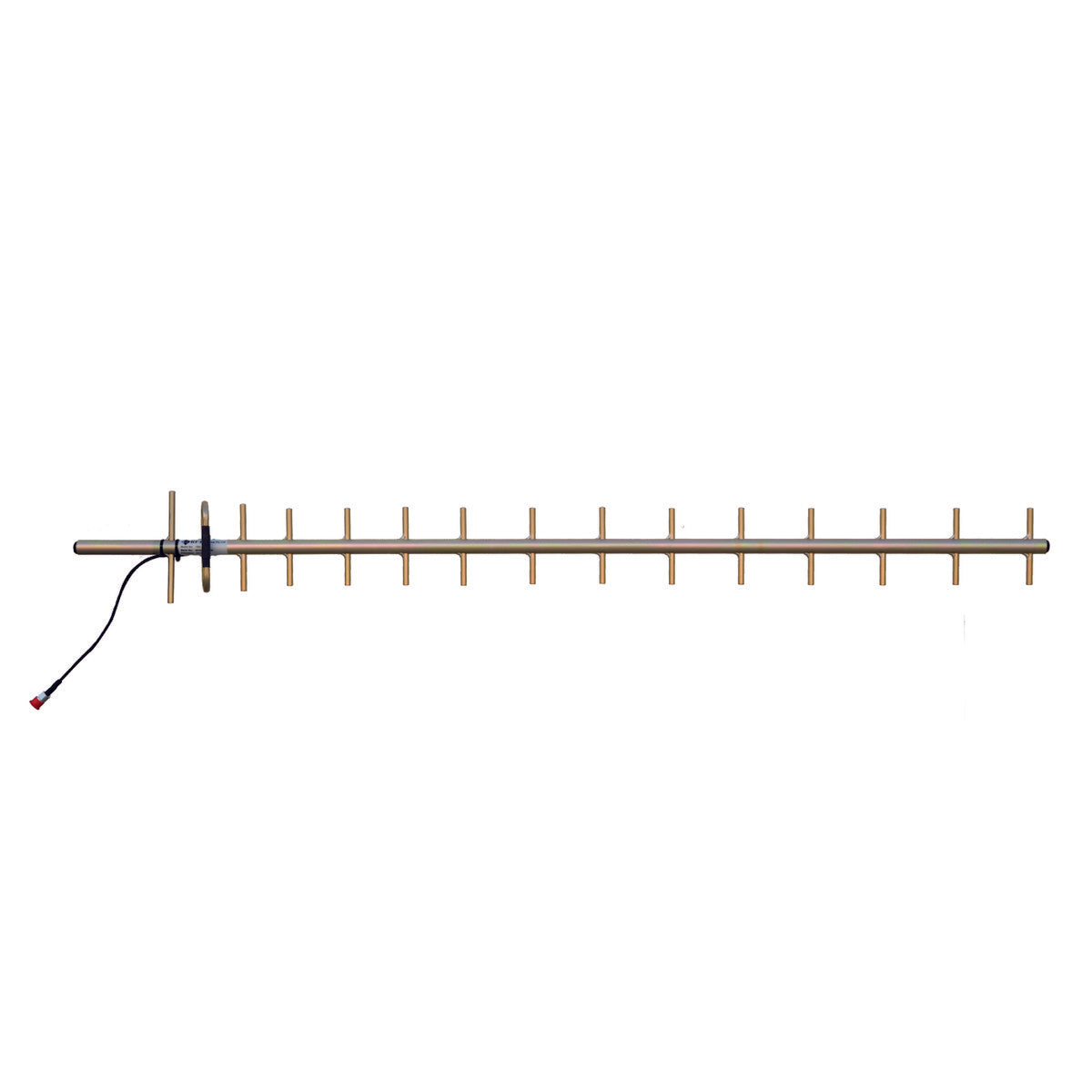

The RFI YB815-81 is a high-gain, 15-element Yagi antenna designed for directional communication in the 803–896 MHz frequency range. With a gain of 14 dBi, it is ideal for RF control, point-to-point, and point-to-multipoint applications. The antenna features a narrow beamwidth and high front-to-back ratio to minimize interference and enhance signal clarity. Its all-welded construction ensures long-term reliability, and the included 9302 Durathene cable tail with an N female connector offers superior resistance to weathering and abrasion.

Product Features:

• The RFI YB815-81 antenna operates in the 803–896 MHz frequency range with a gain of 14 dBi.
• It features a narrow beamwidth and high front-to-back ratio to reduce interference.
• The all-welded construction ensures maximum durability and consistent performance.
• It includes a 9302 Durathene cable tail with an N female connector for enhanced weather resistance.
• The standard alodine finish provides excellent conductivity for grounding.
• It can be configured in stacks or bays using PH and PHE series phasing harnesses for higher gain.
• DC grounding on all elements offers lightning protection and static noise dissipation.
• The antenna supports both horizontal and vertical polarization.
• It is suitable for long-range communication and high-precision RF applications.
• The design is optimized for use in demanding environments.

Application Areas:

• This antenna is ideal for RF control and telemetry systems.
• It is suitable for directional communication in point-to-point or multipoint setups.
• The antenna can be used in industrial and remote outdoor environments.
• It is a practical choice for broadband communication across trunking and cellular bands.

In the Box:

• 1x RFI YB815-81 15 Element Yagi Antenna

Documents:

RFI YB815-81 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
