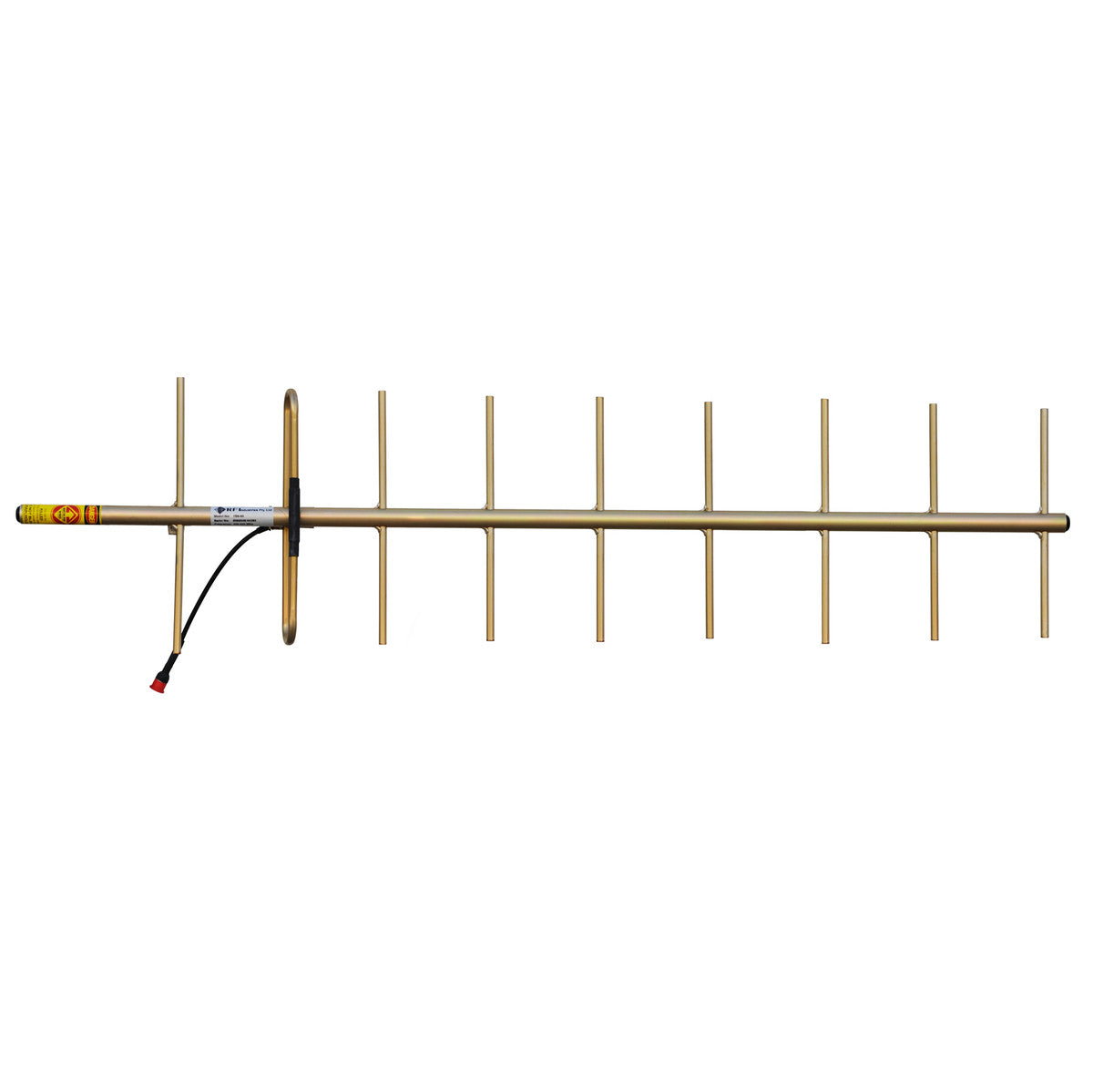

The RFI YB9-62 is a 9-element Yagi antenna offering 13 dBi gain for directional communication in the 480-520 MHz frequency range. It is built for high-performance RF applications requiring narrow beamwidth and minimal interference.

Features:

• The RFI YB9-62 antenna provides 13 dBi gain for strong directional signal transmission.
• This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
• The feed element is a full folded dipole, welded to the boom for durability and bandwidth.
• The passive elements are through-mounted and welded on both sides to minimize corrosion and intermodulation.
• The all-welded construction ensures long-term reliability in outdoor environments.
• The alodine finish enhances grounding capability.
• It supports stacking or baying with PH and PHE series phasing harnesses for higher gain setups.
• The antenna includes DC grounding on all elements for lightning protection and static dissipation.
• It is suitable for RF control and directional communication systems.

Application Areas:

• The antenna is ideal for point-to-point RF communication in industrial and control systems.
• This antenna is suitable for long-range directional links.
• It is designed for use in environments requiring high gain and low interference.

In the Box:

• 1x RFI YB9-62 9 Element Yagi Antenna

Documents:

RFI YB9-62 Yagi Antenna - Datasheet Phasing of RFI Yagi Antenna - Technical Guide
