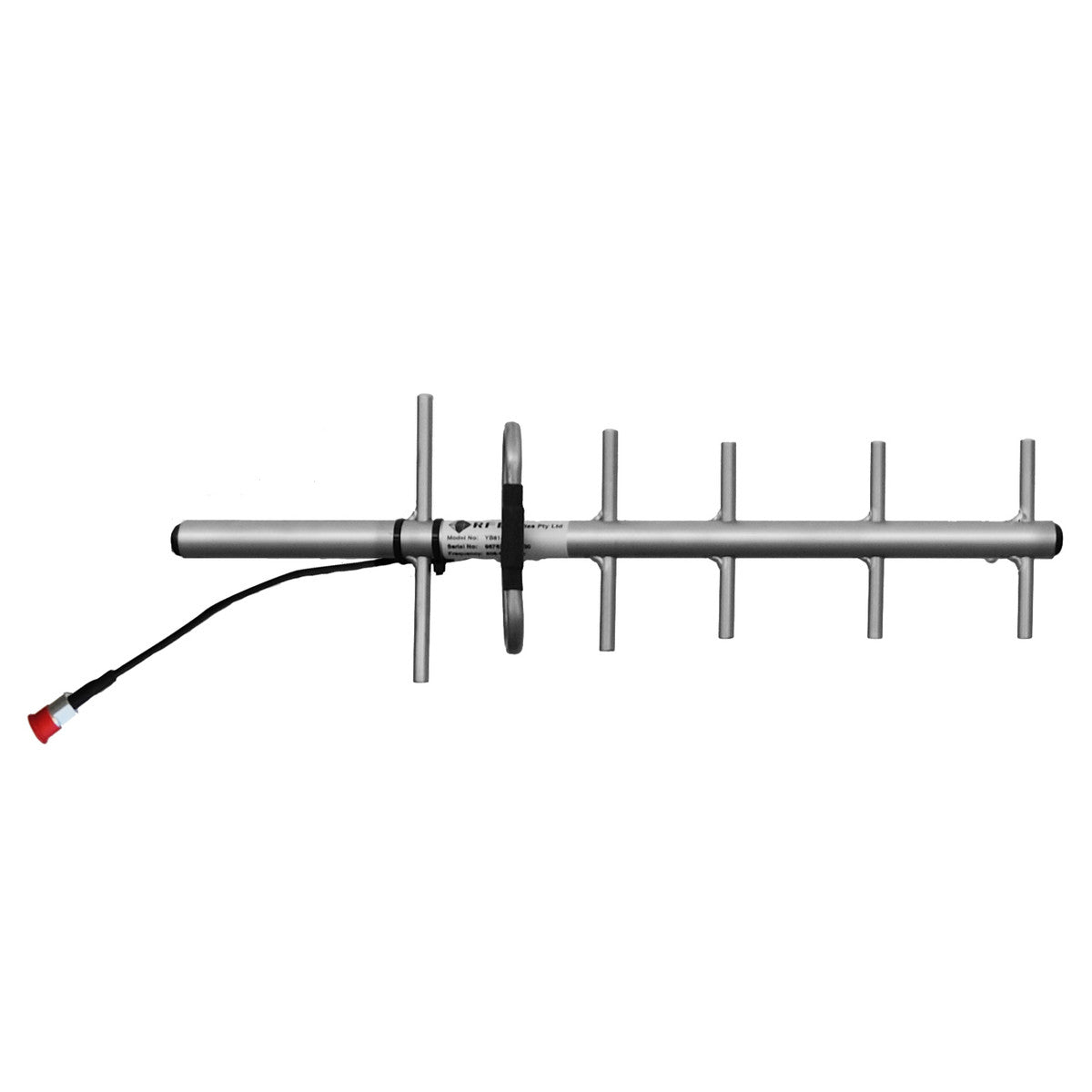

RFI YBS806-94 6 Element Stainless Steel Yagi Antenna, 890-960 MHz, 11 dBi

RFI YBS806-94 6 Element Stainless Steel Yagi Antenna, 890-960 MHz, 11 dBi

Available

Brand:
Item ID:
167014352
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YBS806-94
Send Request for Quote (RFQ) Discount Offers
RFI YBS806-94 is 6-element stainless steel Yagi antenna, 890–960 MHz with 11 dBi. It is ideal for point-to-point and point-to-multipoint applications.
Regular price $302.50
Regular price $0.00 Sale price $302.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YBS806-94 is a 6-element stainless steel Yagi antenna designed for high-performance directional communication in the 890–960 MHz frequency range. With a gain of 11 dBi, this antenna is ideal for point-to-point and point-to-multipoint applications where high directionality and durability are essential. Constructed from all-welded 316 grade stainless steel, it is specifically built to withstand extreme and corrosive environments while maintaining consistent performance. The antenna is terminated with an N female connector via a short 9302 Durathene cable tail, which offers superior resistance to weathering, abrasion, and bird damage.

Product Features:

  • The RFI YBS806-94 antenna is constructed from rugged 316 grade stainless steel, making it suitable for extreme and corrosive environments.
  • It operates within the 890–960 MHz frequency range and delivers a high gain of 11 dBi.
  • The narrow beamwidth and high front-to-back ratio ensure focused signal transmission and reduced interference.
  • It can be configured in stacks or bays using PH and PHE series phasing harnesses for higher gain applications.
  • The antenna is ideal for RF control, short or long-haul links, and other directional communication needs.
  • It features DC grounding on all elements for superior lightning protection and static noise dissipation.
  • The included 9302 Durathene cable tail with N female connector enhances durability and weather resistance.
  • The cable uses a PTFE dielectric and polyethylene jacket for improved performance and longevity.
  • The antenna is designed for reliable operation in both industrial and remote outdoor installations.
  • It provides identical performance to the YB806 series but with enhanced environmental resistance.

Application Areas:

  • This antenna is ideal for point-to-point communication links in industrial or remote environments.
  • It is suitable for point-to-multipoint systems requiring high directionality and signal clarity.
  • The antenna can be used in RF control systems and telemetry applications.
  • It is a practical choice for installations in corrosive or harsh climatic conditions.

In the Box:

  • 1x RFI YBS806-94 6 Element Stainless Steel Yagi Antenna

Documents:

RFI YBS806 Antenna - Datasheet RFI YBS806 Antenna - Technical Support Guide

Product Specifications

MPN YBS806-94
Antenna application Base Station Antenna
Antenna cable type 9302
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded stainless steel with polished finish
Coverage type Directional
Frequency band 900 MHz, 700 MHz, 800 MHz
Frequency mhz 890-960
Front back ratio db 15
Height 3
Horizontal beamwidth 62?
Installation type External mounting
Length 66
Low pim No
Max frequency mhz 960
Max gain dbd dbi 11
Mimo support No
Min frequency mhz 890
Min gain dbd dbi 11
Mount supported Clamp mount
Mount supported detailed UNV
Mounting area 100mm of 25mm diam. stainless steel
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with short 9302 cable tail
Torque nm 4
Tuned bandwidth Full band
Vertical beamwidth 50?
Vswr <1.5:1
Width 3
Wind gust km h >240
Wind thrust 25
