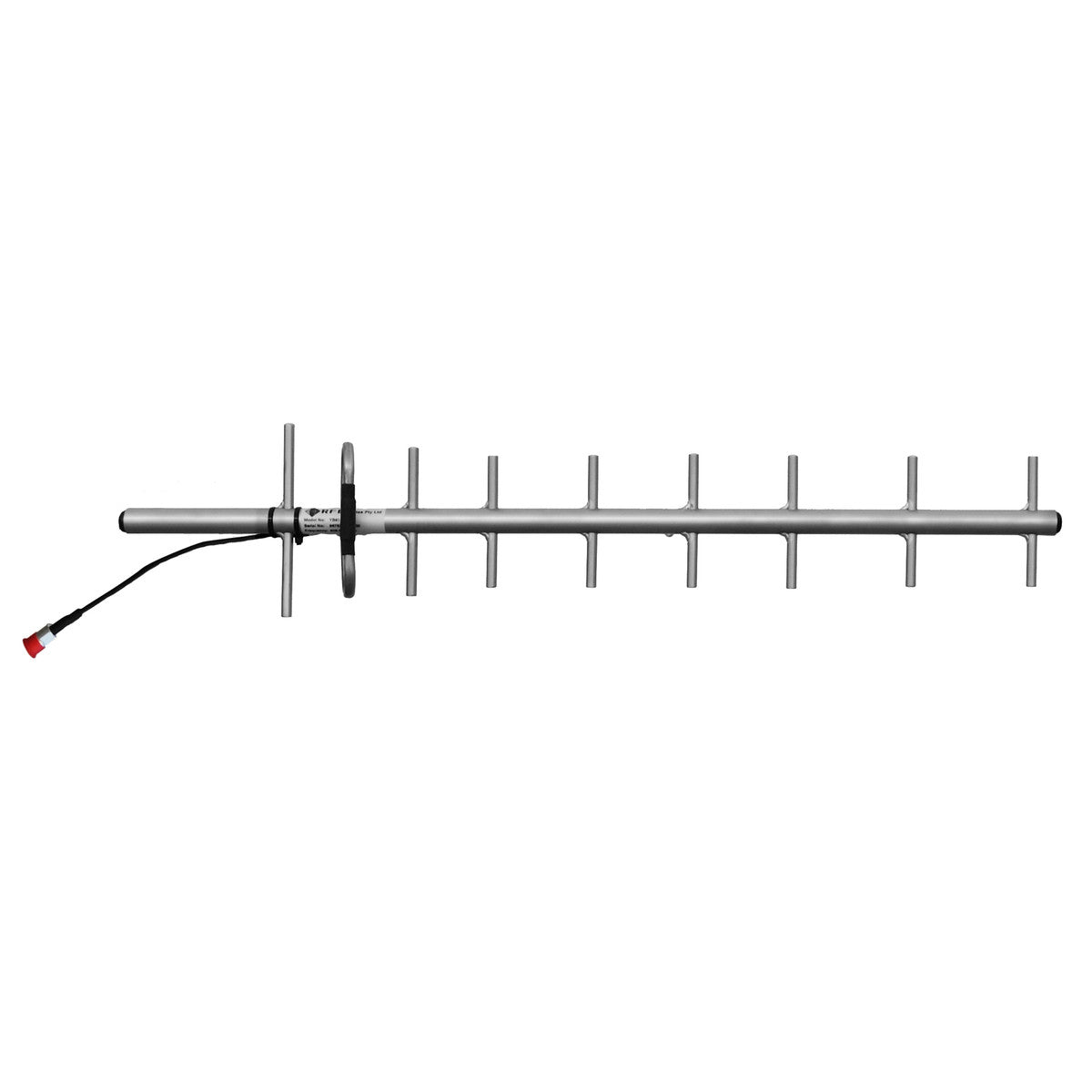

RFI YBS809-94 9 Element Yagi Antenna, 890-960 MHz, 13 dBi

RFI YBS809-94 9 Element Yagi Antenna, 890-960 MHz, 13 dBi

Available

Brand:
Item ID:
167014353
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
YBS809-94
Send Request for Quote (RFQ) Discount Offers
The RFI YBS809-94 is a 9-element Yagi antenna specifically engineered for 13 dBi directional communication within the 890–960 MHz frequency range.
Regular price $381.50
Regular price $0.00 Sale price $381.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI YBS809-94 is a 9-element Yagi antenna specifically engineered for high-performance directional communication within the 890–960 MHz frequency range. Built from all-welded 316-grade stainless steel, this antenna is designed to endure extreme and corrosive environments while maintaining consistent signal quality and structural integrity.

Product Features:

  • The RFI YBS809-94 antenna is constructed from rugged 316-grade stainless ste el, making it ideal for use in harsh and corrosive environments.
  • This model operates across the 890–960 MHz frequency range, and delivers 13 dBi gain.
  • The antenna includes a short 9302 Durathene cable tail with an N female connector, offering superior resistance to weathering, abrasion, and bird damage.
  • It is rated at -150 dBc Passive Intermodulation (PIM), ensuring high signal purity and minimal interference.
  • The design supports stacking or baying using PH and PHE series phasing harnesses for increased gain in advanced configurations.
  • This antenna is suitable for both point-to-point and point-to-multipoint communication setups.
  • It features DC grounding on all elements, offering effective lightning protection and dissipation of static noise.
  • The broadband capability allows it to cover trunking, cellular, and ISM bands.
  • The all-welded construction ensures long-term durability and consistent performance in demanding conditions.

Application Areas:

  • The antenna is ideal for RF control and telemetry systems operating in corrosive or extreme environments.
  • This model is well-suited for directional communication in both short and long-haul point-to-point links.
  • It is a reliable choice for point-to-multipoint applications requiring high directionality and low interference.
  • The design makes it suitable for industrial, coastal, and remote outdoor installations where durability is essential.

In the Box:

  • 1x RFI YBS809-94 9 Element Stainless Steel Yagi Antenna

Documents:

RFI YBS809 Antenna - Datasheet RFI YBS809 Antenna - Technical Support Guide

Product Specifications

MPN YBS809-94
Antenna application Base Station Antenna
Antenna cable type 9302
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded stainless steel with polished finish
Coverage type Directional
Frequency band 900 MHz, 700 MHz, 800 MHz
Frequency mhz 890-960
Front back ratio db 15
Height 3
Horizontal beamwidth 48?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 960
Max gain dbd dbi 13
Mimo support No
Min frequency mhz 890
Min gain dbd dbi 13
Mount supported Clamp mount
Mount supported detailed UCR1
Mounting area 100mm of 25mm diam. stainless steel
No of antenna ports 1
Power w 100
Technologies supported UHF
Termination N female with short 9302 cable tail
Torque nm 16
Tuned bandwidth Full band
Vertical beamwidth 41?
Vswr <1.5:1
Width 3
Wind gust km h 240
Wind thrust 44
