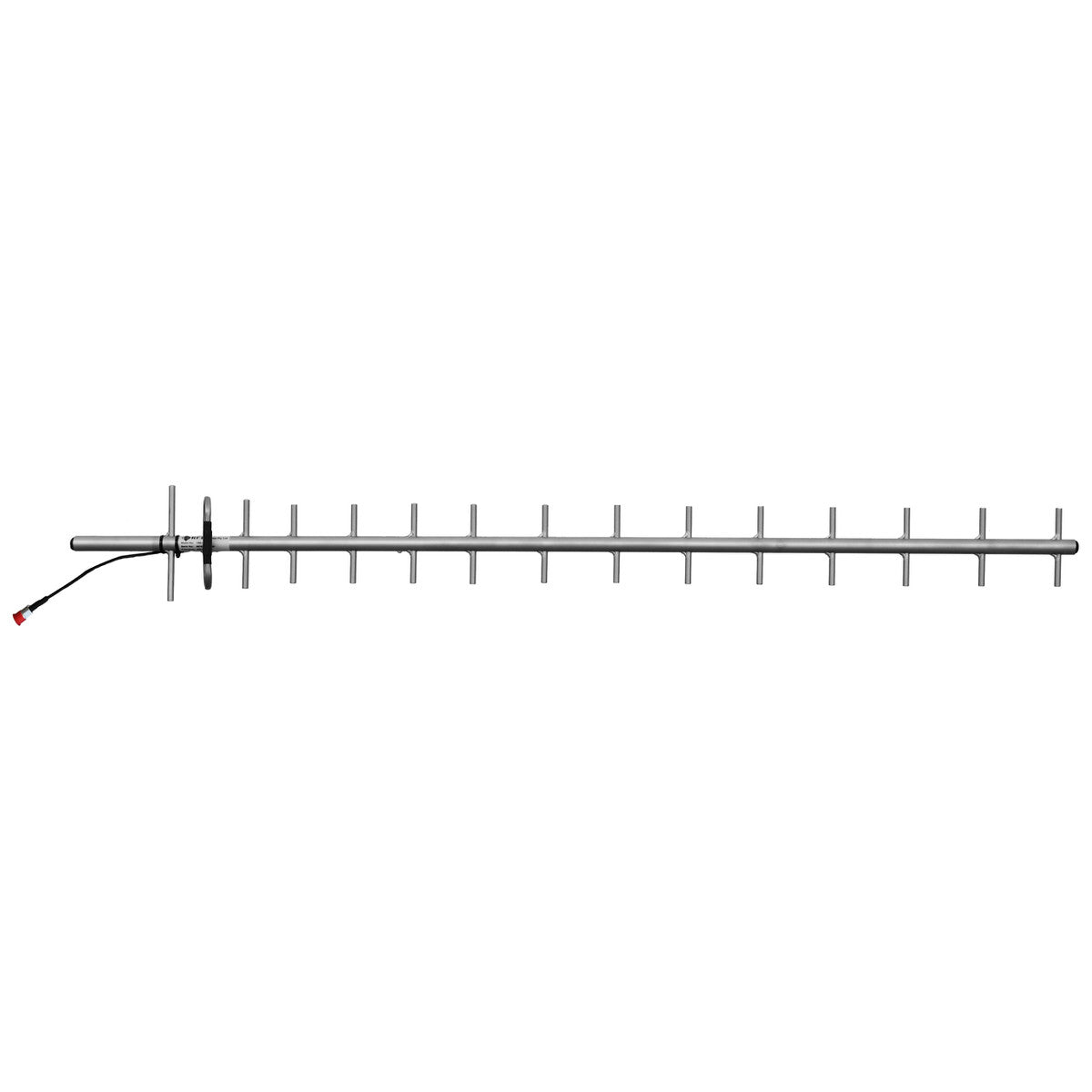

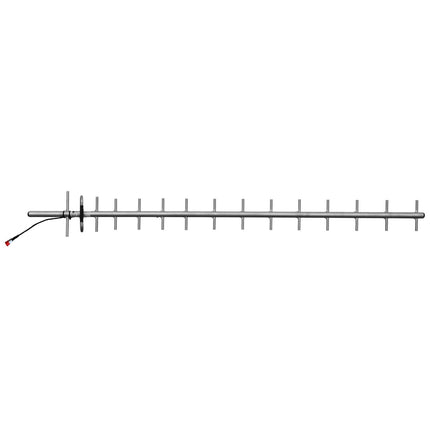

The RFI YBS815-99 is a 15-element Yagi antenna designed for broadband directional communication across the 540-1000 MHz frequency range. Constructed from all-welded 316-grade stainless steel, this antenna is built to perform in extreme and corrosive environments while delivering high gain and low PIM performance.

Product Features:

• The RFI YBS815-99 antenna is made from 316-grade stainless steel, ensuring durability and resistance to corrosion in harsh environments.
• This model supports broadband operation across the 540-1000 MHz frequency range, covering multiple wireless bands.
• It provides 15 dBi gain with a narrow beamwidth and high front-to-back ratio for precise signal targeting.
• The antenna includes a short 9302 Durathene cable tail with an N female connector, offering excellent resistance to weathering and abrasion.
• It is less susceptible to bird damage compared to standard PVC-sheathed cables.
• The design supports stacking or baying using PH and PHE series phasing harnesses for enhanced gain.
• This antenna is suitable for both point-to-point and point-to-multipoint communication setups.
• It features DC grounding on all elements for superior lightning protection and static noise dissipation.
• The rugged construction ensures consistent performance in demanding outdoor conditions.

Application Areas:

• The antenna is ideal for RF control and telemetry systems operating across a wide frequency range.
• This model is suitable for directional communication in both short and long-haul point-to-point links.
• It is a dependable solution for point-to-multipoint applications requiring broadband coverage.
• The design is well-suited for use in industrial, remote, or coastal environments.

In the Box:

• 1x RFI YBS815-99 15 Element Stainless Steel Yagi Antenna

Documents:

RFI YBS815 Antenna - Datasheet RFI YBS815 Antenna - Technical Support Guide
