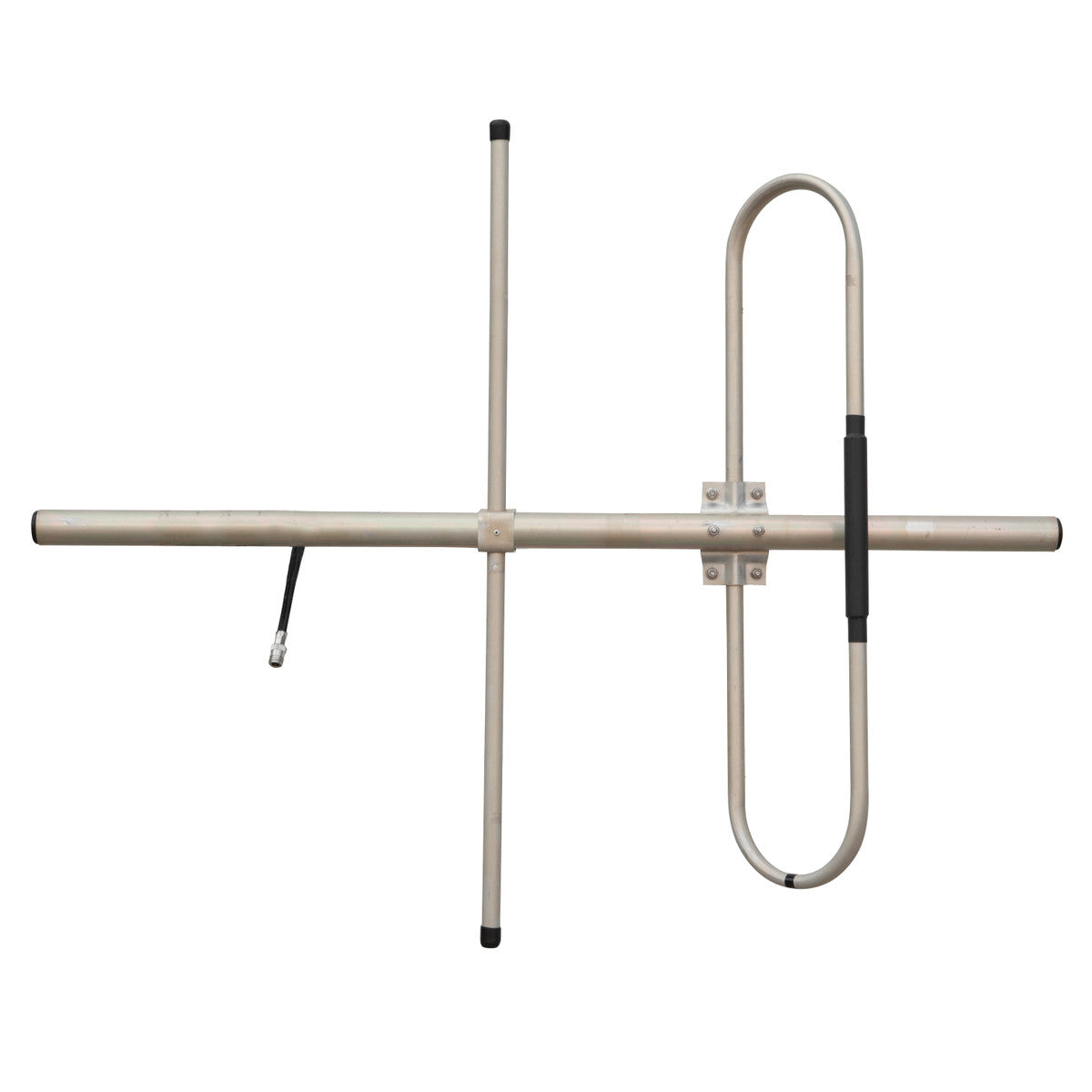

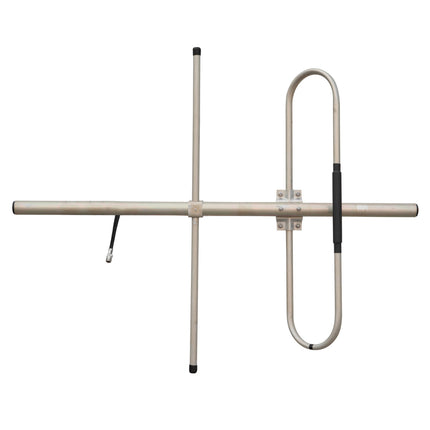

The RFI YH02 is a 2-element Yagi antenna designed for directional communication across the 100-250 MHz frequency range. With a gain of 5 dBi, it is ideal for applications requiring focused signal transmission and controlled radiation patterns. The antenna is constructed from thick-walled alodined aluminium tubing and features marine-grade stainless steel hardware for long-lasting durability.

Features:

• The RFI YH02 antenna provides 5 dBi gain, making it suitable for directional communication in VHF applications.
• This antenna offers predictable beamwidths and a consistently high front-to-back ratio for effective signal control.
• The boom and elements are made from thick-walled alodined aluminium tubing for strength and corrosion resistance.
• The passive elements are of one-piece construction and are clamped using a unique wrap-around single bolt bracket.
• The radiating element is through-mounted onto the boom for added mechanical stability.
• All fittings and fasteners are made from marine-grade stainless steel with self-locking nuts to prevent loosening from vibration.
• The antenna is supplied unassembled for ease of handling and transport.
• This antenna is quickly assembled using only basic tools.
• The colour-coded elements and boom sections simplify the assembly and installation process.
• The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.

Application Areas:

• The antenna is ideal for short or long-haul RF communication links requiring directional gain.
• This antenna is suitable for applications demanding specific radiation pattern control.
• It is designed for use in environments where durability and ease of installation are important.

In the Box:

• 1x RFI YH02 2 Element Yagi Antenna (custom tuned)

Documents:

RFI YH02 Yagi Antenna - Datasheet RFI YH02 Yagi Antenna - Installation Guide Phasing of RFI Yagi Antenna - Technical Guide
