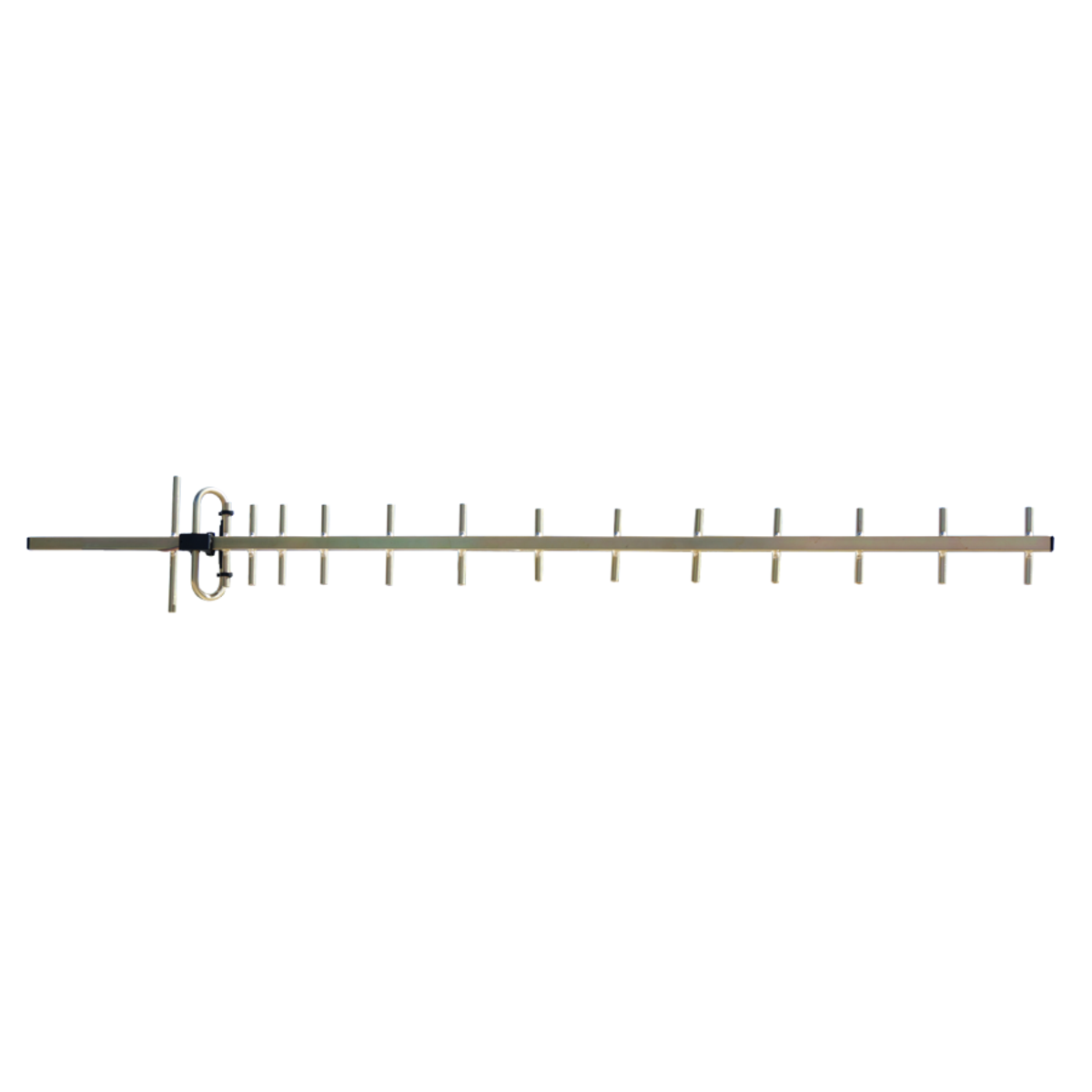

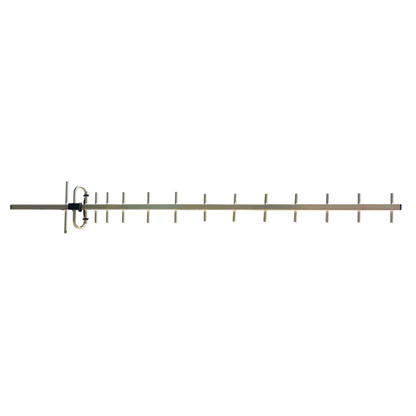

The RFI YW15-6989 is a 15-element Yagi antenna designed for high-gain directional communication across the 698-890 MHz frequency range. Engineered for network consistency and multi-band operation, this antenna features a unique dipole element design that ensures excellent performance with minimal pattern distortion and low VSWR across the entire bandwidth.

Product Features:

• The RFI YW15-6989 antenna supports wideband coverage from 698 MHz to 890 MHz, making it suitable for users operating across multiple frequency segments.
• This model delivers 13 dBd gain, providing strong directional performance for both short and long-range communication.
• It features a unique dipole element design that ensures consistently low VSWR and reduced pattern distortion compared to dual dipole designs.
• The passive elements are welded on both sides to a square boom section, minimizing corrosion and the risk of passive intermodulation (PIM).
• The all-welded construction enhances structural reliability and long-term performance.
• It includes alodined conductive plating, which improves grounding and ensures consistent electrical performance.
• The antenna is designed to rest at ground potential, offering excellent lightning protection and reduced precipitation static noise.
• It provides an excellent front-to-back ratio, enhancing signal clarity and reducing interference.
• The design is optimized for highly directional communication in demanding RF environments.

Application Areas:

• The antenna is ideal for RF control systems requiring reliable performance across the 700/800 MHz bands.
• This model is suitable for both short and long-haul point-to-point communication links.
• It is a dependable choice for control station combining and telemetry installations.
• The design supports point-to-multipoint networks where high directionality and wideband coverage are essential.

In the Box:

• 1x RFI YW15-6989 15 Element Yagi Antenna

RFI YW15-6989 Antenna - Datasheet
