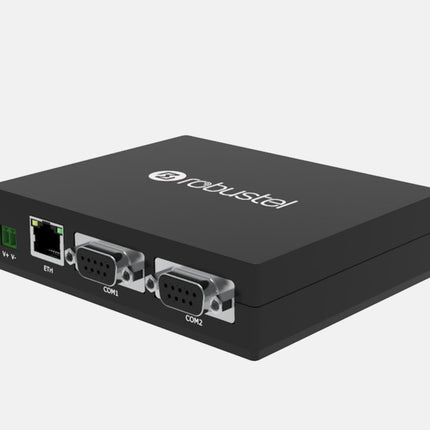

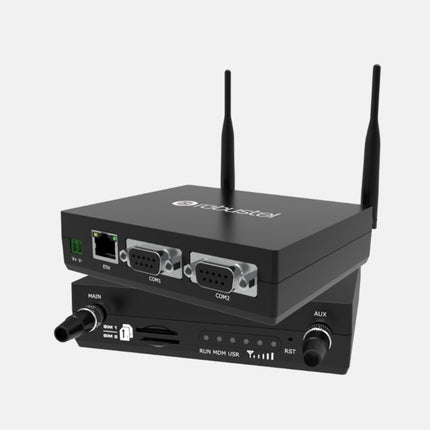

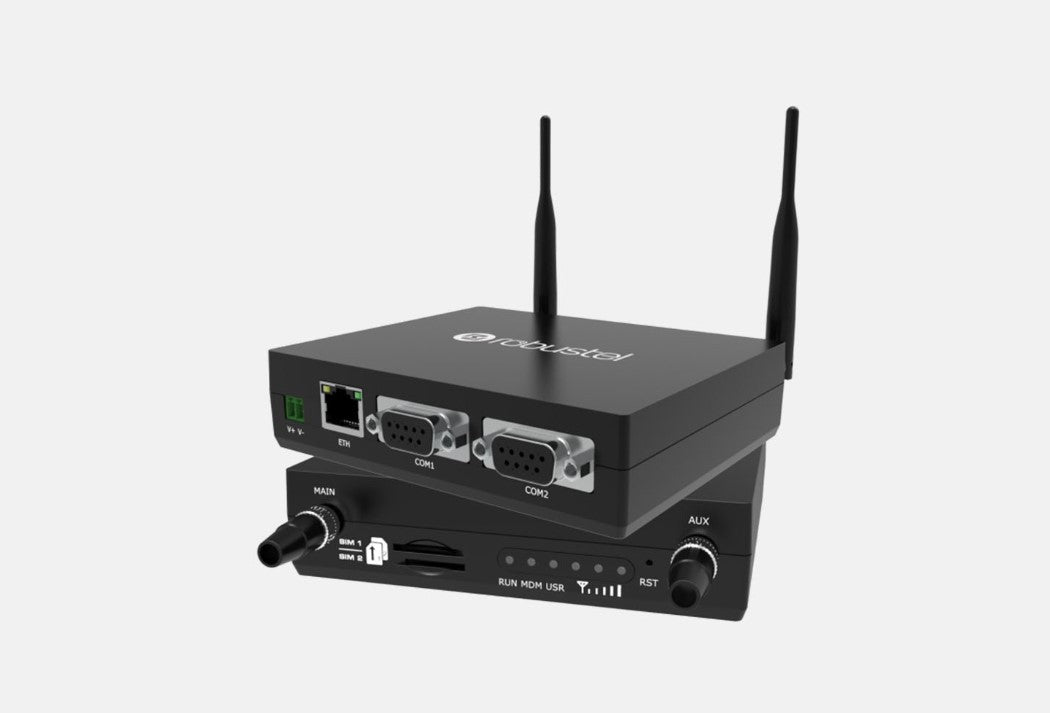

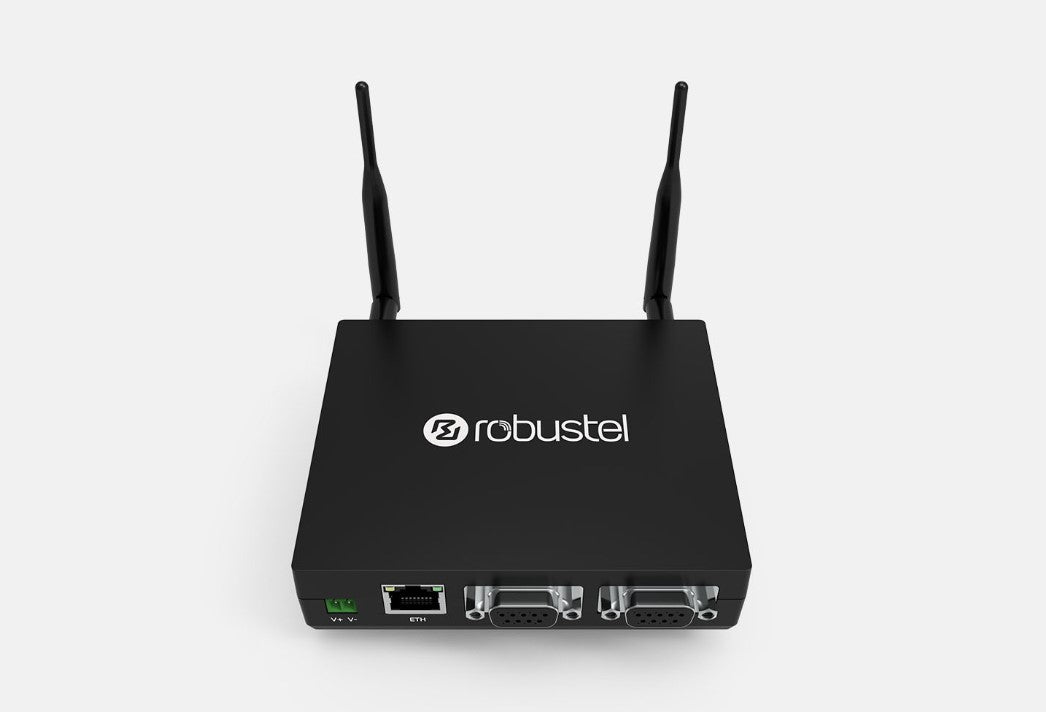

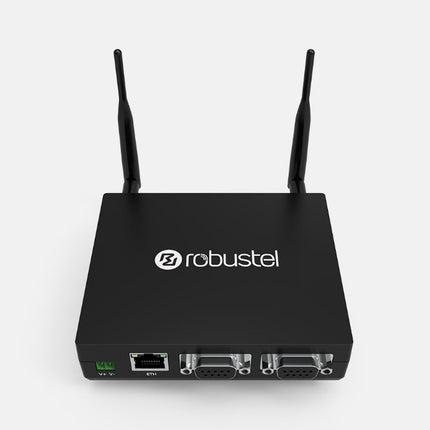

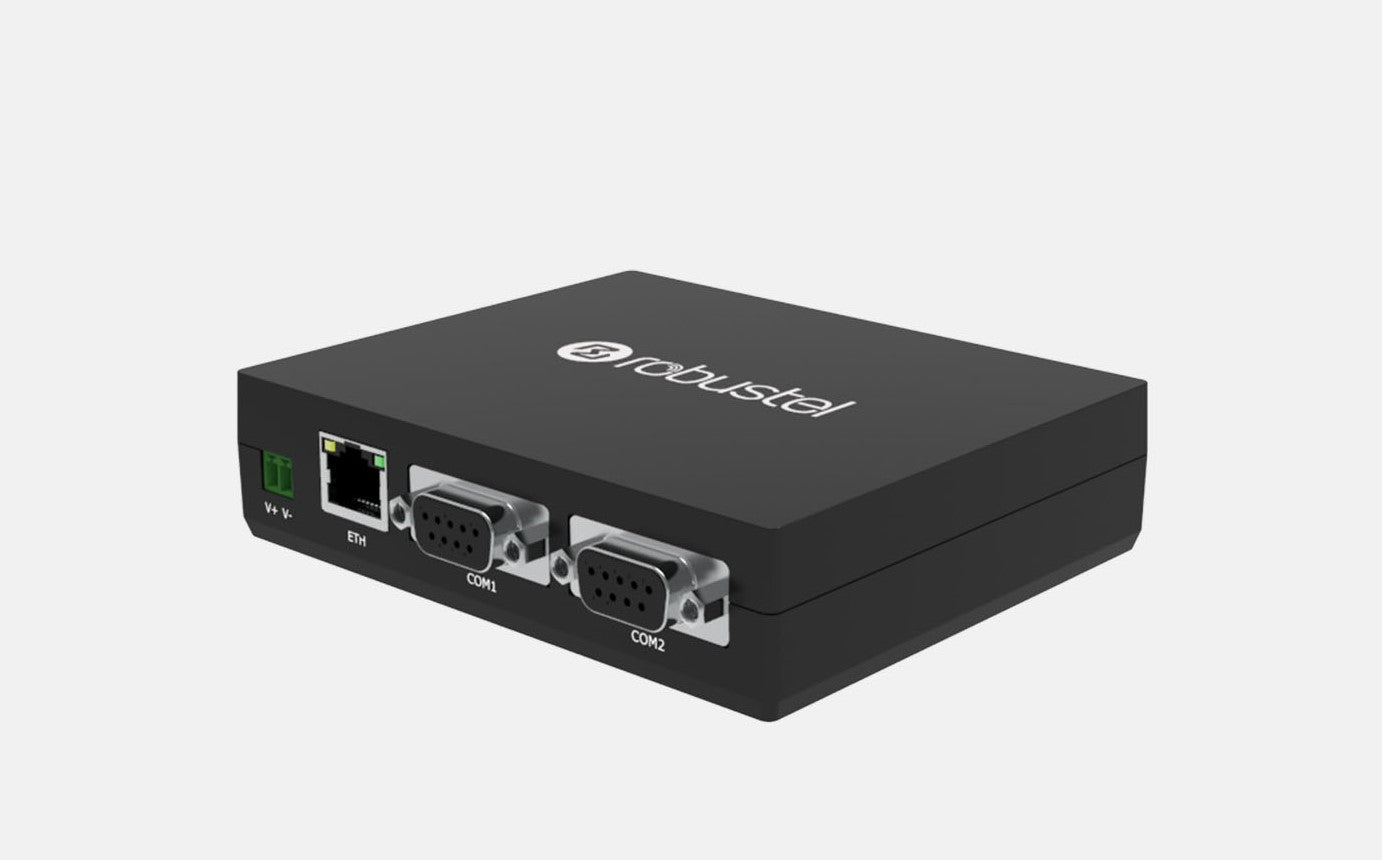

Robustel R1500 (MPN: R1500-4L) is an industrial cellular IoT gateway to operate on 2G, 3G & 4G LTE (TDD & FDD) networks with dual SIM capability and 100 Mbps Ethernet bandwidth. It can be connected to devices like sensors and IP cameras via RS232 or ethernet ports. R1500 gateway then routes the data wirelessly via the base station to Robustel RCMS Cloud, third-party cloud platforms or data centres.
Approved by Telstra in Australia to operate on their network.
Product Features:
- 2x cellular antennas (main & auxiliary) with SMA (K) connectors
- Cellular [orts: 1x ethernet 10/100 Mbps port, 2x RS232 ports, 1x DB9 port
- Operating system: RobustOS with SDK & useful Apps
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN and various VPNs
- Supporting double cards link backup and ICMP detection
- Supporting SMS, Email, SNMP Trap and RobustLink
- Supporting Modbus RTU to TCP Modbus Master
- Supporting TCP client/server, UDP and virtual serial ports
- Supporting IP Passthrough, RobustVPN cloud platform, Web, CLI, USB, SMS and RobustLink to upgrade firmware
- Powerful industrial design (9~36V DC input voltage, supporting desktop placement, wall mount or rail mount)
Application Areas:
- Public transport for payment systems, digital signage or IP-based cameras
- Agriculture monitoring
- Fleet Tracking
- Retail POS
In the Box:
- 1x Robustel R1500 (MPN: R1500-4L)
- 1 LTE Antenna (E003220)
Documents:
Robustel R1500 Industrial IoT Gateway - Datasheet
Robustel R1500 Industrial IoT Gateway - User Guide
Robustel R1500 Industrial IoT Gateway - Hardware Manual
RobustOS Software Manual
