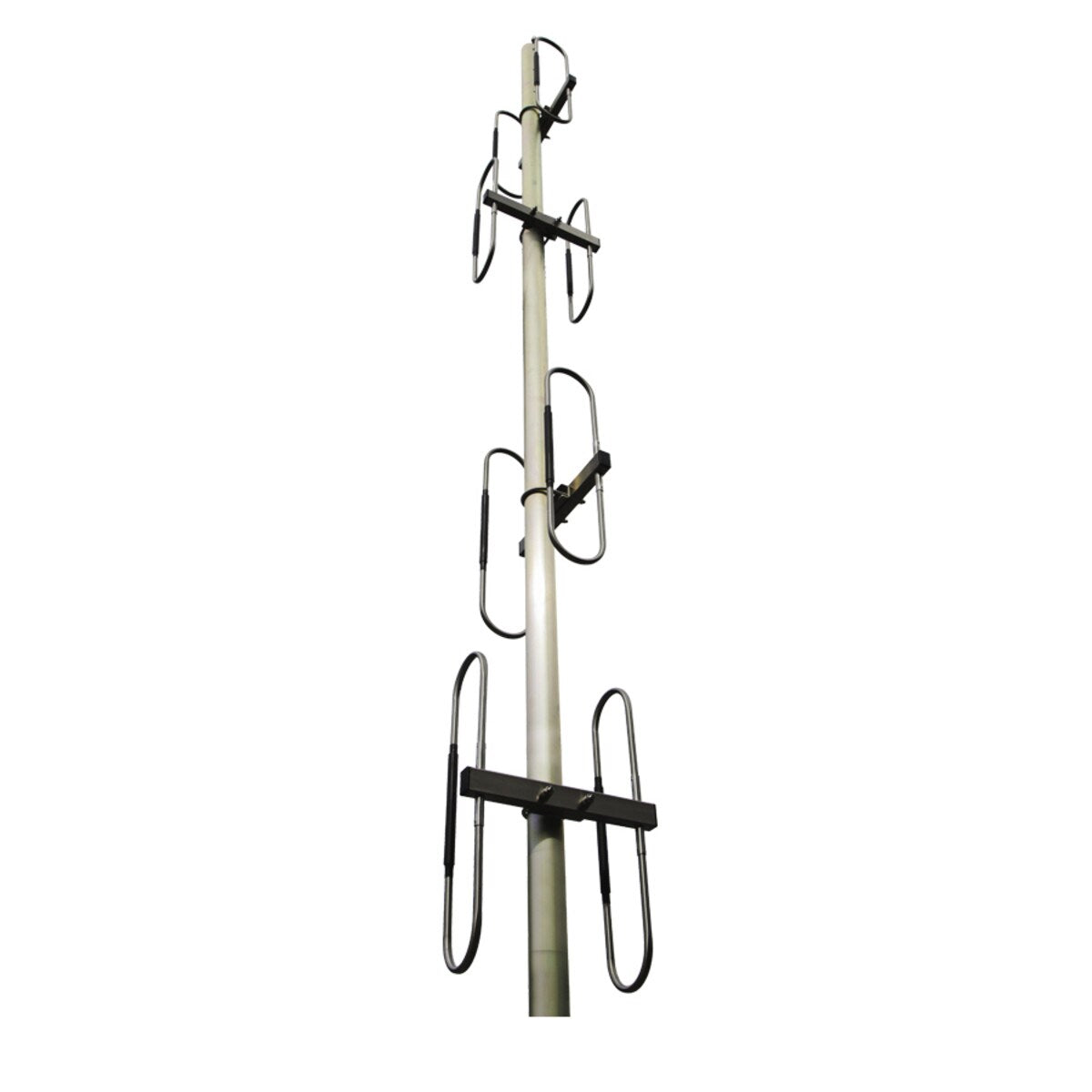

RFI BA404040-41-P-ICE Ruggedised Dual Boom Stacked VHF Array, 155-174 MHz, 3x3 dBd

    RFI BA404040-41-P-ICE Ruggedised Dual Boom Stacked VHF Array, 155-174 MHz, 3x3 dBd

      Product form
      Brand:
      RFI
      Item ID:
      167015344
      MPN:
      BA404040-41-P-ICE
      Export:
      Restricted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Ruggedised Dual Boom Stacked VHF Array 155-174 MHz - 3x3 dBd including high wind & snow, these arrays have been designed to utilise a smaller effective area

      Sold-out

      Price on Application

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The BA404040-41-P-ICE is aheavy duty VHF dipole array ideal for highly ruggedised, highly populated radio sites requiring wide area omnidirectional coverage. Stainless dipoles fixed to a heavy duty aluminium boom, offer a trade off between high strength with lower weight.

        The single boom design of the lower array offers the added benefit of being able to stack a further 3 dBd receive array on top. The full compressed array design offers a total gain of 3 x 3 dBd exhibiting a VSWR of 1.5:1 across the 155-174 MHz band The internal phasing harness is PTFE based low PIM rated cable capable of input power levels up to 750 watts continuous, making these ideal for high power multiple transmitter applications. The cable harness assembly is fully enclosed within the antenna to remove any potential bird attack on the cable.

        • Compact height, high strength
        • Designed for sites with extreme ruggedized capability requirements snow and ice
        • Operate over entire 155-174 MHz VHF band without tuning
        • Low PIM performance
        • DC grounded
        • All connections are DIN

        Product Specifications

        Product Category Antennas
        Brand RFI
        Length 99
        Width 3
        Height 3
        Antenna Application Base Station Antenna
        Antenna Cable Type RG142
        Antenna Features Omnidirectional, Multi Band Capable, PIM Rated, High Power Multi Channel
        Antenna Port Connectors 4.3-10 (F)
        Antenna Type Exposed Dipole Array
        Cable Length (m) 0.5
        Construction Stainless Steel Dipoles with Aluminium Boom
        Coverage Type Directional
        Downtilt 0? Std
        Frequency Band VHF High Band 118-180 MHz
        Horizontal Beamwidth Omni +/-0.5dB
        Installation Type External mounting
        Low PIM Yes
        Max Frequency (MHz) 174
        Max Gain (dBd/dBi) 3
        MIMO Support No
        Min Frequency (MHz) 155
        Mount Supported Pole mount
        Mount Supported - Detailed Pole mount
        Mounting Area 750mm x 90mm diam. aluminium
        No. of Antenna Ports 3
        PIM (3rd, 2 x 20 W) dBc <-140
        Polarisation Vertical
        Power [W] 750
        Technologies Supported VHF
        Termination 4.3-10 female with 0.5m RG142 cable tail.
        Tuned Bandwidth Full. No tuning required
        VSWR <1.5:1
