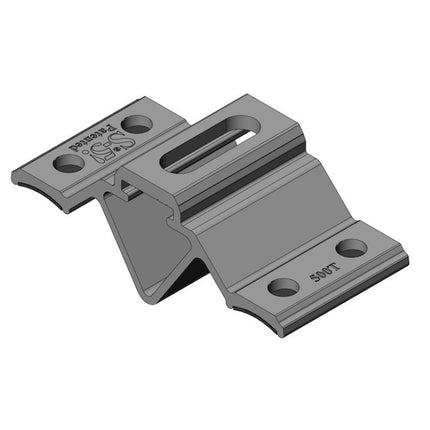

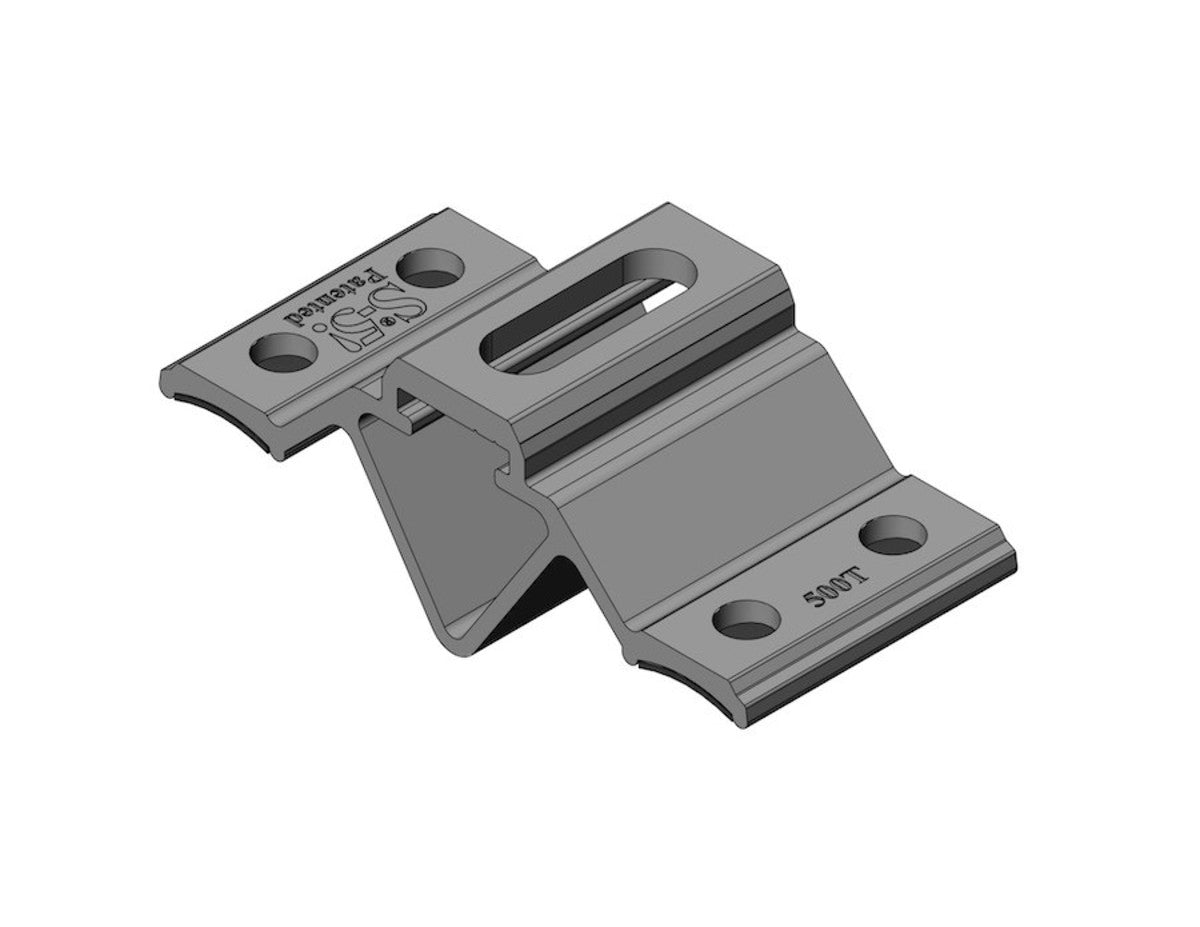

S-5! CorruBracket 500T mounts directly into the crest of the corrugation, straddling the valley of the metric profiles common in Australia. Compatible w/ 16 - 18mm corrugated roofing. Fastens directly into the sheeting or through the sheet into the structure. Slotted top hole simplifies alignment, maximises flexibility in attaching ancillaries.
With the
CorruBracket 500T, the “
T†indicates “top-fixed,†and the “
500†indicates metric dimensioning.
The
500T is specifically designed to securely and safely attach walkways and other utilities, along with rail-based PV systems or low-profile, direct-attach, solar mounting with the S-5-PVKIT®. If added height is desired when mounting solar with the PVKIT, visit the
CorruBracket 500T PV page.
Attachment Versatility:
The S-5! CorruBracket 500T fastens directly into the crest of the corrugation, leaving the drainage plane free of fastening holes.
For
medium-duty applications like solar PV, the
500T can be used as a sheeting-only attachment anywhere along the corrugation. If a
heavy-duty application is desired, the bracket can be fixed into the underlying deck or purlin for additional support. The “V†configuration prevents crushing of the ribs when significant downward forces are present.
Product Specifications:
-
16-22 mm (H) x 76 mm rib-pitch corrugated roofing
- Designed for common profiles in Australia, Asia, Africa, Europe and South America
- Mounts directly into crest of corrugation, straddling valley
- Fixes into sheeting-only OR through sheeting into structure
- Slotted, top hole simplifies alignment, maximizing flexibility
-
Four pre-punched holes in base
- 4 self-piercing screws and 1 M8 nut included
In the Box:
Note:
Additional sheeting-only, metal-to-metal, or metal-to-wood screws can be purchased separately. Bolts are sold separately.
Documents:
S-5! CorruBracket 500T - Datasheet
