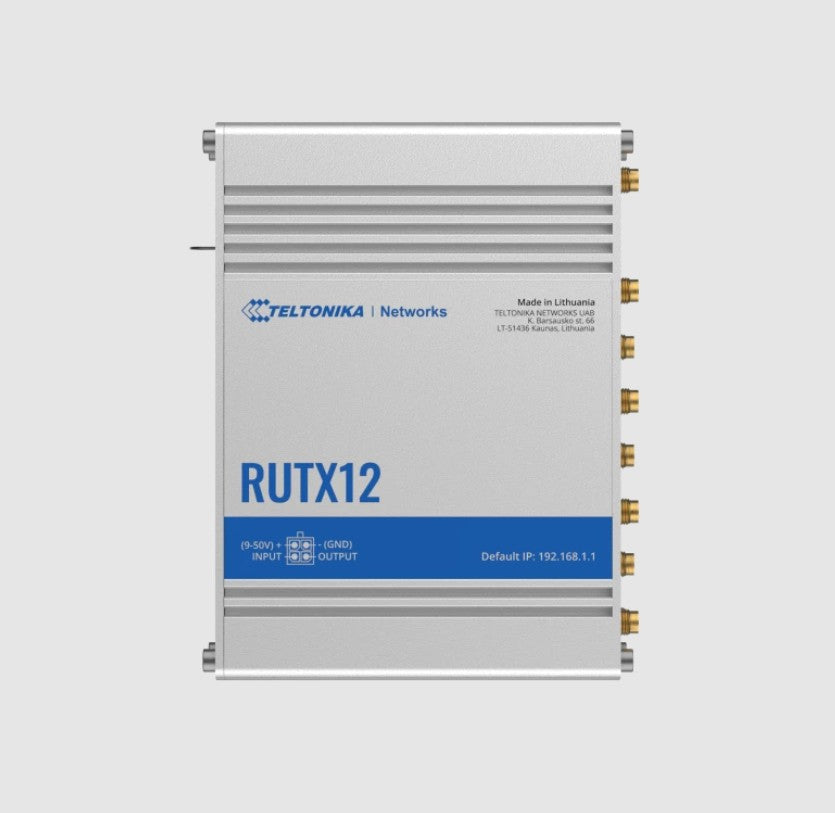

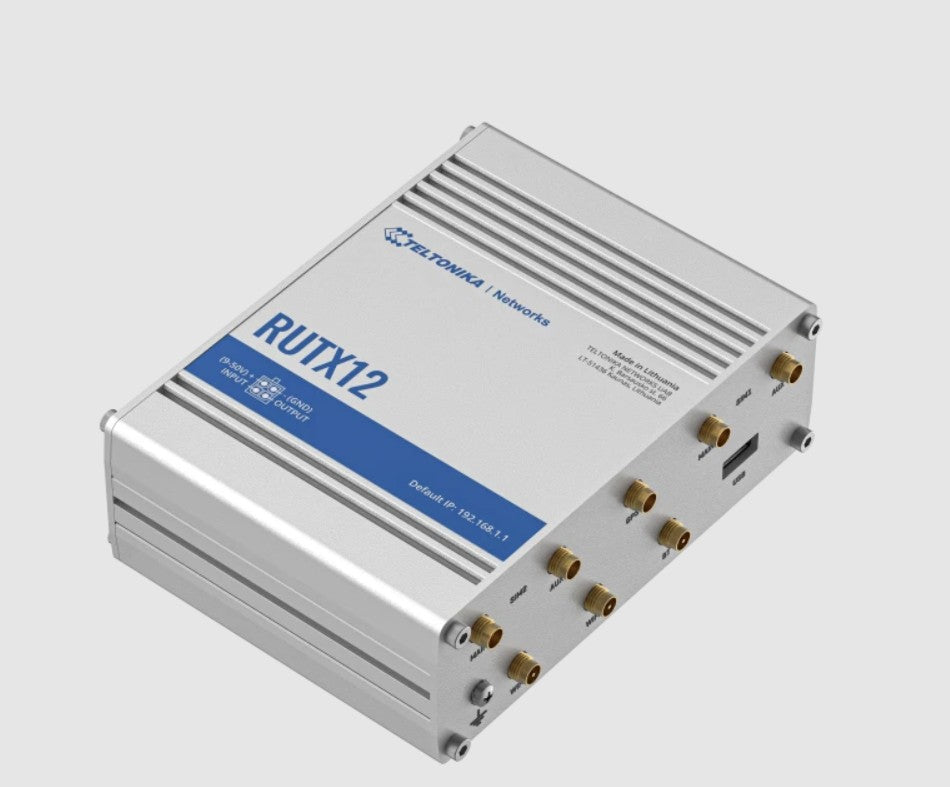

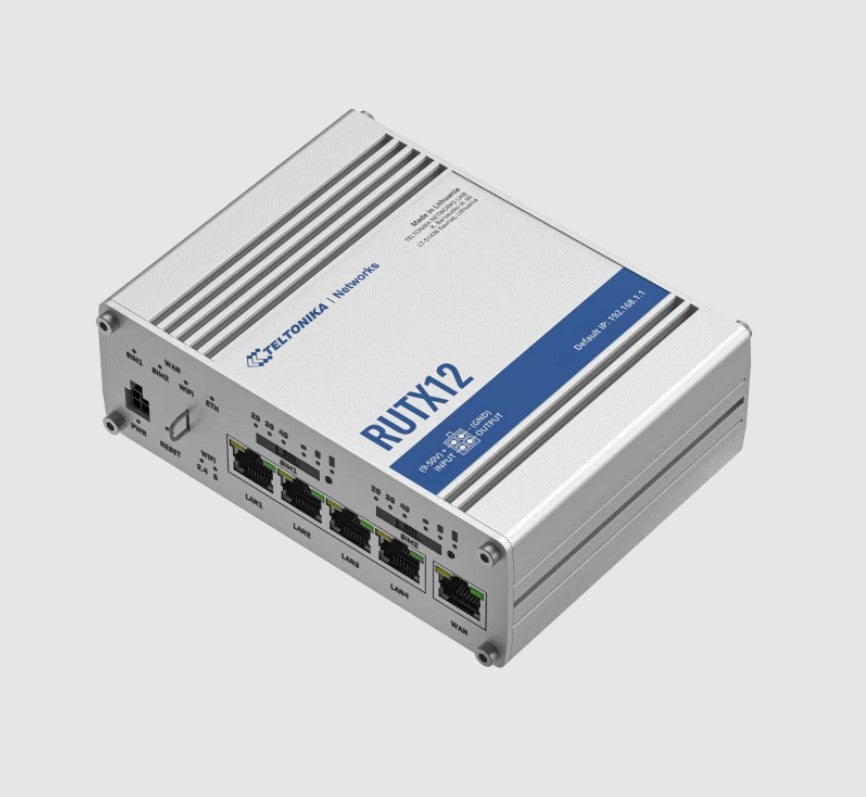

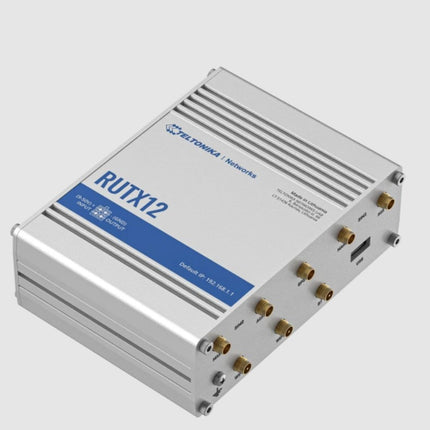

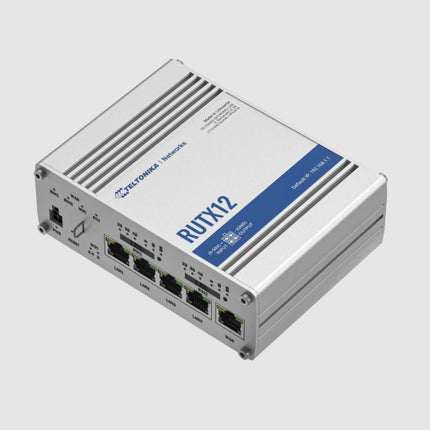

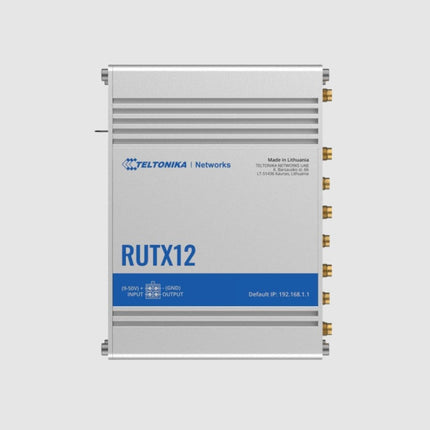

Teltonika RUTX12 is a Dual SIM CAT6, Dual LTE CAT6 router with Dual Band Wi-Fi 5, 5 Ethernet ports (1x WAN and 4x LAN), GPS and Bluetooth 4.0. It is designed for mission-critical applications where connectivity is of prime importance, thanks to the dual SIM, dual LTE plus Wi-Fi support. Dual LTE CAT 6 modems can offer speeds up to 600 Mbps with load balancing feature. Individual modem speed is 300 DL/50 UL Mbps. This router offers excellent load balancing and is the only router from Teltonika that offers this feature. This modem does not offer LTE Bonding. Read more: Load Balancing vs LTE Bonding

Product Features:

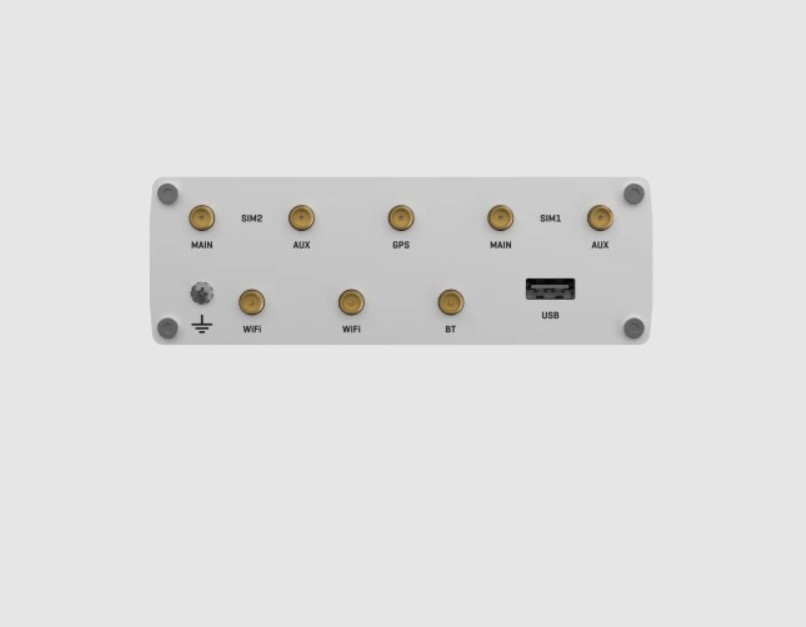

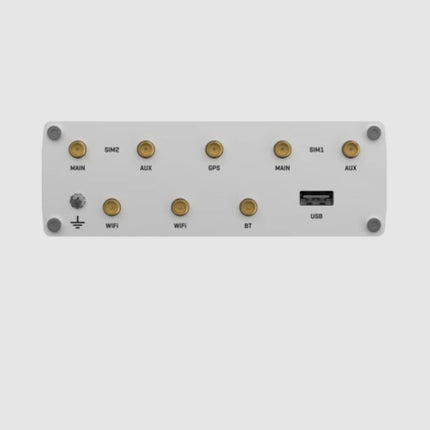

• RUTX12 is a dual SIM router that offers two LTE CAT 6 Modems with two antenna input for each modem (main & auxiliary). A data usage limit can be put on each SIM.
• The modems simultaneously provide speeds up to 600 Mbps with instant failover.
• Load Balancing feature in this modem allows use of multiple WAN sources to increase throughput.

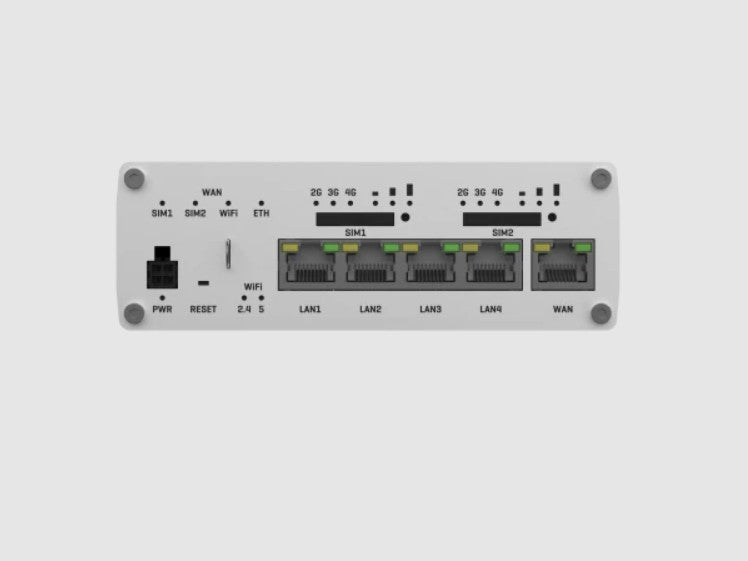

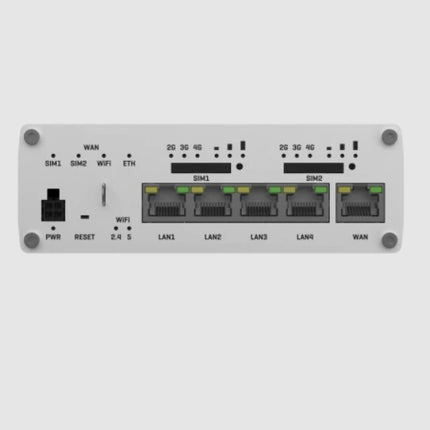

• RUTX12 comes with 5 Ethernet ports, one is WAN and are LAN Gigabit Ports
• The modem offers dual band 2x2 MU-MIMO Wi-Fi (2.4 GHz & 5 GHz) with speeds up to 867 Mbps for high-performance wireless connectivity.
• Low Energy(LE) Bluetooth 4.0 and USB Interfaces allow flexible connectivity.
• This modem offers security features like VPN & Firewall.
• OpenWrt Based Operating System
• Teltonika Remote Management System (RMS) compatible

Application Areas:

Please note that some of the following applications may require using an external antenna for better coverage & performance.

• Small office or home
• Small gatherings & events
• Video Surveillance Systems
• Remote management of kiosks
• Transport vehicles
• Temperature monitoring systems
• SMS and Email alerts

In the Box:

• 1x Teltonika RUTX12
• 4 x LTE Antennas (Swivel, SMA Male)
• 2 x WiFi Antennas (Magnetic Mount, RP-SMA Male, 1.5 m)
• 1 x GNSS Antenna (Adhesive, SMA Male, 3 m cable)
• 1 x Bluetooth Antenna (Magnetic Mount, RP-SMA Male, 1.5 m)
• SIM Needle
• 240V Power Supply
• Ethernet Cable (1.5 m)
• Quick Start Guide (QSG)
• Packaging Box

Documents:

RUTX12 Datasheet RUTX12 User Manual RUTX12 Quick Start Guide
