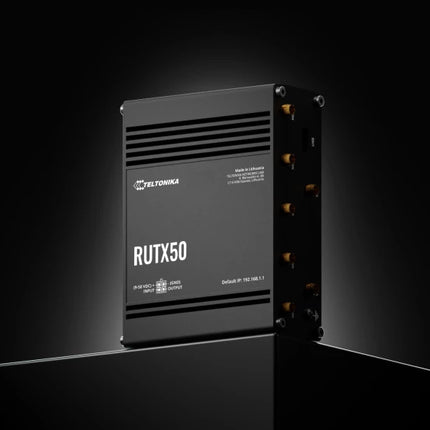

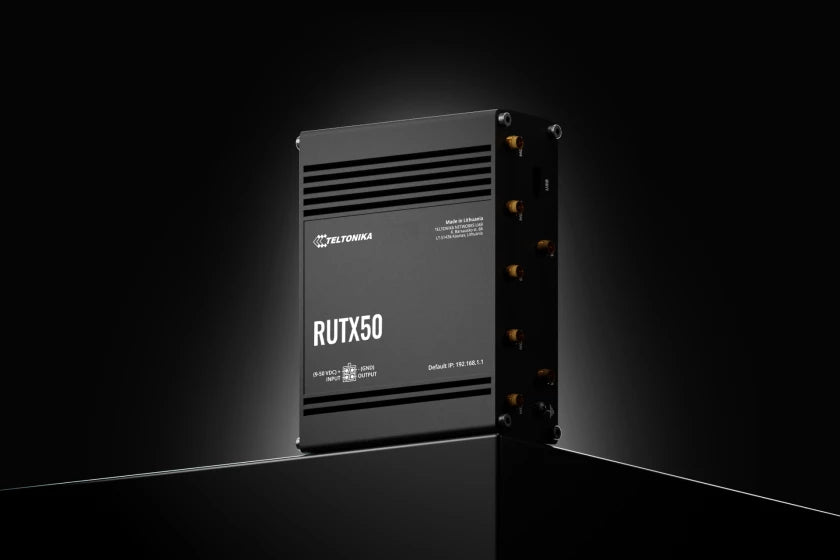

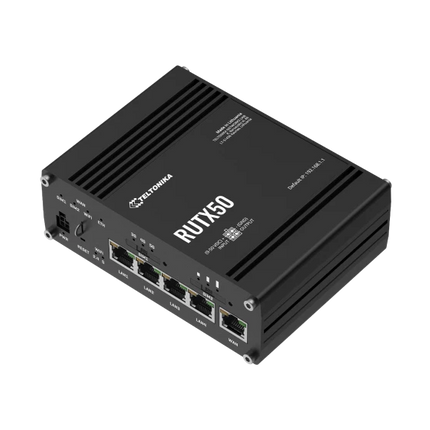

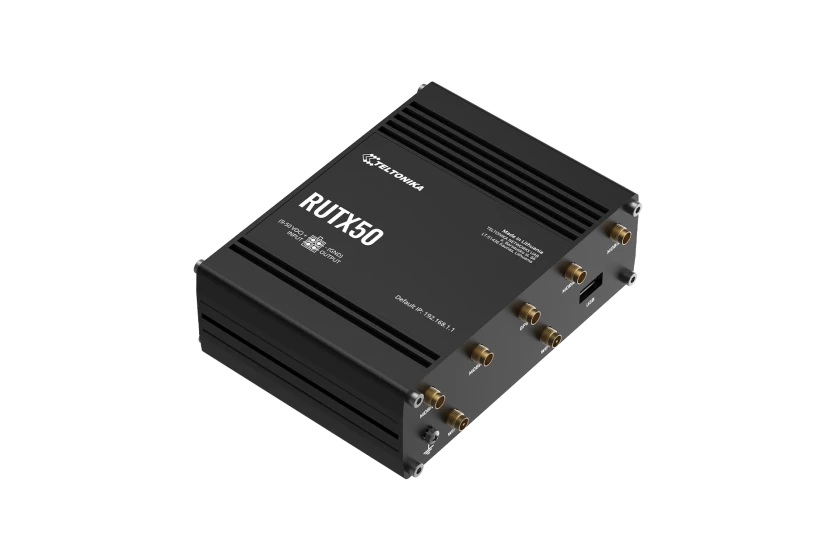

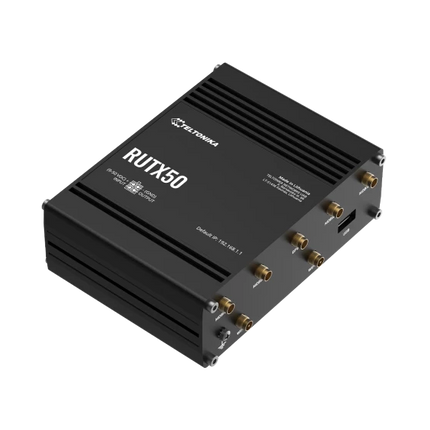

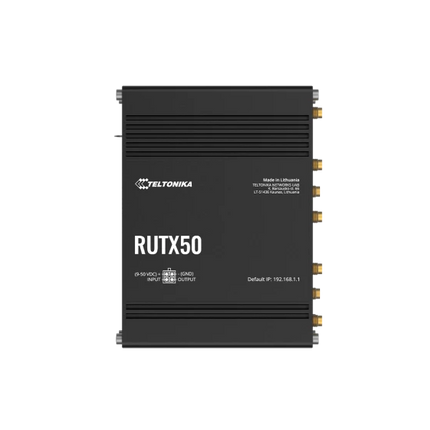

The Teltonika RUTX50 Router is a versatile and powerful 5G industrial router designed for advanced industrial, commercial, and IoT applications. Powered by an ARM Cortex-A7 1.2GHz CPU, it ensures efficient data handling with 256 MB RAM and 512 MB flash memory, providing ample processing power and storage capacity. The RUTX50 supports ultra-high cellular speeds up to 3.3 Gbps on 5G and is backward compatible with 4G (LTE CAT 20) and 3G network technologies. It offers 4G LTE Cat 4 speeds up to 150 Mbps and upload speeds up to 50 Mbps, guaranteeing reliable and secure connectivity. The built-in dual-band WiFi (802.11ac) supports both 2.4 GHz and 5 GHz frequencies, ensuring robust wireless connectivity. RUTX50 ensures uninterrupted connectivity by automatically switching between SIM cards. It includes five Ethernet ports (10/100/1000 Mbps) for robust wired connections and supports seamless failover between cellular networks. The router also features GPS and GLONASS for location tracking and geolocation applications. The RUTX50 is designed with a rugged metal housing, wide temperature range (-40°C to 75°C), and DIN rail mounting for industrial durability and easy installation. It supports various advanced features like VLAN functionality, network traffic segmentation, and secure remote access through OpenVPN, IPsec, and PPTP. The router also integrates with existing authentication systems through RADIUS and supports dynamic DNS (DDNS).

Product Features:

• Supports 5G speeds up to 3.3 Gbps with SA & NSA architectures and 4G LTE Cat 20 fallback.
• Dual SIM slots with auto failover ensure uninterrupted connectivity.
• ARM Cortex-A7 1.2 GHz CPU for efficient data processing.

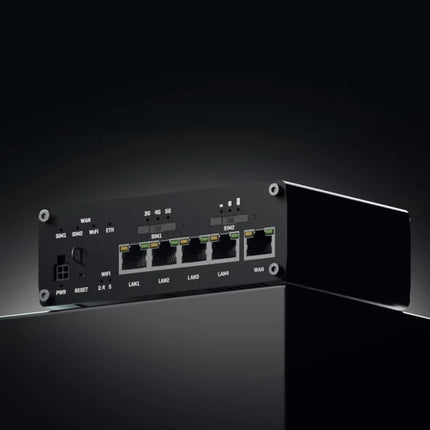

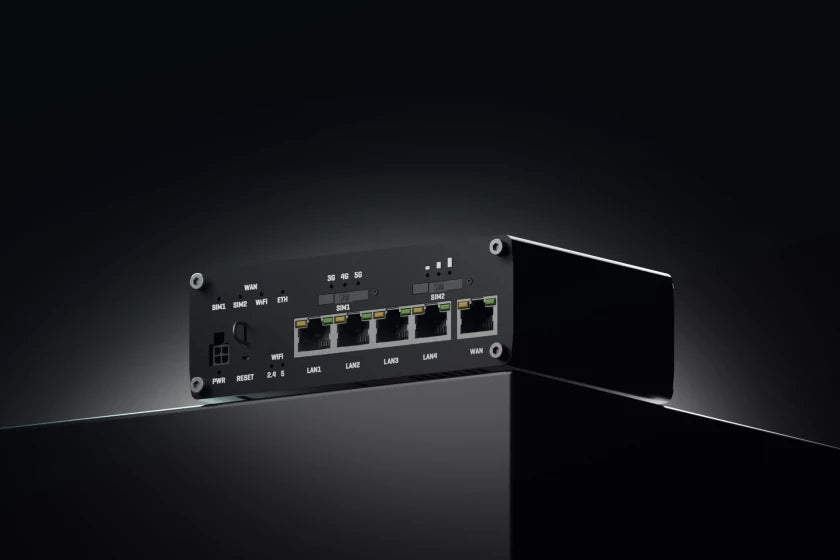

• 10/100 Mbps WAN/LAN, five Gigabit Ethernet ports, and dual-band Wi-Fi (2.4 GHz & 5 GHz).
• Supports OpenVPN, IPsec, PPTP, and dynamic DNS with RADIUS authentication.
• Rugged metal housing, -40°C to 75°C temperature range, and DIN rail mounting.
• GPS/GLONASS for location tracking and secure remote management.

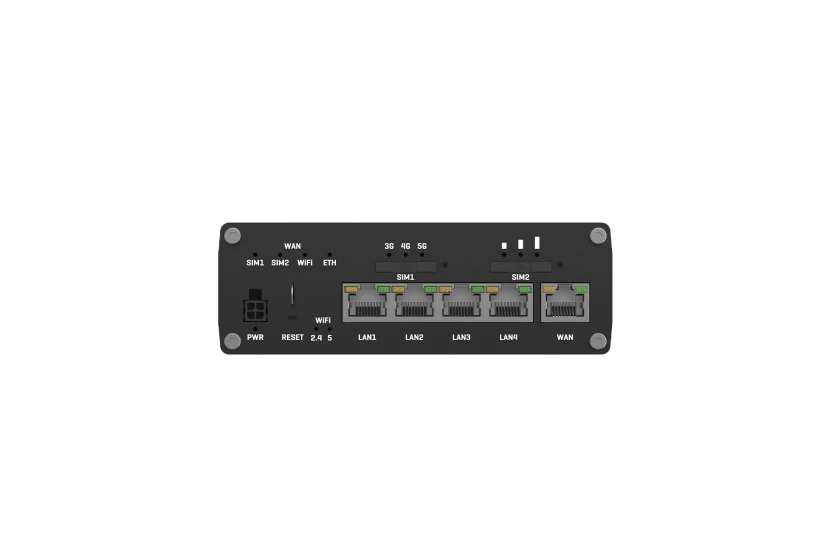

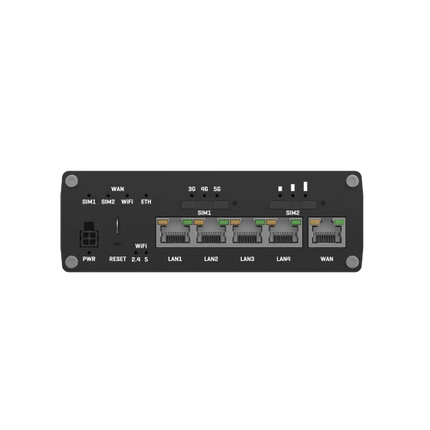

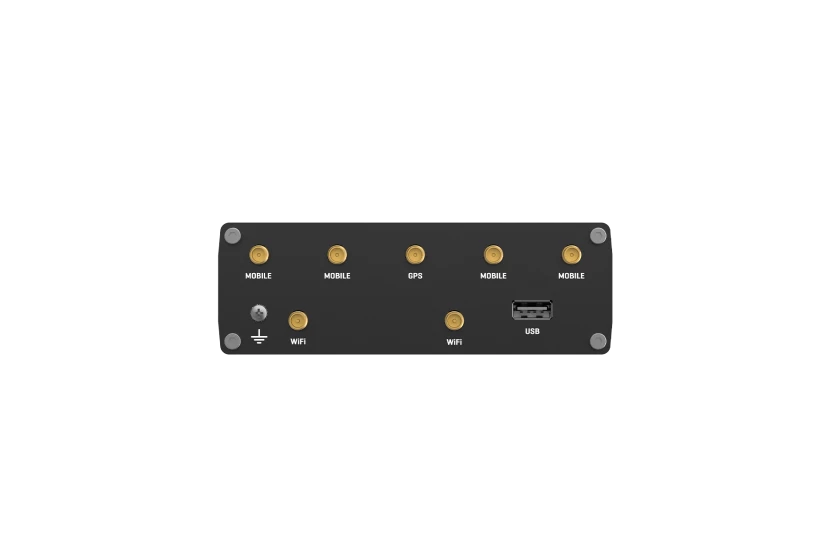

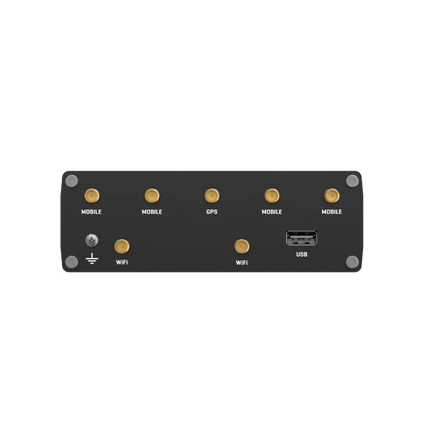

• Status LEDs, USB A port, reset button, and grounding screw for safety.

Application Areas:

• GPS tracking for public event safety.
• Bus hotspot and remote management.
• RV internet and camping WiFi.
• Livestreaming children's games.
• Warehouse automation and IoT applications.

In the Box:

• RUTX50 Router
• 18W AC PSU

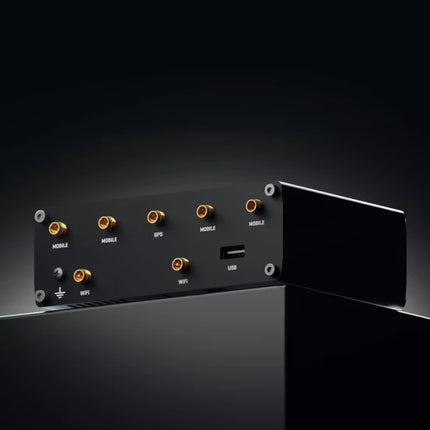

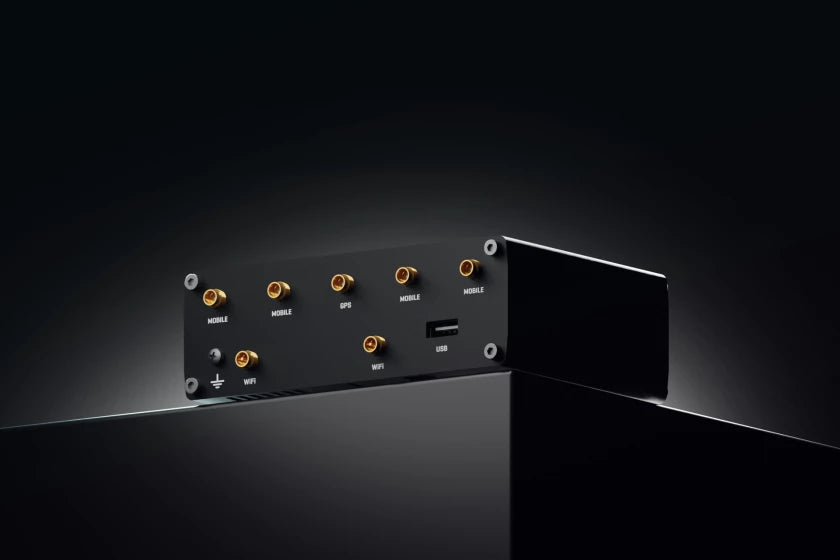

• 4 x Mobile antennas (swivel, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)

Documents:

Teltonika RUTX50 Router - Datasheet Teltonika RUTX50 Router - User Manual Teltonika RUTX50 Router - Quick Start Guide

Videos:

RUTX50 - Industrial 5G Router
