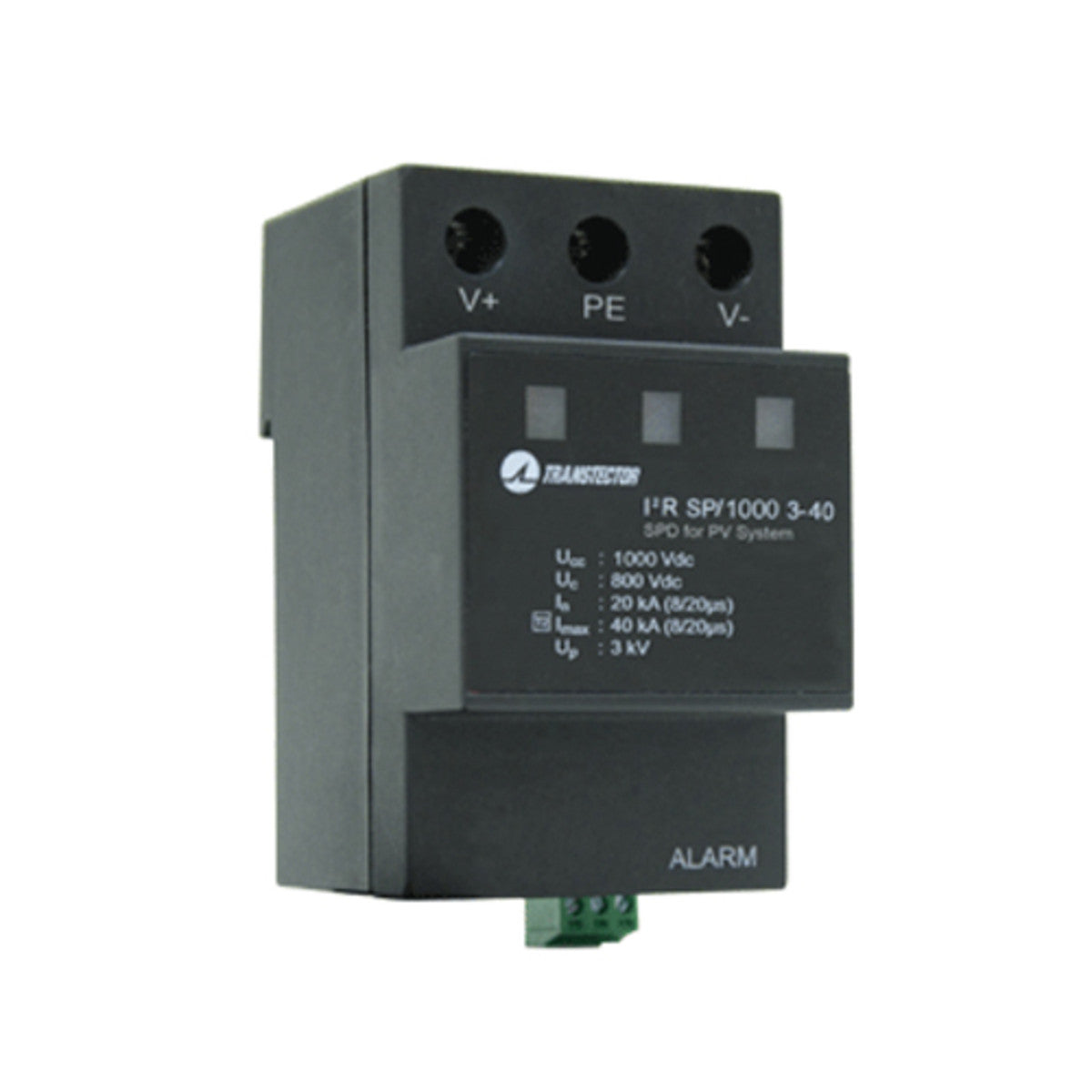

The Transtector 1104-11-101 DC Surge Protector is a DIN rail mounted device designed for 1000 VDC applications. Utilizing state-of-the-art MOV technology, this surge protector meets Type 2 requirements and ensures effective protection against electrical transient surges from both external lightning events and internal switching events.

Product Features:

• This surge protector utilizes MOV technology for effective surge protection.
• The device includes a visual suppression status indicator for easy monitoring.
• It features dry contact remote annunciation terminals for remote monitoring.
• The surge protector is designed for DIN rail mounting.
• This device meets Type 2 requirements.
• It ensures long-term system reliability by safely shunting high amounts of transient energy.
• The surge protector maintains a very low clamping voltage.
• It is suitable for protecting critical equipment in various settings.

Application Areas:

• This surge protector is ideal for industrial automation systems.
• The device is suitable for controls and sense loops.
• It is perfect for telecommunications base stations.
• The surge protector is beneficial for IT and data centers.
• This unit is useful in wastewater treatment, rail, oil & gas, and LED lighting applications.

In the Box:

• 1x 1104-11-101 DC Surge Protector

Documents:

Transtector 1104-11-101 DC Surge Protector - Datasheet
