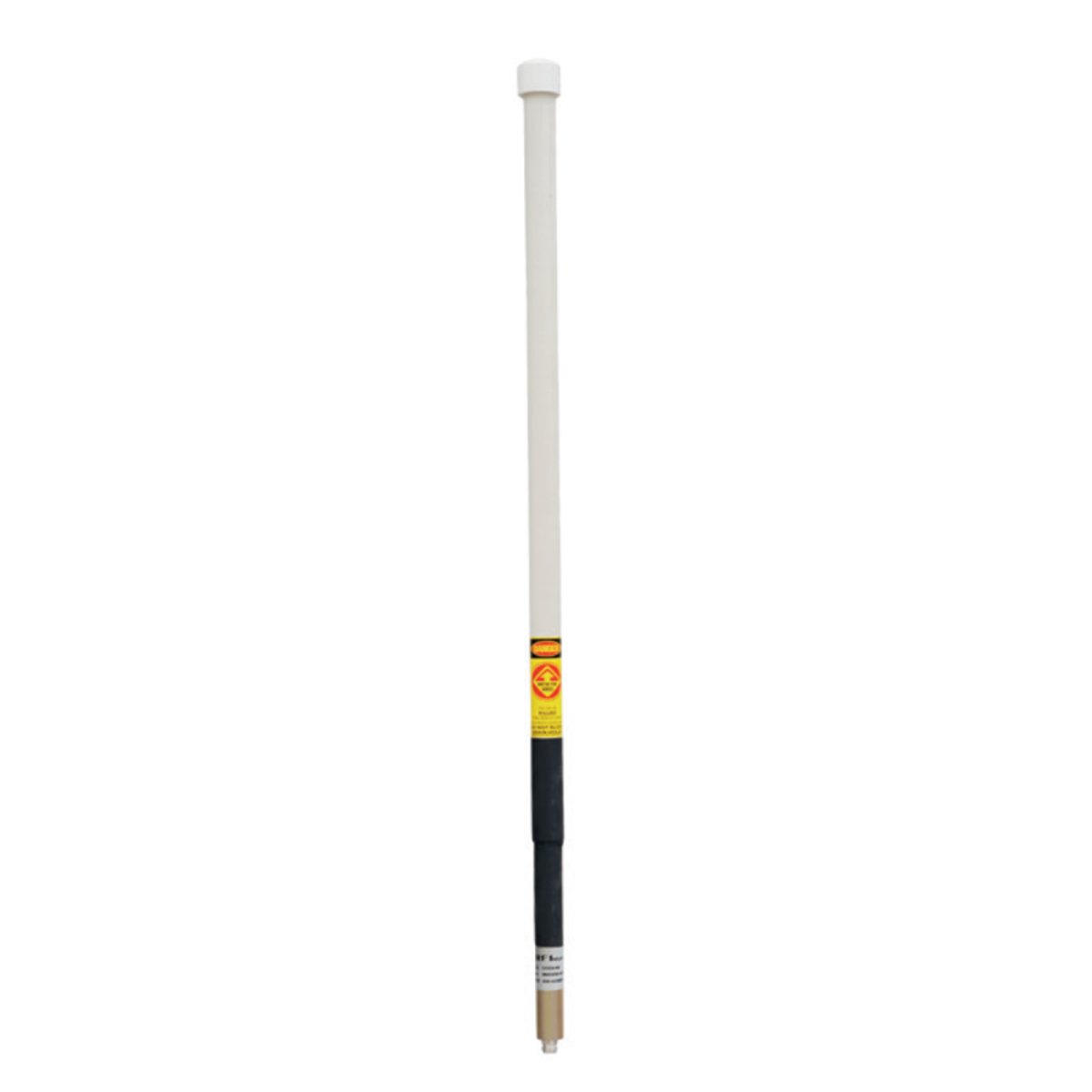

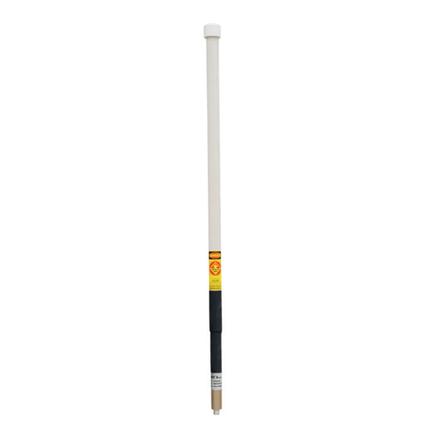

RFI COD4-4552 Broadband Dipole Antenna, 450-520 MHz, 2 dBi

    RFI COD4-4552 Broadband Dipole Antenna, 450-520 MHz, 2 dBi

      Product form
      Brand:
      Item ID:
      167015734
      MPN:
      COD4-4552
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Unity Gain Broadband Dipole Antenna 450-520 MHz is a broadband UHF vertical enclosed dipole which is designed to cover the entire band without tuning.

      $341.94

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.
      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      The COD4-4552 unity gain broadband dipole antenna is designed to cover the entire 450-520 MHz frequency band. Suitable applications include low power base stations and RF Control Stations in the emerging whole-of-government UHF frequency allocations, and other applications requiring a wide operating frequency bandwidth. A unique circuit board radiator design provides a balanced and effective centre fed dipole radiator. As a centre fed antenna, not only is gain consistent across its entire frequency band but the vertical radiation pattern is stable in beam width, resulting in consistent performance across the entire frequency band. This antenna is internally DC grounded for optimum lightning protection and for the reduction of static noise, and is lightweight for easy installation on support structures.

      Documents:

      RFI COD4-4552 Antenna - Datasheet

      Product Specifications

      Brand RFI
      Length 99
      Width 3
      Height 3
      Antenna Application Base Station Antenna
      Antenna Features Omnidirectional
      Antenna Port Connectors N (F)
      Antenna Type Vertical Dipoles
      Construction White fibreglass composite PCB and Aluminium tube
      Coverage Type Omni-directional
      Frequency [MHz] 470-490
      Frequency Band UHF 380-520 MHz
      Horizontal Beamwidth Omni +/- 0.5dB
      Installation Type External mounting
      Low PIM No
      Max Frequency (MHz) 520
      Max Gain (dBd/dBi) 2.1
      MIMO Support No
      Min Frequency (MHz) 450
      Min Gain (dBd/dBi) 2.1
      Mount Supported Clamp mount
      Mount Supported - Detailed UC1, UB1
      Mounting Area 100mm x 25mm diam. alodined aluminium
      No. of Antenna Ports 1
      Nominal Gain [dBi] 2
      Power [W] 100
      Technologies Supported UHF
      Termination N series jack
      Torque [Nm] 8
      Tuned Bandwidth Full
      Vertical Beamwidth 83?
      VSWR <1.5:1
      Wind Thrust 30
