RFI COD8-8596 Broadband Dipole Antenna, 850-960 MHz, 2 dBi, N-Female

    RFI COD8-8596 Broadband Dipole Antenna, 850-960 MHz, 2 dBi, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      167015354
      MPN:
      COD8-8596
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Unity Gain Broadband Dipole Antenna 850-960 MHz include low power base stations RF Control Stations applications requiring wide operating frequency

      $513.65

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

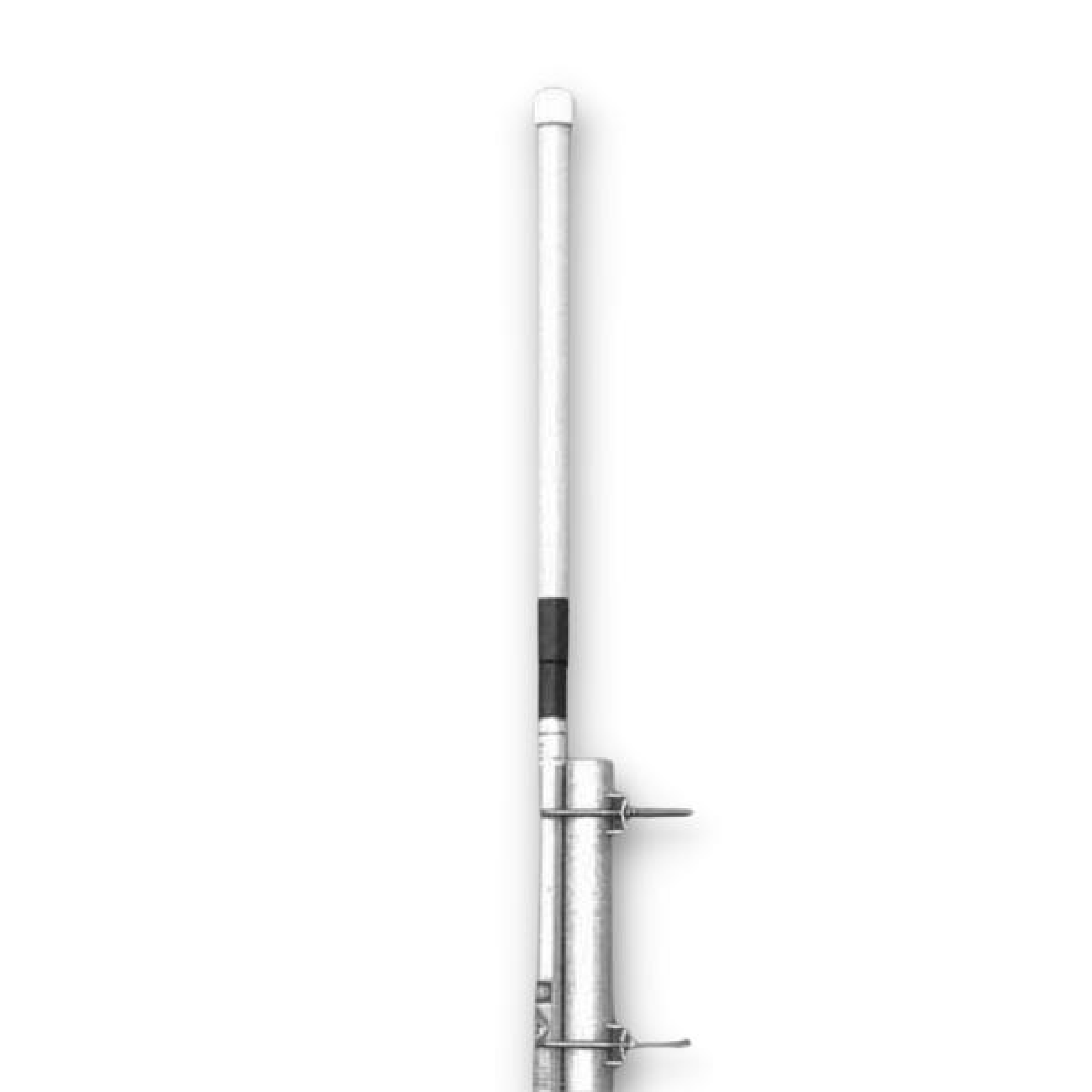

      The COD8-8596 unity gain broadband dipole antenna is designed to cover the entire 850-960 MHz frequency band. Suitable applications include low power base stations, RF Control Stations, and other applications requiring a wide operating frequency bandwidth.

      Features:

      • Available in wideband coverage, eliminating the need for spot tuned antennas
      • Excellent null fill coverage
      • Omni-directional unity gain performance

      Documents:

      RFI COD8 Antenna - Datasheet RFI COD8 Antenna - Installation Guide

      Product Specifications

      Brand RFI
      Length 80
      Width 3
      Height 3
      Antenna Application Base Station Antenna
      Antenna Features Omnidirectional
      Antenna Port Connectors N (F)
      Antenna Type Vertical Dipoles
      Construction Alodined aluminium elements with white fibreglass radome
      Coverage Type Omni-directional
      Frequency [MHz] 850-930
      Frequency Band 900 MHz, 700 MHz, 800 MHz
      Horizontal Beamwidth Omni +/- 0.5dB
      Installation Type External mounting
      Low PIM No
      Max Frequency (MHz) 960
      Max Gain (dBd/dBi) 2
      MIMO Support No
      Min Frequency (MHz) 850
      Min Gain (dBd/dBi) 2
      Mount Supported Clamp mount
      Mount Supported - Detailed UB1
      Mounting Area 315mm x 25mm diam. alodined aluminium
      No. of Antenna Ports 1
      Nominal Gain [dBi] 2
      Power [W] 100
      Technologies Supported UHF
      Termination N female bulkhead
      Torque @ 160km/h Nm 5
      Torque [Nm] 5
      Tuned Bandwidth Full
      Vertical Beamwidth 78?
      Wind Gust (km/h) >240
      Wind Load @ 160km/h N >240
      Wind Thrust 32
