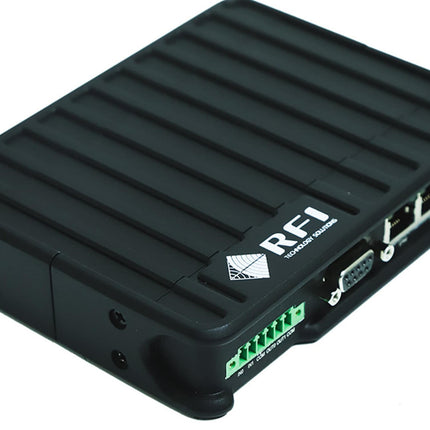

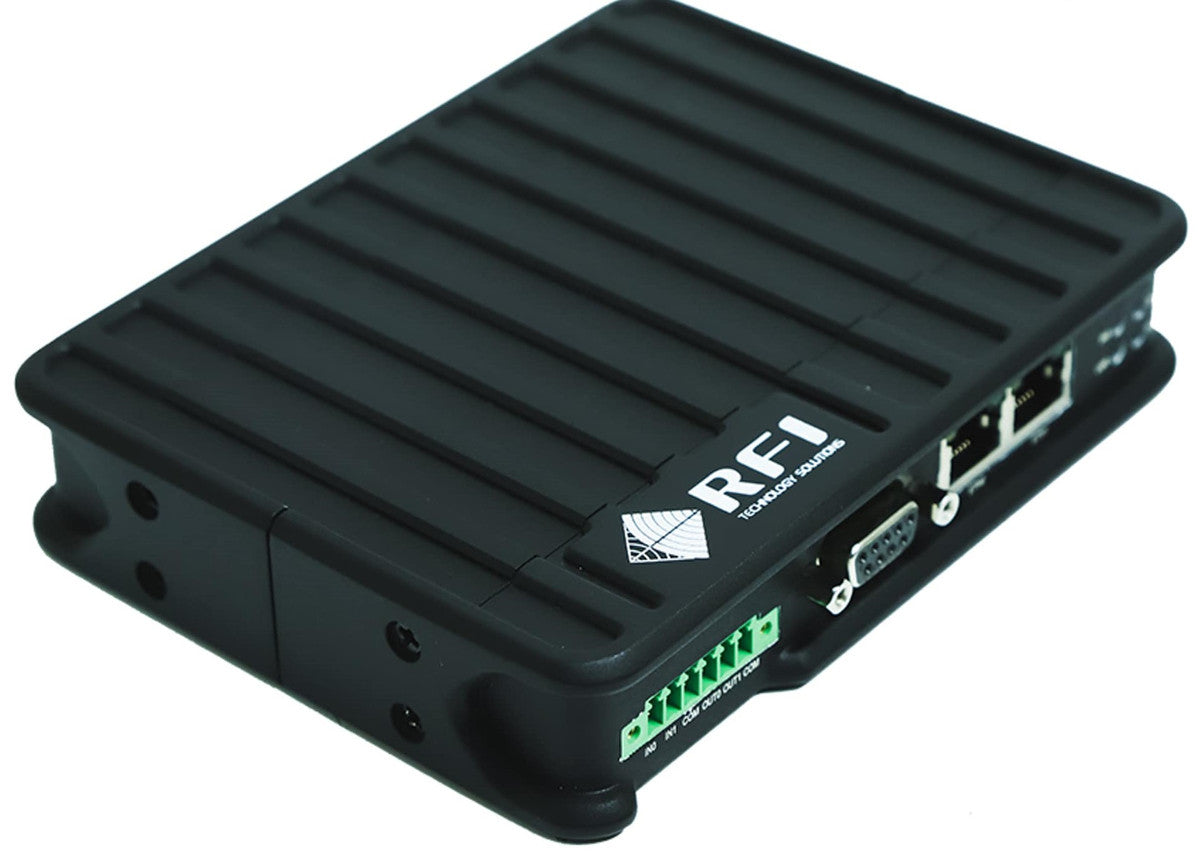

Breaking the industry benchmark, the RFI MA-2080-B Modem Router is a unique and intelligent fusion of 4G LTE capabilities with advanced functionality of a modem-router. Boasting built-in DNP3; and encased in a durable metal and plastic casing the Universal Hub has an array of industrial connectivity options, including RS232, RS485 & Ethernet ports.
Complete with SCADA functionality capabilities, the RFI MA-2080 Universal Hub can power simple to advanced M2M applications, enabling secure and two-way communications for remote monitoring, control, management and reporting. Designed for reliable field performance and functionalities, the Universal Hub allows solutions to deliver rapid, cost-effective deployment for any telemetry environments.
RFI MA-2080-B comes with the following great features:
Features:
- LTE/HSPA+ Cellular modem router
- FDD LTE Cat 6, Max 300 Mbps DL / 50Mbps UL
- DC-HSPA+ Cat24 Max 42Mbps DL/ 5.76 Mbps UL
- MIMO with carrier aggregation
- Dual SIM with configurable backup policies

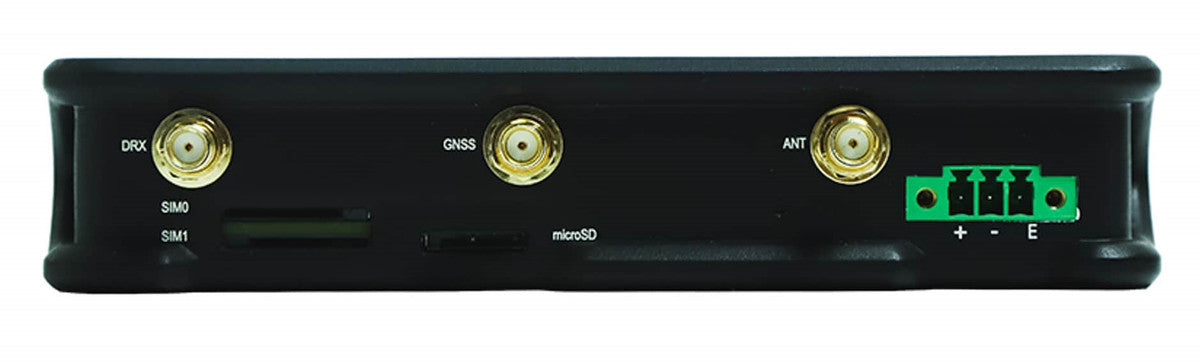

- GNSS with GPS and GLONASS

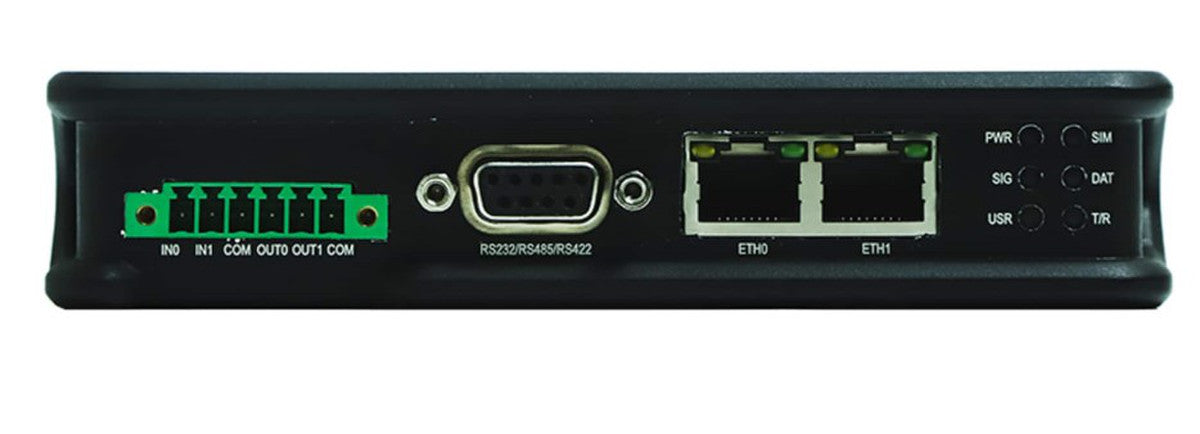

- Digital IO 2x Inputs, x 2 Outputs
- x2 ethernet ports

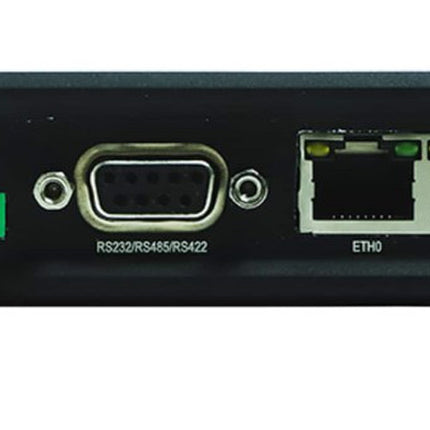

- RS232/ RS485
- Supports VPN tunnels
- Supports DNP3
- Remote Syslog
- 2 way SMS for operations and diagnostics
- email client
- FOTA
- LED indicators
- 9-48 VDC wide input power
Kit Includes:
- 1x MA-2080-B Modem
- 2x Cellular Elbow Antennas
- 1x Ethernet Cable
- 1x Serial Cable
- 1x DIN Bracket
- Optional Extras
- GPO plug pack PWR-4315UH
3G Shutdown replacement for:
- Smartmax MA-2010
- Unimax MA-2025
- Unimax 4G MA-2025-4GX
- Multimax 3G MA-2040
Note:
It is advised to contact us to discuss your application prior to transitioning from these products
Documents:
RFI MA-2080-KIT Universal Hub - Datasheet
RFI MA-2080-KIT Universal Hub - Application Note
