RFI GP2 VHF Adjustable Ground Plane Antenna, 148-174 MHz, 2 dBi

    RFI GP2 VHF Adjustable Ground Plane Antenna, 148-174 MHz, 2 dBi

      Product form

      VHF Adjustable Ground Plane 148-174MHz is ideal for local area coverage when a high gain antenna is not required or justified.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167015930
      MPN
      GP2
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $337.14

      Bulky item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay
        ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna design Design guide ACMA licensing for HF, VHF and UHF radio: class licence, CB or an assigned land mobile licence — and how each shapes your antenna designBefore you buy a two-way radio system, know which of the three ACMA paths it will run under: a class licence you never apply...Read the guide

        Product Description

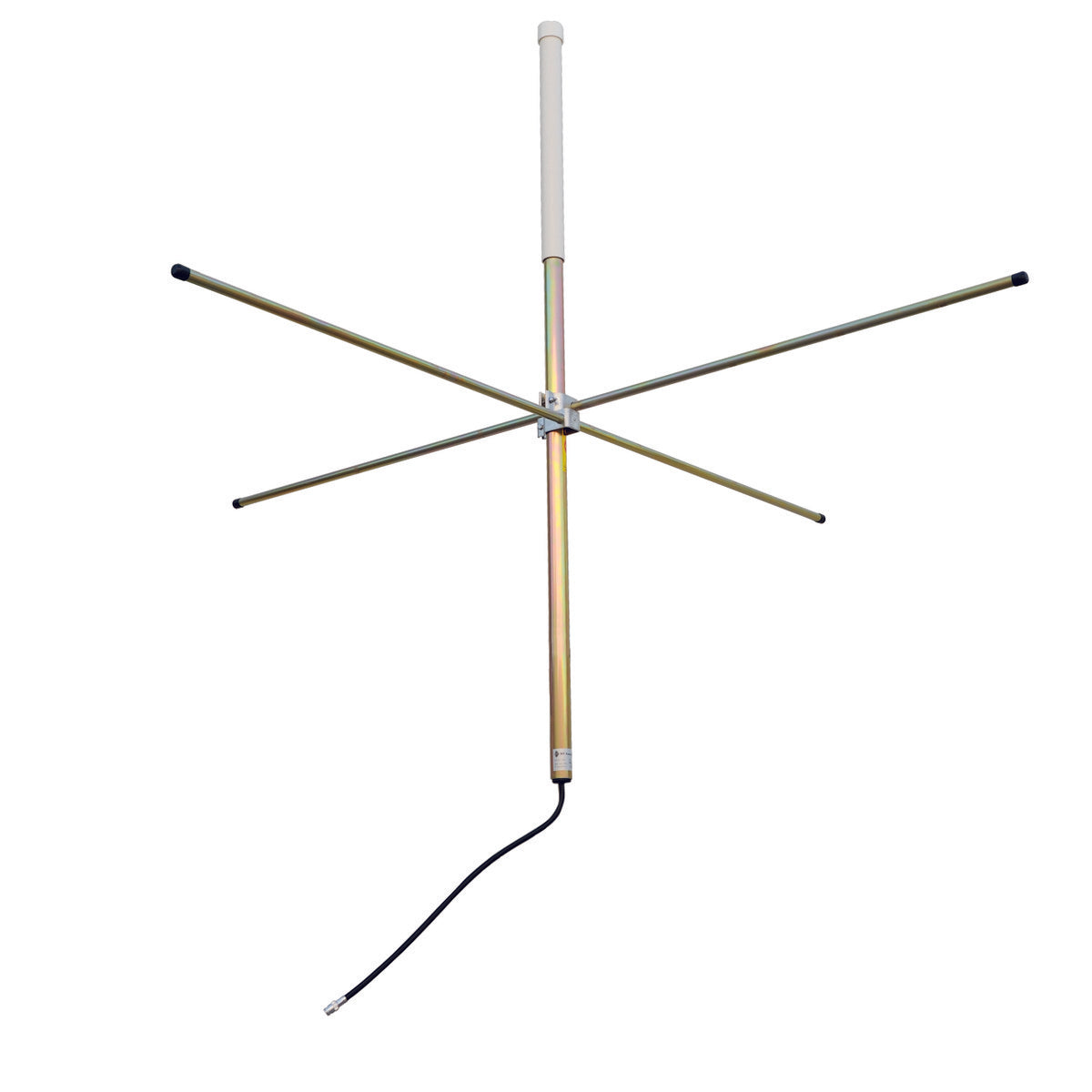

        VHF Adjustable Ground Plane 148-174 MHz

        Electrically, the GP Series antenna (GP2) is a quarter wave radiating element with the radials acting as a counterpoise. These radials are of one-piece construction and utilise a unique single bolt clamping design. The antennas are DC grounded for superior lightning protection and the reduction of precipitation static noise.

        Features:

        • Easily field tuned by adjusting the position of the radials
        • Lightweight and easy to mount
        • Broad vertical beamwidth for excellent null fill
        • Compact - Shipped disassembled for ease of handling

        Documents:

        RFI GP2 Antenna - Datasheet RFI GP2 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length (cm) 140
        Width (cm) 50
        Height (cm) 50
        Antenna Application Base Station Antenna
        Antenna Cable Type RG213
        Antenna Features Omnidirectional
        Antenna Port Connectors N (F)
        Antenna Type Ground Planes
        Cable Length (m) 0.5
        Construction Heavy duty aluminium radiating element encased in a PVC radome
        Coverage Type Omni-directional
        Frequency [MHz] 148-175
        Frequency Band VHF High Band 118-180 MHz
        Horizontal Beamwidth Omni +/-0.5dB
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 136
        Max Gain (dBd/dBi) 2
        MIMO Support No
        Min Frequency (MHz) 118
        Min Gain (dBd/dBi) 2
        Mount Supported Clamp mount
        Mount Supported - Detailed UC1, UB1
        Mounting Area 500mm x 40mm diam. aluminium
        No. of Antenna Ports 1
        Polarisation Vertical
        Power [W] 200
        Technologies Supported VHF
        Termination N female with 0.5m RG213 cable tail
        Torque [Nm] 33
        Tuned Bandwidth 15MHz
        Vertical Beamwidth 75?
        VSWR <1.5:1
        Wind Thrust 148
