RFI COL17 VHF Collinear Antenna, 144-175 MHz, 3 dBd - Custom Tuned

    RFI COL17 VHF Collinear Antenna, 144-175 MHz, 3 dBd - Custom Tuned

      Product form
      Brand:
      RFI
      Item ID:
      167015740
      MPN:
      COL17
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      VHF Collinear 144-175 MHz Custom Tuned - 3 dBd - 3.2 kg have been specifically designed to maintain stable vertical radiation pattern characteristics

      $669.34

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

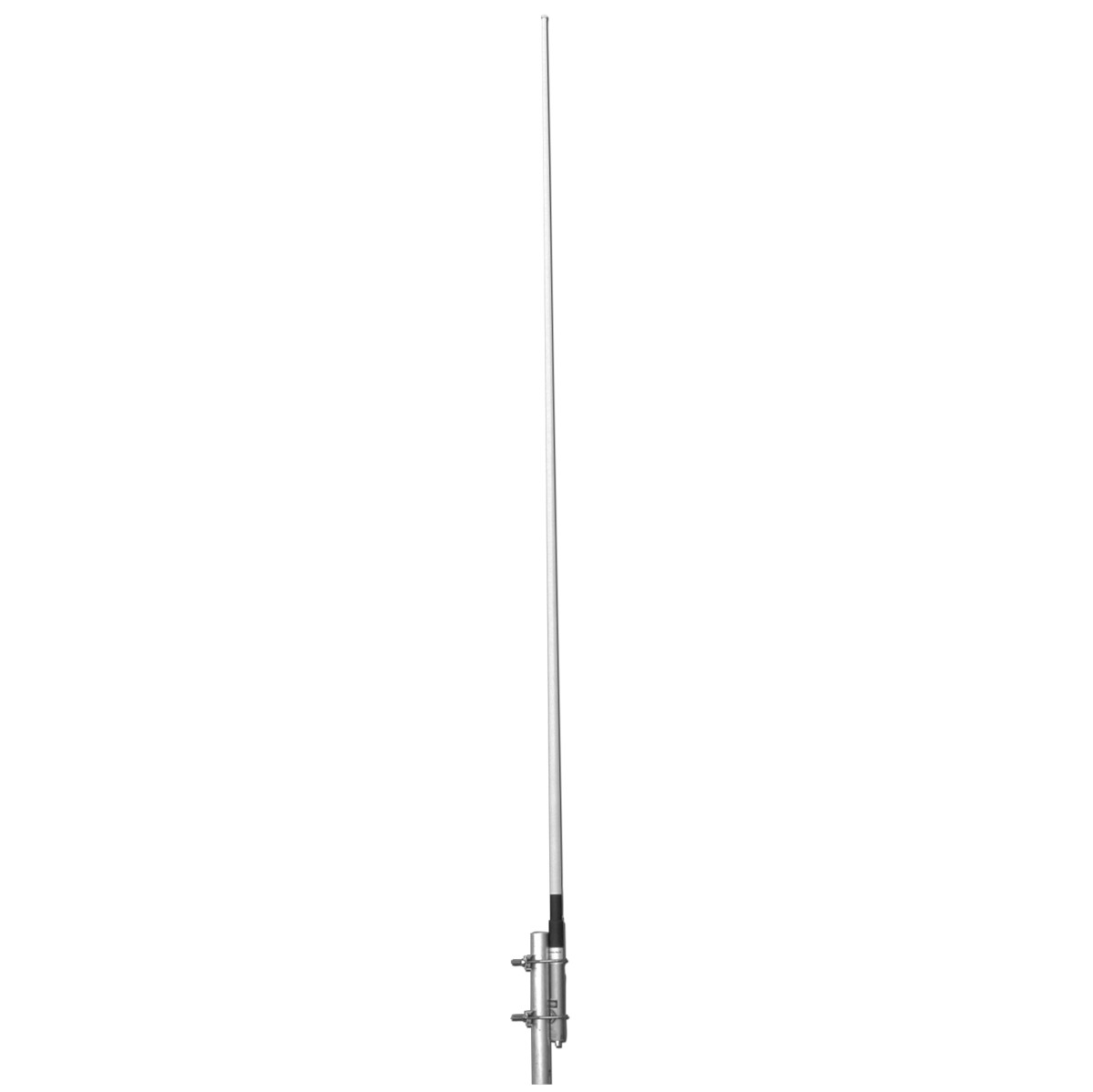

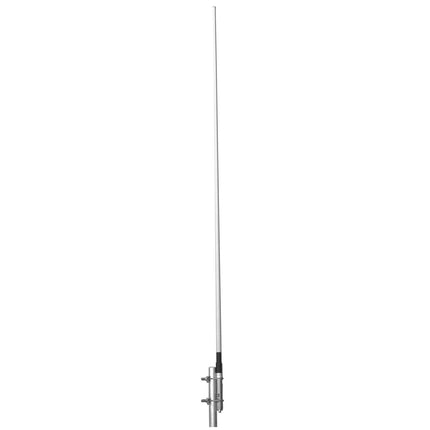

      The COL17 is suited for broadband and duplex applications designed to cater for transmit to receive separations of up to 5.0 MHz. The antenna is a series fed collinear which is housed in a heavy duty tapered fibreglass radome, fitted to a ruggedised alodined aluminium mounting tube. The COL17 (and the electrically identical COL3) have been specifically designed to maintain stable vertical radiation pattern characteristics at the extremities of the tuned bandwidth, ensuring reciprocity of transmit and receive signal.

      Documents:

      RFI COL17 Antenna - Datasheet

      Product Specifications

      Brand RFI
      Length 99
      Width 3
      Height 3
      Antenna Application Base Station Antenna
      Antenna Port Connectors N (F)
      Antenna Type Collinears
      Construction Alodined aluminium elements with white fibreglass radome
      Coverage Type Omni-directional
      Frequency [MHz] 144-175
      Frequency Band VHF High Band 118-180 MHz
      Horizontal Beamwidth Omni +/- 0.5dB
      Installation Type External mounting
      Low PIM No
      Max Frequency (MHz) 175
      Max Gain (dBd/dBi) 5
      MIMO Support No
      Min Frequency (MHz) 144
      Min Gain (dBd/dBi) 5
      Mount Supported Clamp mount
      Mount Supported - Detailed UC1
      Mounting Area 500mm x 40mm diam. alodined aluminium
      No. of Antenna Ports 1
      Polarisation Vertical
      Power [W] 200
      Technologies Supported VHF
      Termination N female bulkhead. For COL17 see note (1)
      Torque [Nm] 146
      Tuned Bandwidth 0.04
      Vertical Beamwidth 38?
      VSWR 240
      Wind Thrust 137
