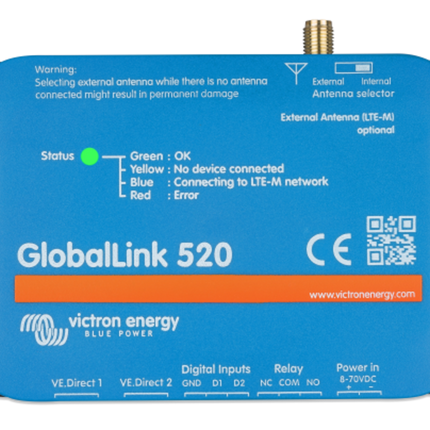

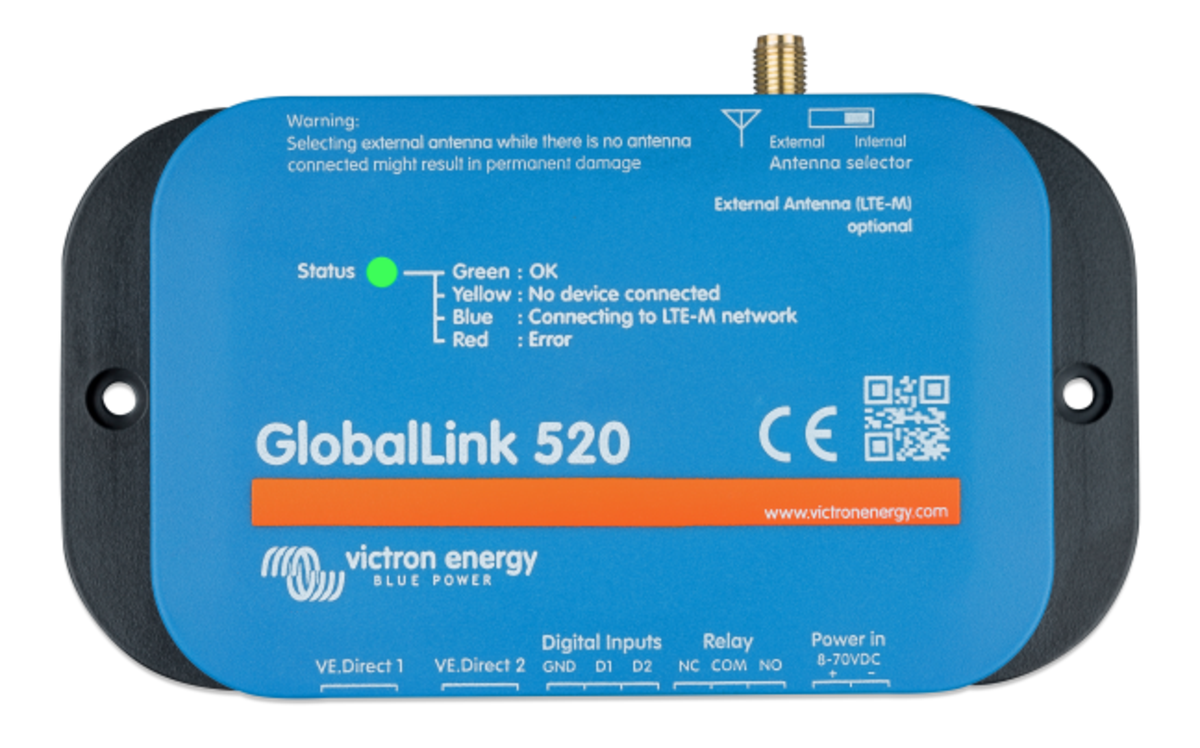

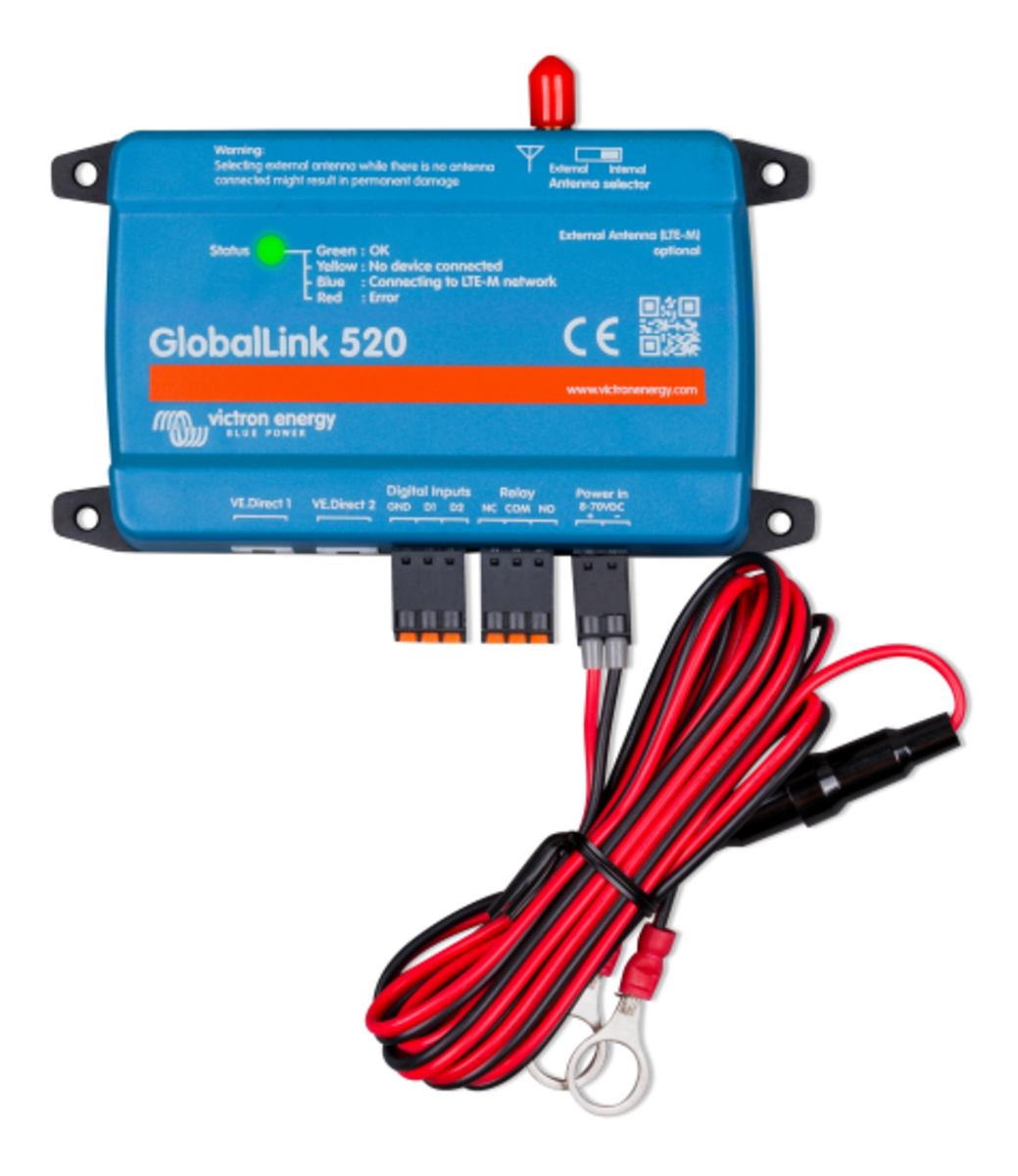

Victron ASS030543020 GlobalLink 520 is a 4G LTE-M modem designed to provide remote monitoring and control for VE.Direct devices via the Victron Remote Management (VRM) portal. Ideal for off-grid installations, it ensures uninterrupted connectivity without monthly fees or subscriptions for the first five years.

Product Features:

• Global Connectivity with 4G LTE-M: Connects Internet of Things devices to existing 4G towers using low energy. Supports handovers and roaming, making it suitable for use in moving vehicles like campervans. Includes 5 years of connectivity, eliminating the need for separate data bundles and SIM cards.
• System Monitoring & Control: Equipped with two communication ports for connecting up to two VE.Direct devices (e.g., BMV Battery Monitor, MPPT Solar Regulator) directly to VRM. Features two digital inputs that act as pulse counters and a remote controllable relay for comprehensive monitoring and control.

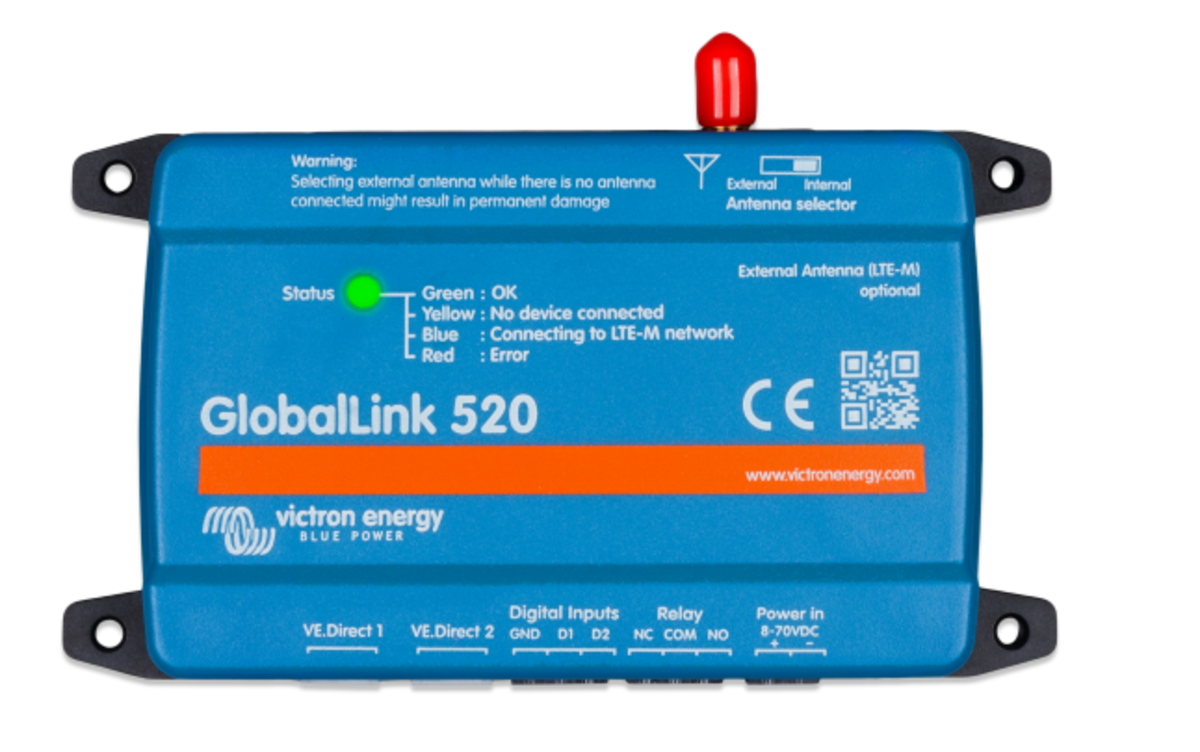

• Built-in Antenna: Comes with a built-in antenna designed for global use. An external antenna can be mounted for better reception or specific installations, such as in utility vans.
• Victron Remote Management (VRM): Provides online access to your installation from anywhere. Allows you to check the status of connected products, view detailed history graphs, generate analytical reports, and configure automatic alarms.

Application Areas:

• Off-grid solar and energy storage systems.
• Remote monitoring of battery systems and solar regulators.
• Marine and mobile power applications.
• Industrial and commercial energy monitoring solutions.

In the Box:

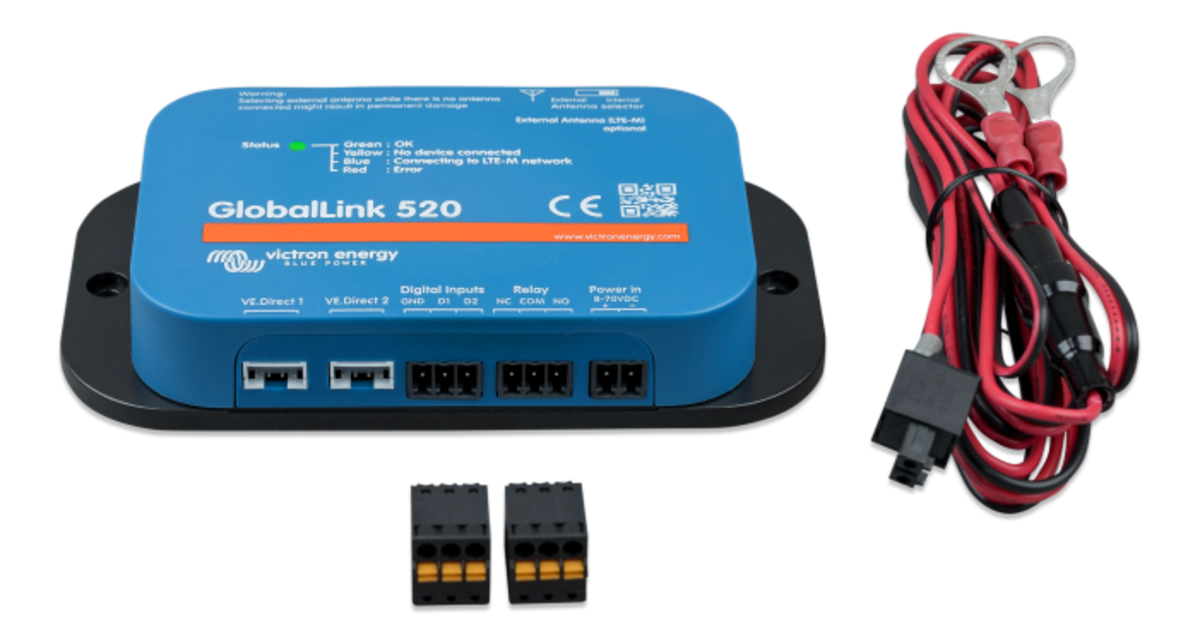

• 1 x Victron GlobalLink 520 - 4G LTE VE-Direct Modem

Documents:

Victron GlobalLink 520 - Datasheet Victron GlobalLink 520 - Manual

Videos:

Victron GlobalLink 520
